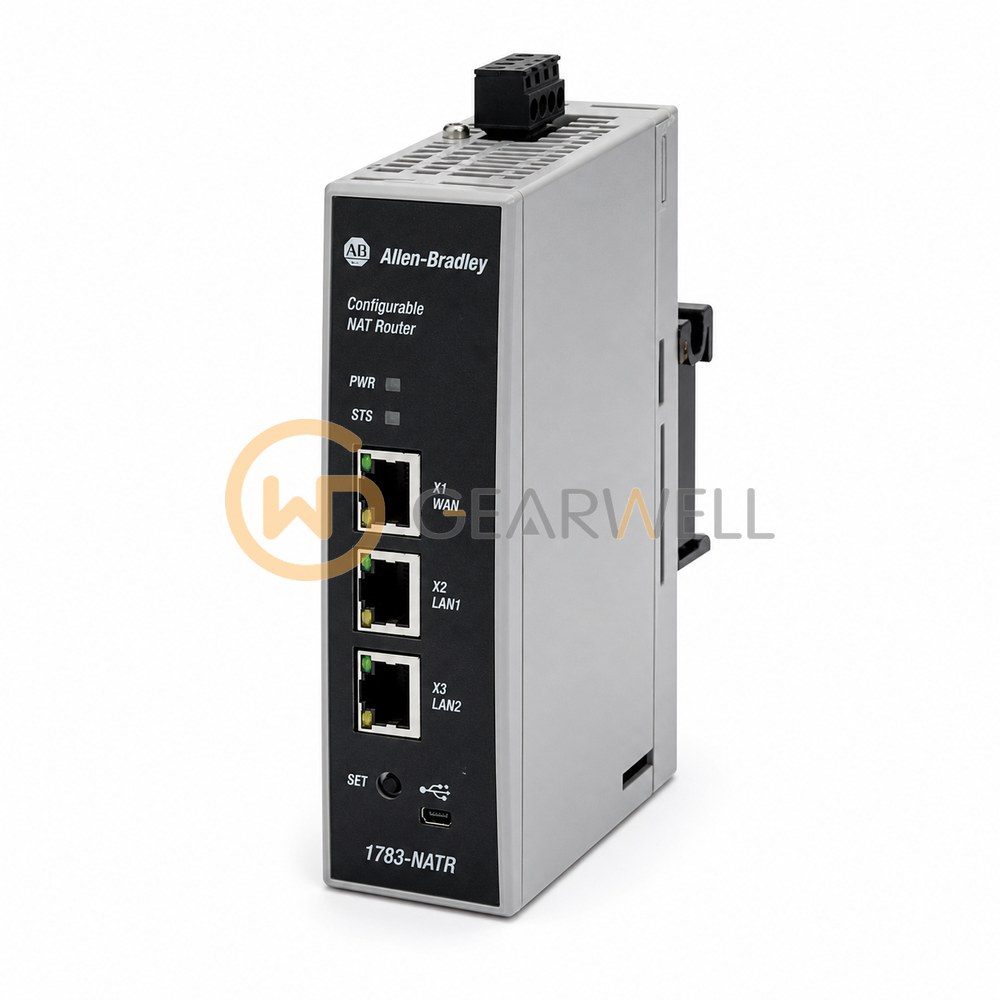

Allen-Bradley 1783-NATR Configurable NAT Router
- Brand
- Allen-Bradley
- Model
- 1783-NATR
- GEARWELL SKU
- GWP-000003340
- Category
- Industrial Communication
Key specifications
- Depth
- 104.9 mm
- Width
- 35.05 mm
- Overall height
- 131.57 mm (5.18 in.)
- Network
- Ethernet
- Mounting
- DIN rail or panel; vertical only
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1783-NATR is a Stratix configurable NAT router. It runs on 20.4…27.6V DC at 150 mA, consumes 3 W max, is rated for -25…+70 °C and is ODVA conformance tested for EtherNet/IP. It is UL Listed for Class I, Division 2 hazardous locations and certified to ATEX and IECEx (Ex nA IIC T4 Gc).
Technical reference
| Product name | Allen-Bradley 1783-NATR Configurable NAT Router |
|---|---|
| Brand | Allen-Bradley |
| Model | 1783-NATR |
| Category | Industrial Communication |
| Depth | 104.9 mm |
| Width | 35.05 mm |
| Overall height | 131.57 mm (5.18 in.) |
| Network | Ethernet |
| Mounting | DIN rail or panel; vertical only |
| Ethernet interfaces | 3 copper RJ45 ports: 1 public and 2 private |
| DC power supply | 24 V DC nominal; 20.4...27.6 V DC |
| Operating temperature | -25...+70 °C |
| Maximum power consumption | 3 W |
