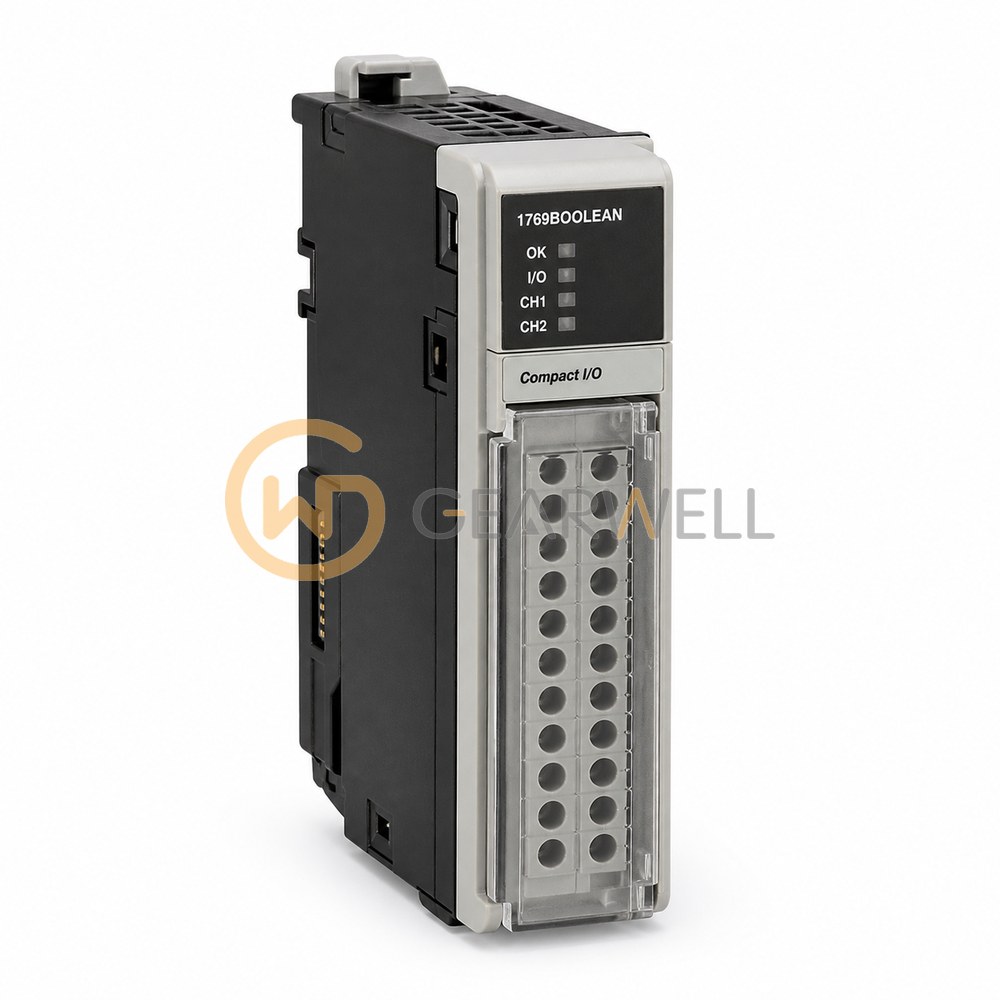

Allen-Bradley 1769-BOOLEAN Compact I/O Boolean Control Module - 8 Inputs / 4 Outputs
- Brand
- Allen-Bradley
- Model
- 1769BOOLEAN
- GEARWELL SKU
- GWP-000003833
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 118 mm; 138 mm including mounting tabs
- Isolation test and working voltage
- 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage
- Operating input voltage
- 10-30 V DC at 30 deg C; 10-26 V DC at 60 deg C
- Operating output voltage
- 20.4-26.4 V DC, sourcing
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-BOOLEAN is a Compact I/O Boolean control module that combines 8 sinking 24V DC inputs (10…26V DC at 60 °C) and 4 sourcing 24V DC outputs (20.4…26.4V DC), with selectable input filters from 0 s to 8 ms. It has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-BOOLEAN Compact I/O Boolean Control Module - 8 Inputs / 4 Outputs |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769BOOLEAN |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 118 mm; 138 mm including mounting tabs |
| Isolation test and working voltage | 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage |
| Operating input voltage | 10-30 V DC at 30 deg C; 10-26 V DC at 60 deg C |
| Operating output voltage | 20.4-26.4 V DC, sourcing |
| Configurable operators | OR, AND, XOR or none |
| Maximum heat dissipation | 3.55 W |
| Physical and virtual I/O | 8 physical inputs + 8 virtual inputs; 4 physical sourcing outputs |
| Closed-loop response | 100 us at output current >=5 mA; 150 us below 5 mA |
| Power supply distance rating | 8 modules |
