Allen-Bradley 1769-ASCII Compact I/O 2-Channel RS-232 RS-422 RS-485 ASCII Module
- Brand
- Allen-Bradley
- Model
- 1769ASCII
- GEARWELL SKU
- GWP-000001912
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Serial connectors
- 2 male DB9
- Duplex modes
- RS-232/RS-422 full duplex; RS-485 half duplex
- Maximum bus current draw
- 425 mA at 5.1 V DC; 0 mA at 24 V DC
- Product type
- Compact I/O ASCII interface module
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

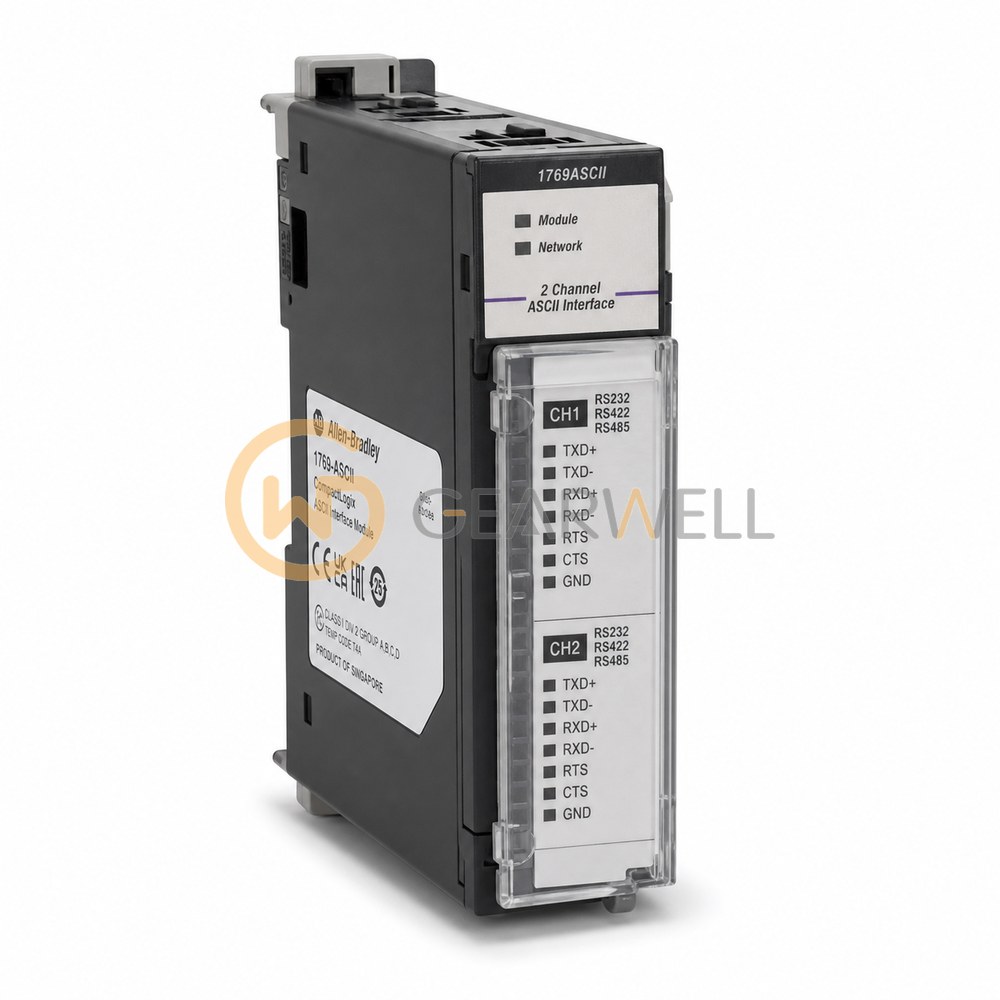

The Allen-Bradley 1769-ASCII is a Compact I/O ASCII module that connects RS-232, RS-485 and RS-422 ASCII devices, with 2 full-duplex channels (RS-232, RS-422) or 2 half-duplex channels (RS-485). It draws 425 mA at 5.1V from the bus and has a power supply distance rating of 4 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-ASCII Compact I/O 2-Channel RS-232 RS-422 RS-485 ASCII Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769ASCII |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Serial connectors | 2 male DB9 |
| Duplex modes | RS-232/RS-422 full duplex; RS-485 half duplex |
| Maximum bus current draw | 425 mA at 5.1 V DC; 0 mA at 24 V DC |
| Product type | Compact I/O ASCII interface module |
| Maximum heat dissipation | 2.13 W |
| Manufacturer catalog lifecycle (checked 2026-10-07) | Active mature |
| Communication channels | 2 |
| Serial interfaces | RS-232, RS-422 and RS-485 ASCII |
| Power supply distance rating | 4 modules |
