Allen-Bradley 1756-SYNCH ControlLogix SynchLink Communication Module
- Brand
- Allen-Bradley
- Model
- 1756SYNCH
- GEARWELL SKU
- GWP-000000016
- Category
- PLCs & I/O
Key specifications
- Data rate
- 5 Mbps
- Cable length
- 1 to 300 m
- Frame period
- 50 µs
- Backplane current
- 1.2 A at 5.1 V DC; 3 mA at 24 V DC
- Product type
- ControlLogix SynchLink Communication Module
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

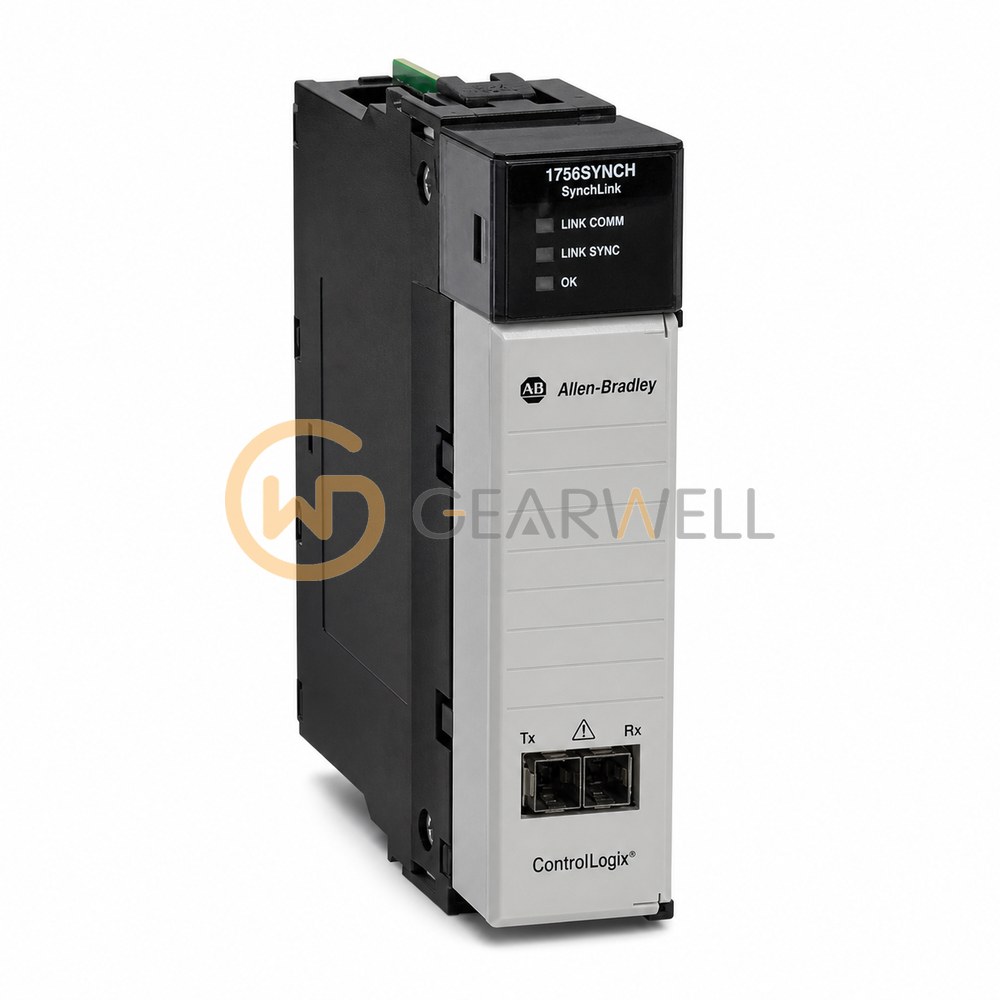

The Allen-Bradley 1756-SYNCH is a SynchLink fiber-optic module from Rockwell's ControlLogix 1756 range. It connects a ControlLogix chassis to a SynchLink fiber-optic link at 5 Mbps for time synchronization and data broadcasting in distributed motion and coordinated drive control: it coordinates system time across chassis, moves a limited amount of data between chassis at high speed and lets one controller consume motion axis data from a controller in another chassis. It has 2 fiber-optic ports for 200/230 micron HCS cable with Versalink V-System termination, 1…300 m long, and draws 1200 mA at 5.1 V DC. It installs in any slot of a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-SYNCH ControlLogix SynchLink Communication Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756SYNCH |
| Category | PLCs & I/O |
| Data rate | 5 Mbps |
| Cable length | 1 to 300 m |
| Frame period | 50 µs |
| Backplane current | 1.2 A at 5.1 V DC; 3 mA at 24 V DC |
| Product type | ControlLogix SynchLink Communication Module |
| Network | SynchLink |
| Manufacturer lifecycle | Active |
| Fiber-optic ports | 2 |
| Product description | Allen-Bradley 1756SYNCH ControlLogix SynchLink Communication Module. A 5 Mbps fiber-optic SynchLink interface. It synchronizes coordinated system time and broadcasts data between ControlLogix chassis for distributed motion and drive control. |
