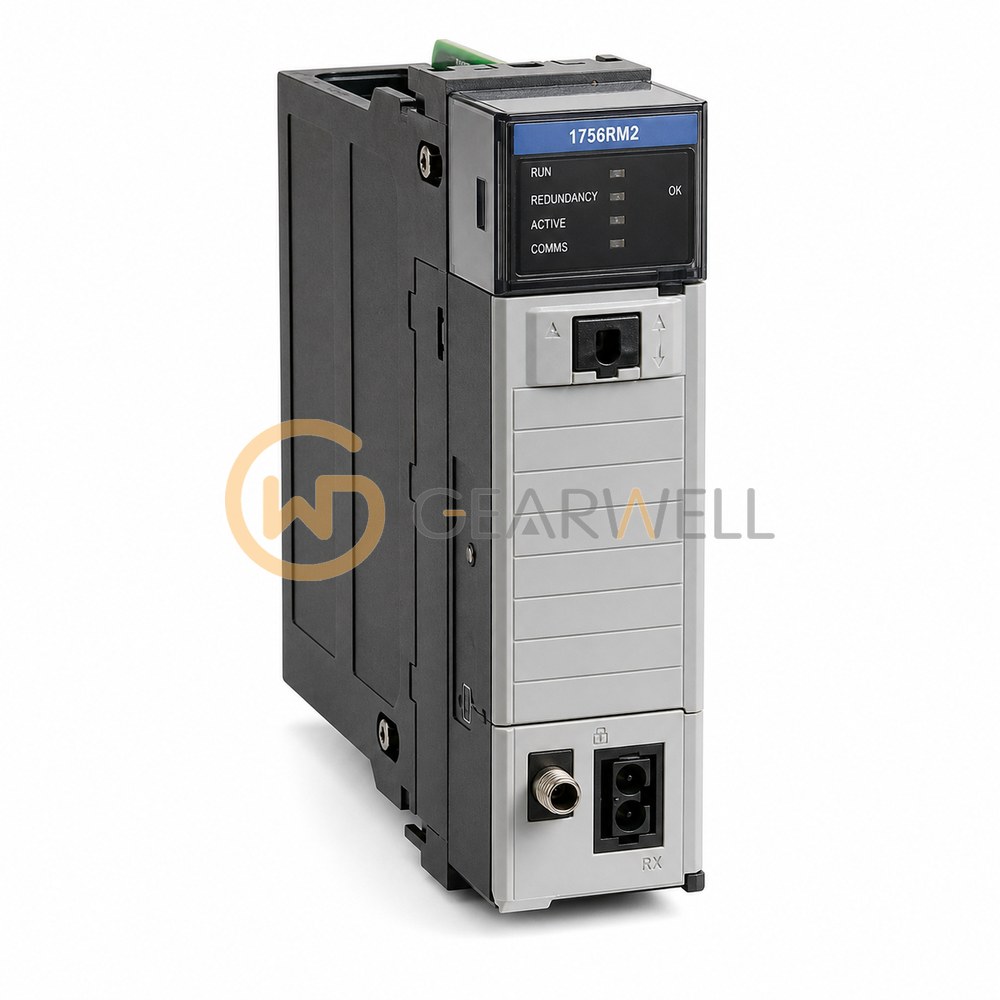

Allen-Bradley 1756-RM2 ControlLogix Enhanced Redundancy Module
- Brand
- Allen-Bradley
- Model
- 1756RM2
- GEARWELL SKU
- GWP-000004411
- Category
- PLCs & I/O
Key specifications
- Redundancy link medium
- Fiber optic
- Backplane current
- 1.16 A at 5.1 V DC; 3.4 mA at 24 V DC
- Chassis width
- 1 slot
- Redundancy link rate
- 1000 Mbit/s
- Redundancy cables
- 1756-RMC1, 1756-RMC3, 1756-RMC10
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-RM2 is a redundancy module for ControlLogix 5570 and 5580 from Rockwell's ControlLogix 1756 range. It is a single-slot redundancy module for ControlLogix 5570 and 5580 controllers, connected with 1756-RMC1, 1756-RMC3 or 1756-RMC10 cables (1, 3 or 10 m). A pair of redundancy modules with the same catalog number links the two chassis of a redundant controller pair; they monitor events in each chassis and start system responses as required. It installs in a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-RM2 ControlLogix Enhanced Redundancy Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756RM2 |
| Category | PLCs & I/O |
| Redundancy link medium | Fiber optic |
| Backplane current | 1.16 A at 5.1 V DC; 3.4 mA at 24 V DC |
| Chassis width | 1 slot |
| Redundancy link rate | 1000 Mbit/s |
| Redundancy cables | 1756-RMC1, 1756-RMC3, 1756-RMC10 |
| Number of redundancy channels | 2 |
| Maximum power dissipation | 6 W |
| Supported controller families | ControlLogix 5570 and 5580 |
