Allen-Bradley 1756-PC75 ControlLogix DC Power Supply
- Brand
- Allen-Bradley
- Model
- 1756PC75
- GEARWELL SKU
- GWP-000001906
- Category
- PLCs & I/O
Key specifications
- Nominal input voltage
- 48 V DC
- Dimensions H x W x D (approx.)
- 140 x 112 x 145 mm
- Power supply connection
- Direct chassis backplane connection; no redundant-supply cable required
- Maximum combined backplane output
- 75 W at 0-60 deg C; sum of all output rails must not exceed 75 W
- Input voltage range
- 30-60 V DC; 48 V DC nominal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

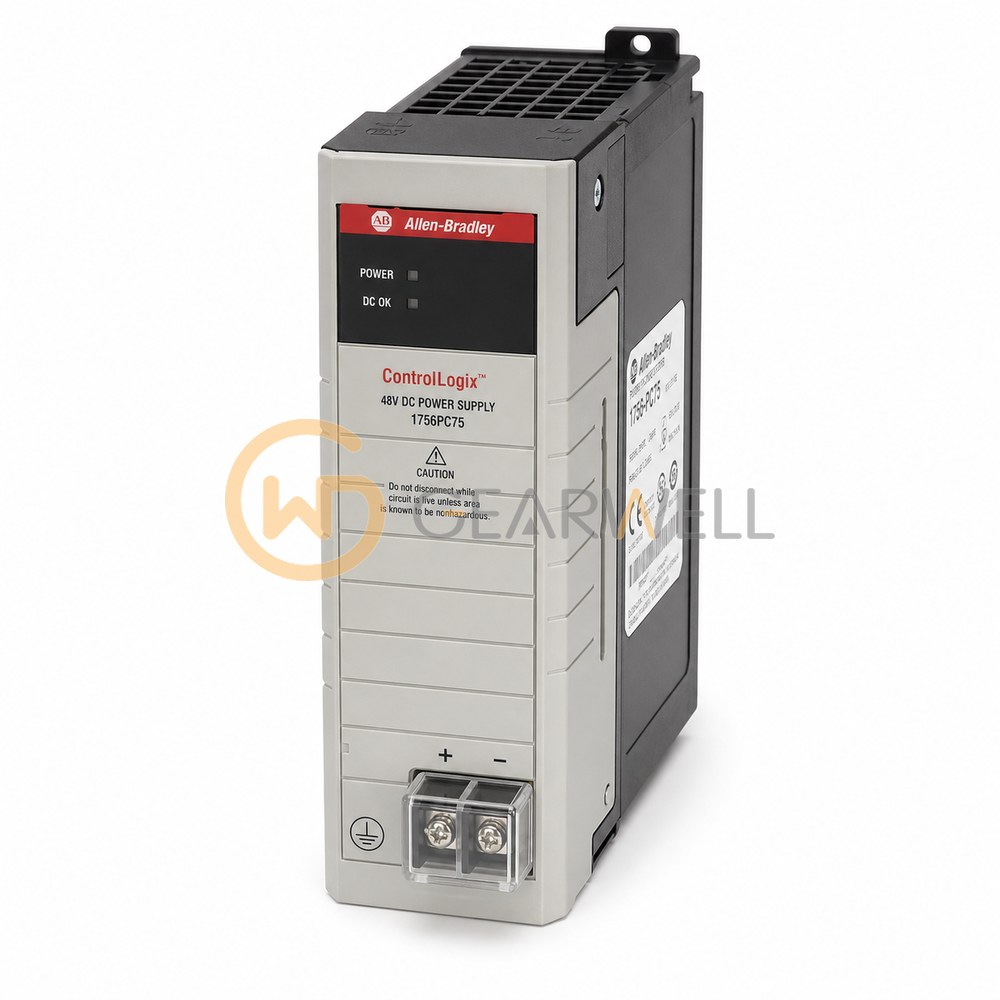

The Allen-Bradley 1756-PC75 is a standard DC power supply from Rockwell's ControlLogix 1756 range. It takes 30…60 V DC (48 V DC nominal) and delivers up to 75 W at 0…60 °C (32…140 °F) to the backplane: 13 A at 5.1 V DC, 4 A at 3.3 V DC, 1.5 A at 1.2 V DC and 2.8 A at 24 V DC. Hold-up time is 50 ms at nominal input. It measures 14.0 x 11.2 x 14.5 cm (H x W x D) and weighs about 0.95 kg. It mounts on the left side of a 1756 ControlLogix chassis (1756-A4, 1756-A7, 1756-A10, 1756-A13 or 1756-A17).
Technical reference
| Product name | Allen-Bradley 1756-PC75 ControlLogix DC Power Supply |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756PC75 |
| Category | PLCs & I/O |
| Nominal input voltage | 48 V DC |
| Dimensions H x W x D (approx.) | 140 x 112 x 145 mm |
| Power supply connection | Direct chassis backplane connection; no redundant-supply cable required |
| Maximum combined backplane output | 75 W at 0-60 deg C; sum of all output rails must not exceed 75 W |
| Input voltage range | 30-60 V DC; 48 V DC nominal |
| Power supply configuration | Non-redundant chassis power supply |
| Compatible standard chassis series | B or C; check chassis catalog number |
| Backplane output rail limits | 1.2 V DC: 1.5 A; 3.3 V DC: 4 A; 5.1 V DC: 13 A; 24 V DC: 2.8 A. Combined output: 75 W maximum. |
