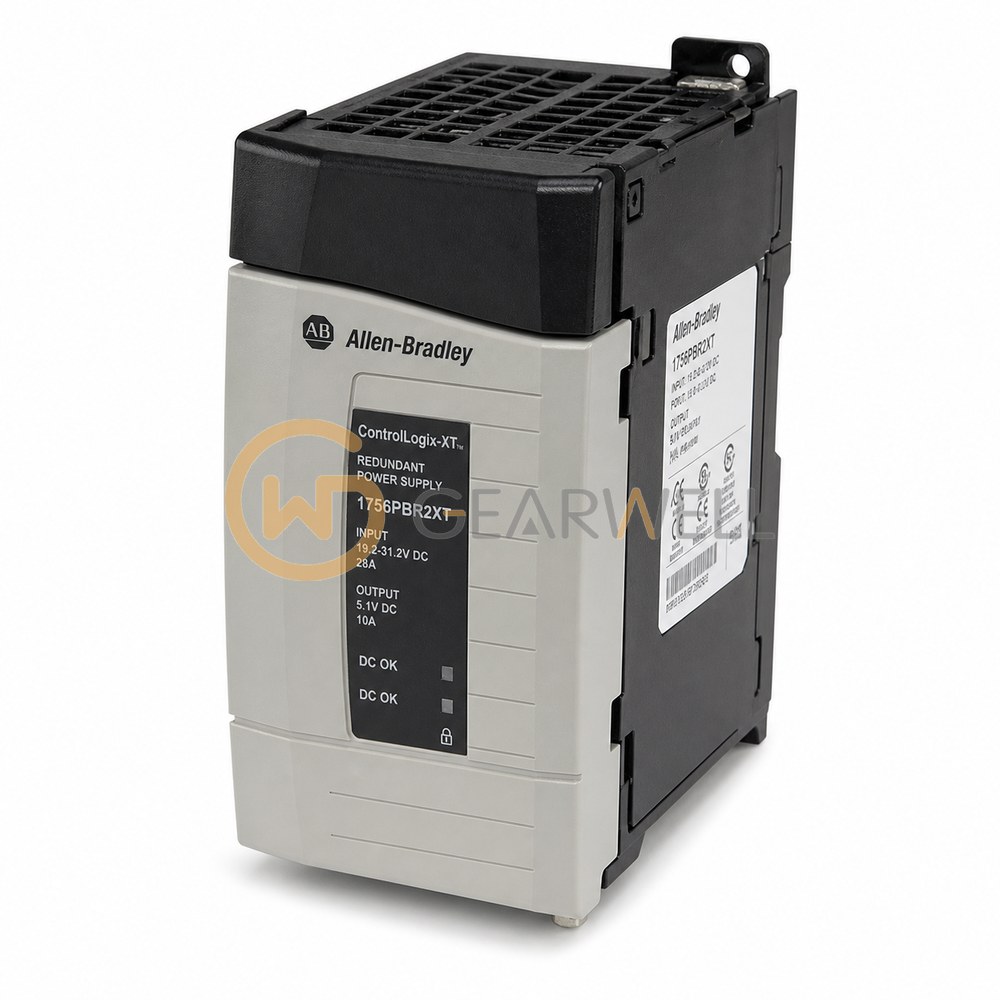

Allen-Bradley 1756-PBR2XT ControlLogix-XT Redundant DC Power Supply Bundle
- Brand
- Allen-Bradley
- Model
- 1756PBR2XT
- GEARWELL SKU
- GWP-000001262
- Category
- PLCs & I/O
Key specifications
- Application
- Redundant DC power for a ControlLogix chassis
- Product type
- ControlLogix-XT redundant DC power supply bundle
- Product family
- Allen-Bradley ControlLogix 1756
- Manufacturer-listed bundle contents
- 2 x 1756-PBXTR power supplies, 2 x 1756-CPR2 cables, 1 x 1756-PSCA2 chassis adapter
- Input voltage range
- 18-32 V DC; 24 V DC nominal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 1756-PBR2XT ControlLogix-XT Redundant DC Power Supply Bundle |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756PBR2XT |
| Category | PLCs & I/O |
| Application | Redundant DC power for a ControlLogix chassis |
| Product type | ControlLogix-XT redundant DC power supply bundle |
| Product family | Allen-Bradley ControlLogix 1756 |
| Manufacturer-listed bundle contents | 2 x 1756-PBXTR power supplies, 2 x 1756-CPR2 cables, 1 x 1756-PSCA2 chassis adapter |
| Input voltage range | 18-32 V DC; 24 V DC nominal |
| Manufacturer catalog number | 1756-PBR2XT |
| Documented system connection | ControlLogix standard chassis series B or C, through the listed 1756-PSCA2 adapter; system limits follow the lowest-rated component |
| Maximum output per 1756-PBXTR supply | 52 W; redundant supply ratings are not additive |
| System temperature limit | Limited by the lowest-rated installed component; an XT power supply does not establish the temperature rating of the whole bundle |
