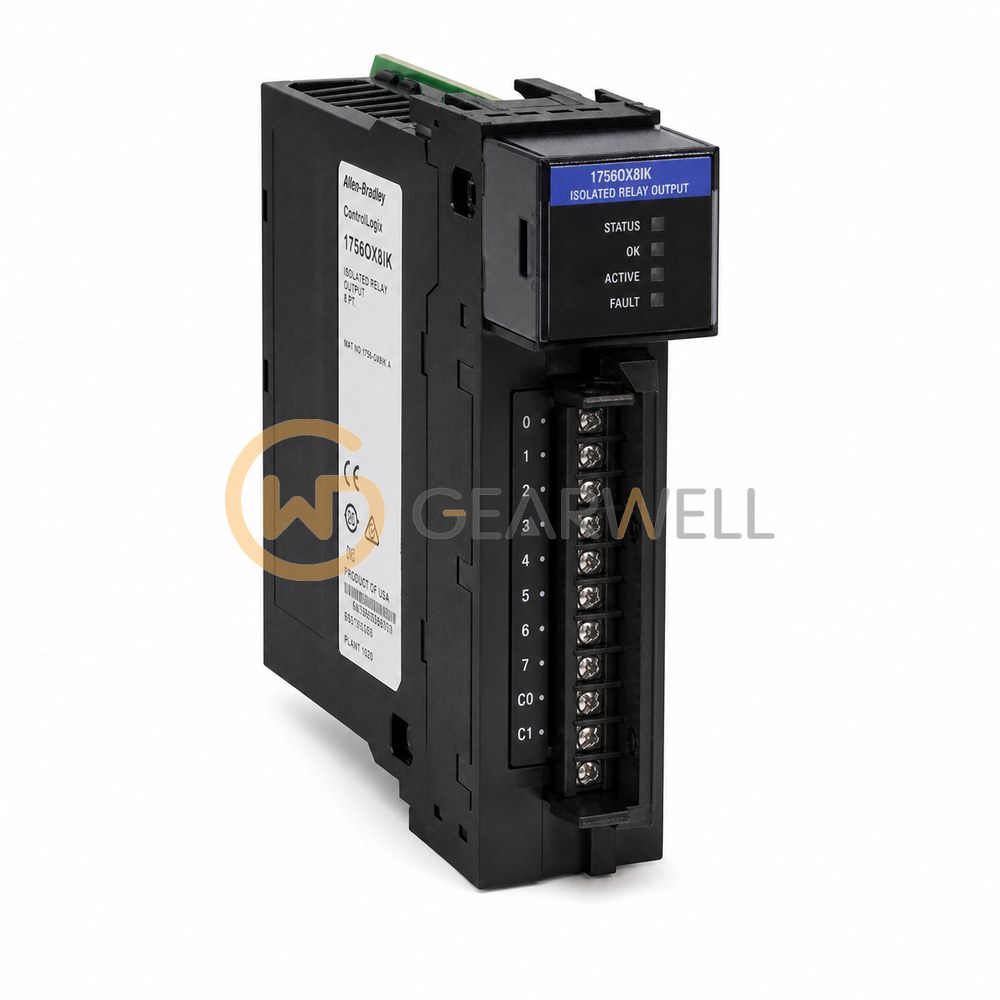

Allen-Bradley 1756OX8IK ControlLogix Conformally Coated 8-Point Isolated Relay Output Module
- Brand
- Allen-Bradley
- Model
- 1756OX8IK
- GEARWELL SKU
- GWP-000001704
- Category
- PLCs & I/O
Key specifications
- Outputs
- 8 N.O. and 8 N.C., individually isolated
- Output delay
- 13 ms max
- Product type
- ControlLogix isolated contact output module
- Enclosure type
- None (open-style)
- AC contact rating
- 1.5 A at 120 V; 0.75 A at 240 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-OX8IK is a ControlLogix AC (10…240V) DC (5…125V) isolated contact module for the 1756 chassis. It has eight normally closed, individually isolated relay contacts, two points per group, for loads of 10…240V AC or 5…125V DC (1 A at 5…30V DC, 0.5 A at 48V DC). It draws 100 mA at 5.1V DC and 100 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756OX8IK ControlLogix Conformally Coated 8-Point Isolated Relay Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756OX8IK |
| Category | PLCs & I/O |
| Outputs | 8 N.O. and 8 N.C., individually isolated |
| Output delay | 13 ms max |
| Product type | ControlLogix isolated contact output module |
| Enclosure type | None (open-style) |
| AC contact rating | 1.5 A at 120 V; 0.75 A at 240 V |
| DC contact rating | 1 A at 5...30 V; 0.5 A at 48 V; 0.22 A at 125 V |
| AC operating voltage range | 10...240 V AC |
| DC operating voltage range | 5...125 V DC |
