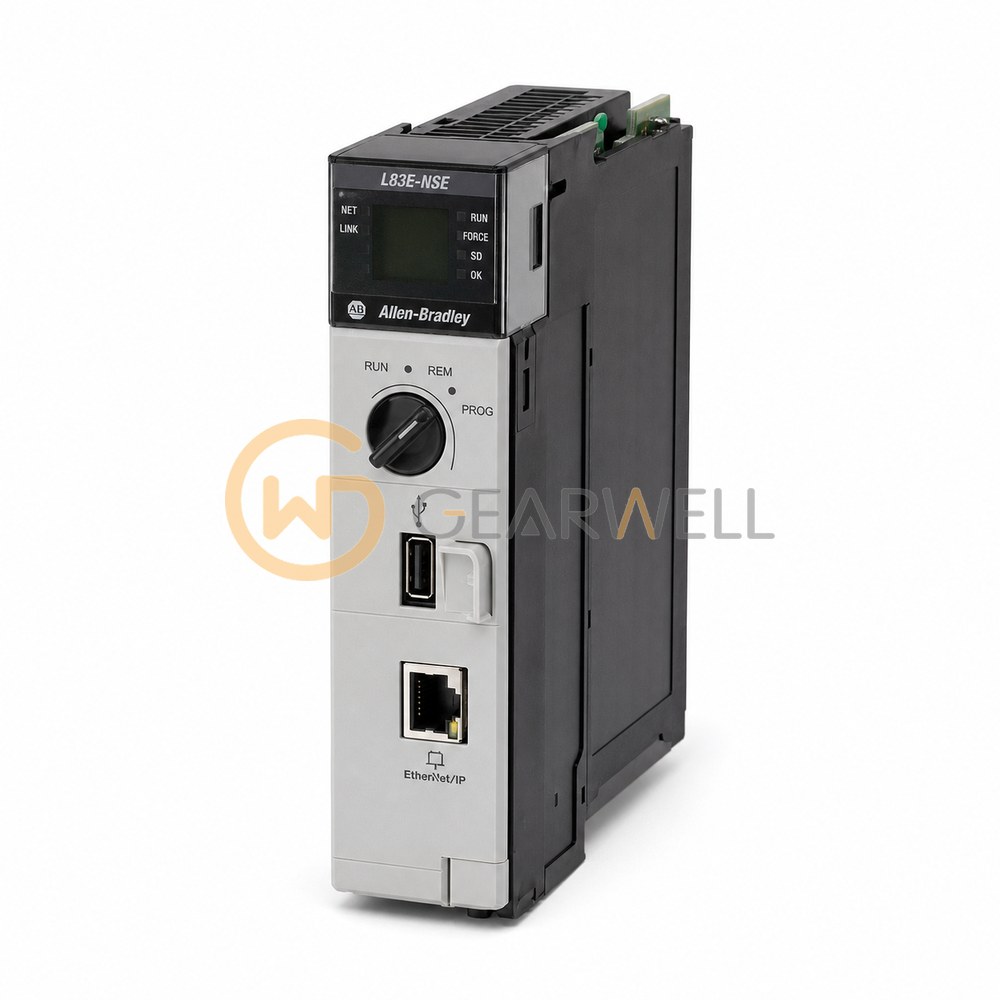

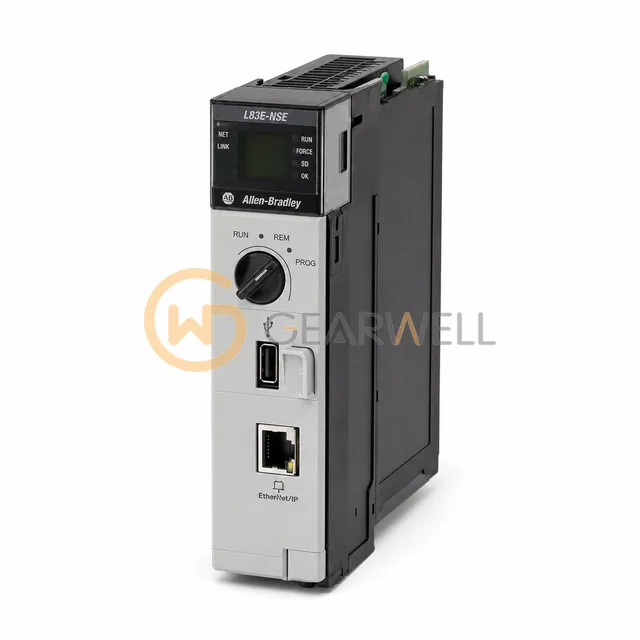

Allen-Bradley 1756-L83E-NSE ControlLogix 5580 NSE Controller
- Brand
- Allen-Bradley
- Model
- 1756L83ENSE
- GEARWELL SKU
- GWP-000001145
- Category
- PLCs & I/O
Key specifications
- Product type
- ControlLogix 5580 NSE Controller
- Analog I/O maximum
- 4,000
- Local programming port
- 1 USB 2.0; temporary local programming only, not permanent or hazardous-location use
- Digital I/O maximum
- 128,000
- Standard memory
- 10 MB
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-L83E-NSE is a ControlLogix 5580 No Stored Energy (NSE) controller from Rockwell's ControlLogix 1756 range. It is the No Stored Energy version of the 1756-L83E, for applications where the installed controller must deplete its residual stored energy to specific levels before it is transported into or out of the application. It has 10 MB of standard memory and conformal coating. It has an embedded 10/100/1000 Mbps EtherNet/IP port and a USB 2.0 port for programming, 32 tasks with up to 1000 programs per task, up to 128,000 digital or 4000 analog I/O, and a 4 GB SD card (1784-SD4) installed at the factory. It supports Integrated Motion on EtherNet/IP and controller redundancy. It installs in a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-L83E-NSE ControlLogix 5580 NSE Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756L83ENSE |
| Category | PLCs & I/O |
| Product type | ControlLogix 5580 NSE Controller |
| Analog I/O maximum | 4,000 |
| Local programming port | 1 USB 2.0; temporary local programming only, not permanent or hazardous-location use |
| Digital I/O maximum | 128,000 |
| Standard memory | 10 MB |
| Ethernet interface | 1 embedded 10/100/1000 Mbps EtherNet/IP port |
| Nonvolatile storage | Secure Digital storage; supports 1784-SD4 (4 GB) |
| Official catalog number | 1756-L83E-NSE |
