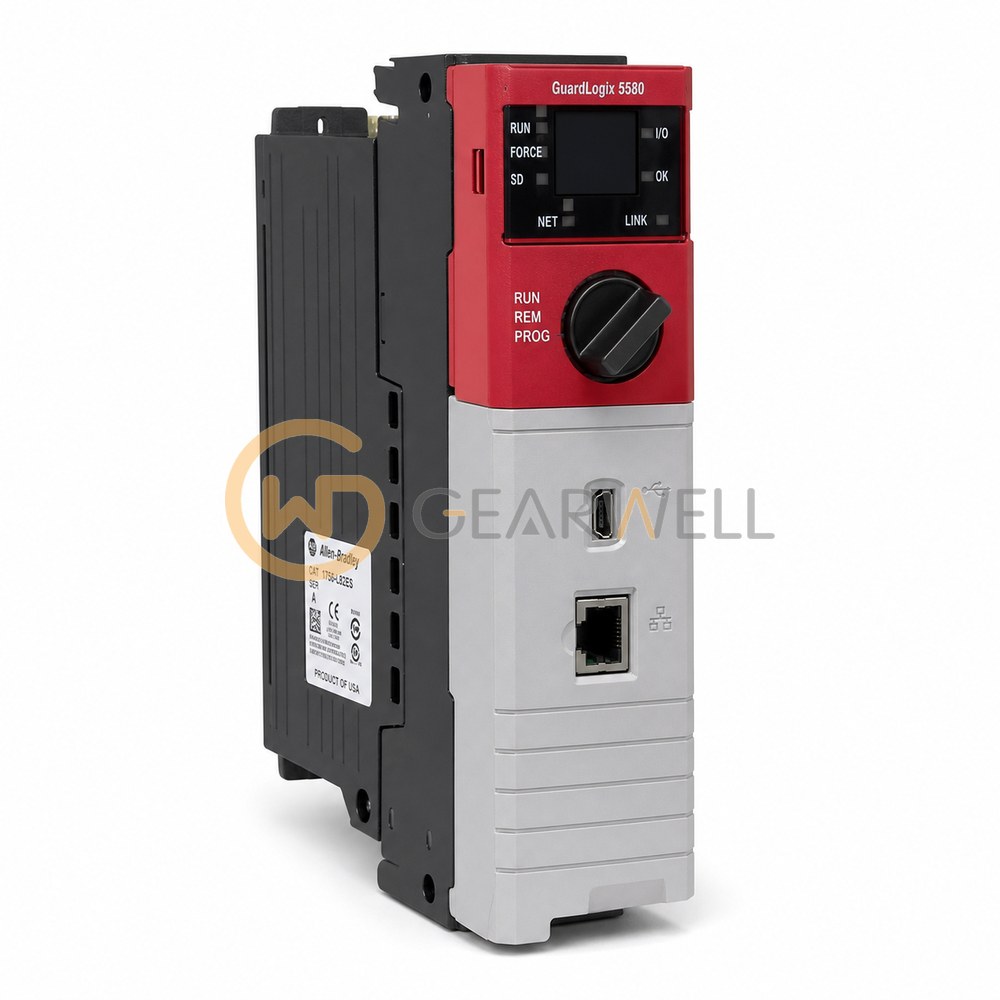

Allen-Bradley 1756-L82ES GuardLogix 5580 Safety Controller
- Brand
- Allen-Bradley
- Model
- 1756L82ES
- GEARWELL SKU
- GWP-000003903
- Category
- PLCs & I/O
Key specifications
- Memory
- 5 MB standard memory; 2.5 MB safety memory
- Backplane current
- 5 mA at 1.2 V DC; 1.20 A at 5.1 V DC
- Product type
- GuardLogix 5580 Safety Controller
- Chassis width
- 1 slot
- Safety memory
- 2.5 MB
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-L82ES is a GuardLogix 5580 safety controller from Rockwell's ControlLogix 1756 range. It has 5 MB of standard memory and 2.5 MB of safety memory. A single GuardLogix 5580 reaches up to SIL 2/PLd (Category 3); paired with a 1756-L8SP safety partner it reaches up to SIL CL 3/PLe (Category 4). It has an embedded 10/100/1000 Mbps EtherNet/IP port, 31 standard tasks plus one safety task, and up to 128,000 digital or 4000 analog I/O. It installs in a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-L82ES GuardLogix 5580 Safety Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756L82ES |
| Category | PLCs & I/O |
| Memory | 5 MB standard memory; 2.5 MB safety memory |
| Backplane current | 5 mA at 1.2 V DC; 1.20 A at 5.1 V DC |
| Product type | GuardLogix 5580 Safety Controller |
| Chassis width | 1 slot |
| Safety memory | 2.5 MB |
| Standard memory | 5 MB |
| Manufacturer lifecycle | Active |
| Ethernet interface | 1 embedded 10/100/1000 Mbps EtherNet/IP port |
| Product description | Allen-Bradley 1756L82ES GuardLogix 5580 Safety Controller. 5 MB standard memory and 2.5 MB safety memory. It is the primary controller; the safety partner is a separate module. System safety capability depends on the complete validated configuration. |
