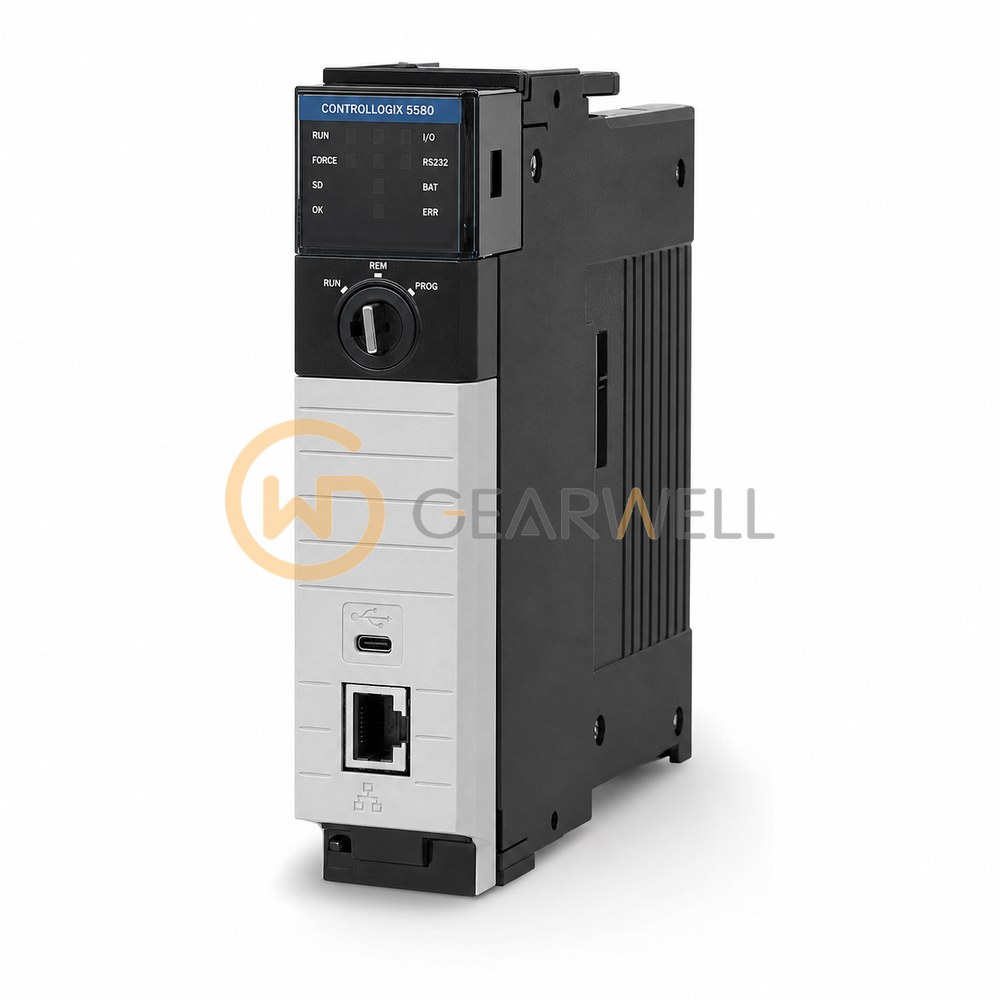

Allen-Bradley 1756-L82E-NSE ControlLogix 5580 NSE Controller
- Brand
- Allen-Bradley
- Model
- 1756L82ENSE
- GEARWELL SKU
- GWP-000001290
- Category
- PLCs & I/O
Key specifications
- Product type
- ControlLogix 5580 NSE Controller
- Analog I/O maximum
- 4,000
- Local programming port
- 1 USB 2.0; temporary local programming only, not permanent or hazardous-location use
- Digital I/O maximum
- 128,000
- Standard memory
- 5 MB
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-L82E-NSE is a ControlLogix 5580 No Stored Energy (NSE) controller from Rockwell's ControlLogix 1756 range. It is the No Stored Energy version of the 1756-L82E, for applications where the installed controller must deplete its residual stored energy to specific levels before it is transported into or out of the application. It has 5 MB of standard memory and conformal coating. It has an embedded 10/100/1000 Mbps EtherNet/IP port and a USB 2.0 port for programming, 32 tasks with up to 1000 programs per task, up to 128,000 digital or 4000 analog I/O, and a 4 GB SD card (1784-SD4) installed at the factory. It supports Integrated Motion on EtherNet/IP and controller redundancy. It installs in a 1756 ControlLogix chassis and takes one slot.
Technical reference
| Product name | Allen-Bradley 1756-L82E-NSE ControlLogix 5580 NSE Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756L82ENSE |
| Category | PLCs & I/O |
| Product type | ControlLogix 5580 NSE Controller |
| Analog I/O maximum | 4,000 |
| Local programming port | 1 USB 2.0; temporary local programming only, not permanent or hazardous-location use |
| Digital I/O maximum | 128,000 |
| Standard memory | 5 MB |
| Ethernet interface | 1 embedded 10/100/1000 Mbps EtherNet/IP port |
| Nonvolatile storage | Secure Digital storage; supports 1784-SD4 (4 GB) |
| Official catalog number | 1756-L82E-NSE |
