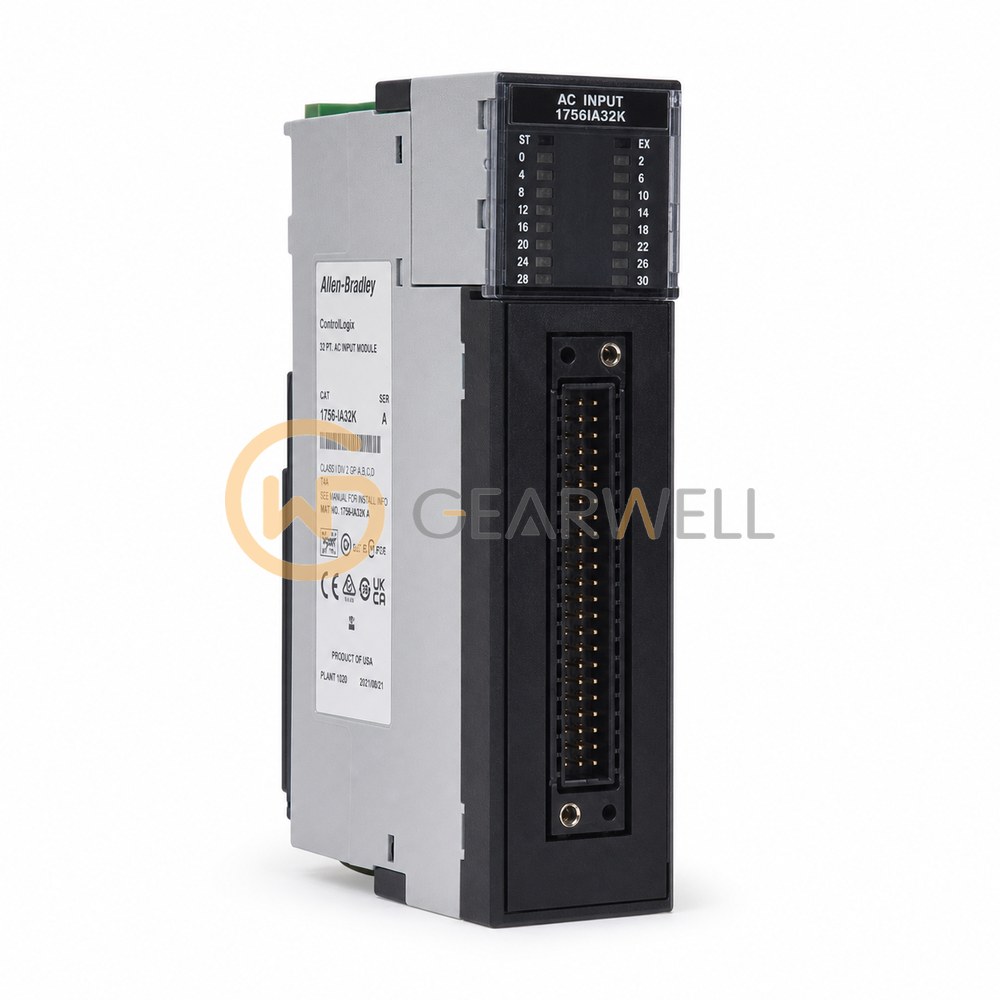

Allen-Bradley 1756IA32K ControlLogix Conformally Coated 32-Point AC Input Module
- Brand
- Allen-Bradley
- Model
- 1756IA32K
- GEARWELL SKU
- GWP-000000515
- Category
- PLCs & I/O
Key specifications
- Voltage category
- 120 V AC
- Isolation
- 125 V continuous between groups of 16 inputs
- Product type
- ControlLogix 32 Pt D/I 120V AC Module
- Terminal count
- 36-pin
- Lifecycle status
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1756-IA32K is a ControlLogix AC (74…132V) input module for the 1756 chassis. It has 32 inputs in two groups of 16 for 120V AC signals, with an operating range of 74…132V AC at 47…63 Hz and input time stamps to ±200 µs. It draws 165 mA at 5.1V DC and 2 mA at 24V DC from the backplane. Field wiring goes through a 1756-TBCH or 1756-TBS6H removable terminal block, which is ordered separately. This K version adds conformal coating for harsh, corrosive environments. ControlLogix I/O modules can sit in any slot of a local ControlLogix chassis or in a remote chassis linked over EtherNet/IP or ControlNet, and their input data and output status can be shared by more than one controller.
Technical reference
| Product name | Allen-Bradley 1756IA32K ControlLogix Conformally Coated 32-Point AC Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1756IA32K |
| Category | PLCs & I/O |
| Voltage category | 120 V AC |
| Isolation | 125 V continuous between groups of 16 inputs |
| Product type | ControlLogix 32 Pt D/I 120V AC Module |
| Terminal count | 36-pin |
| Lifecycle status | Active |
| Number Of Channels | 32 |
| Product description | 74-132 VAC Input 32 Pts (36P) - Conformally Coated |
| Operating voltage range | 74-132 V AC |
