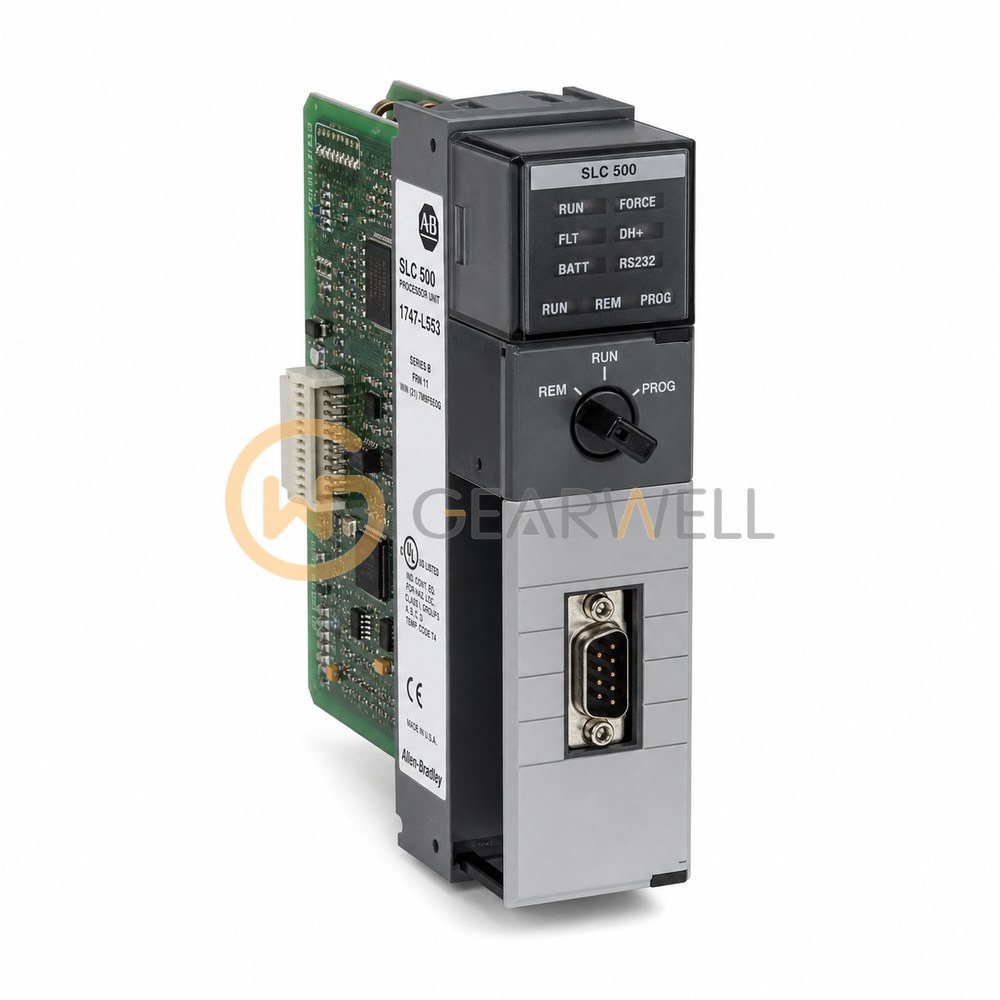

Allen-Bradley 1747-L553 PLC Controller
- Brand
- Allen-Bradley
- Model
- 1747-L553
- GEARWELL SKU
- GWP-000000695
- Category
- PLCs & I/O
Key specifications
- Class
- signal data processor
- Memory
- 64KB
- Processor
- SLC 5/05 Controller - 64K
- Power Supply
- 1746-P1 to 1746-P7
- Communication
- Ethernet and RS-232
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1747-L553 is an SLC 5/05 modular processor with 64K words of memory and Ethernet (10 or 100 Mbps) and RS-232 ports on board. It draws 1000 mA at 5V and 200 mA at 24V from the backplane. Series C processors support 64 connections. It takes an optional 1747-M13 flash memory module. It is used in 1746 modular chassis, up to 3 chassis with 30 slots in total, and is programmed with RSLogix 500.
Technical reference
| Product name | Allen-Bradley 1747-L553 PLC Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1747-L553 |
| Category | PLCs & I/O |
| Class | signal data processor |
| Memory | 64KB |
| Processor | SLC 5/05 Controller - 64K |
| Power Supply | 1746-P1 to 1746-P7 |
| Communication | Ethernet and RS-232 |
