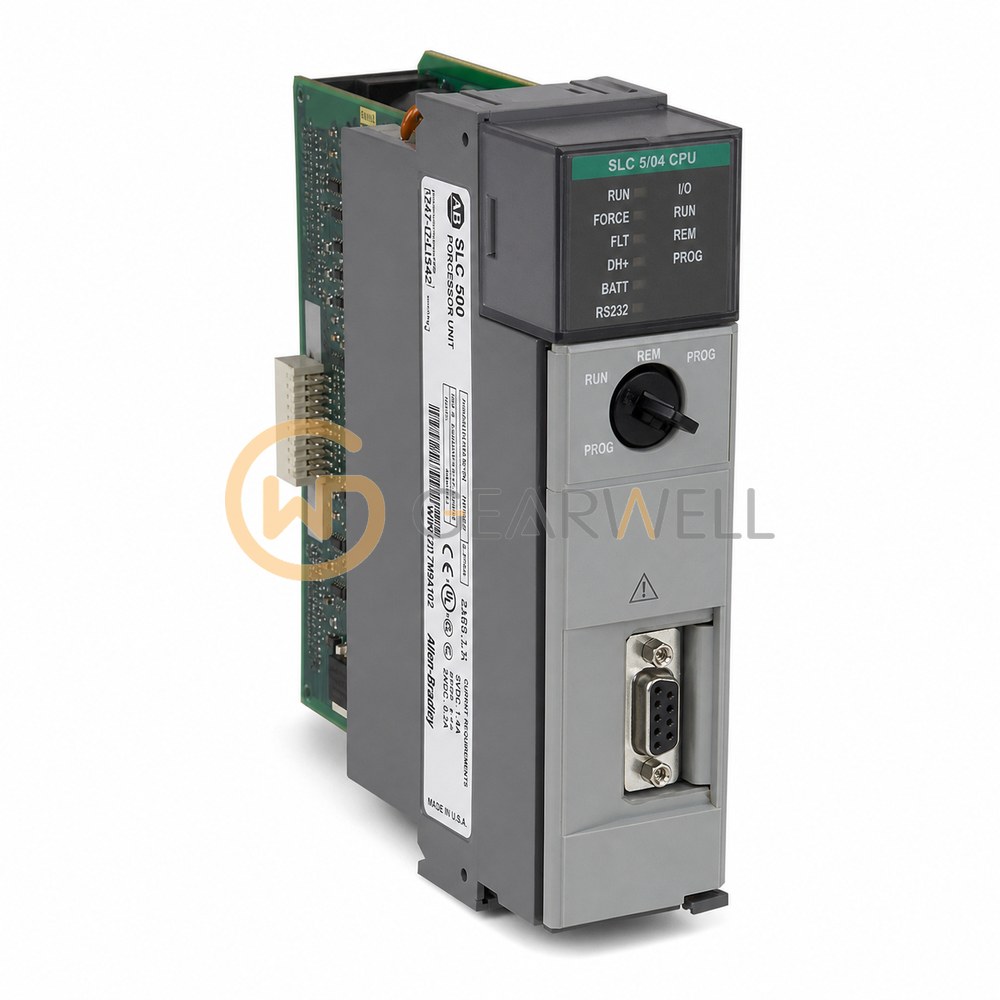

Allen-Bradley 1747-L542 SLC 5/04 32K Controller
- Brand
- Allen-Bradley
- Model
- 1747-L542
- GEARWELL SKU
- GWP-000000086
- Category
- PLCs & I/O
Key specifications
- Class
- Central processing unit CPU
- Product type
- SLC 5/04 32K Controller
- Lifecycle status
- Discontinued
- Communication Ports
- Data Highway Plus
- Product description
- 1746 SLC System, SLC 5/04 Controller, 32K Memory
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1747-L542 is an SLC 5/04 modular processor with 32K words of memory and DH+ and RS-232 ports on board. It draws 1000 mA at 5V and 200 mA at 24V from the backplane. It takes an optional 1747-M13 flash memory module. It is used in 1746 modular chassis, up to 3 chassis with 30 slots in total, and is programmed with RSLogix 500.
Technical reference
| Product name | Allen-Bradley 1747-L542 SLC 5/04 32K Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1747-L542 |
| Category | PLCs & I/O |
| Class | Central processing unit CPU |
| Product type | SLC 5/04 32K Controller |
| Lifecycle status | Discontinued |
| Communication Ports | Data Highway Plus |
| Product description | 1746 SLC System, SLC 5/04 Controller, 32K Memory |
