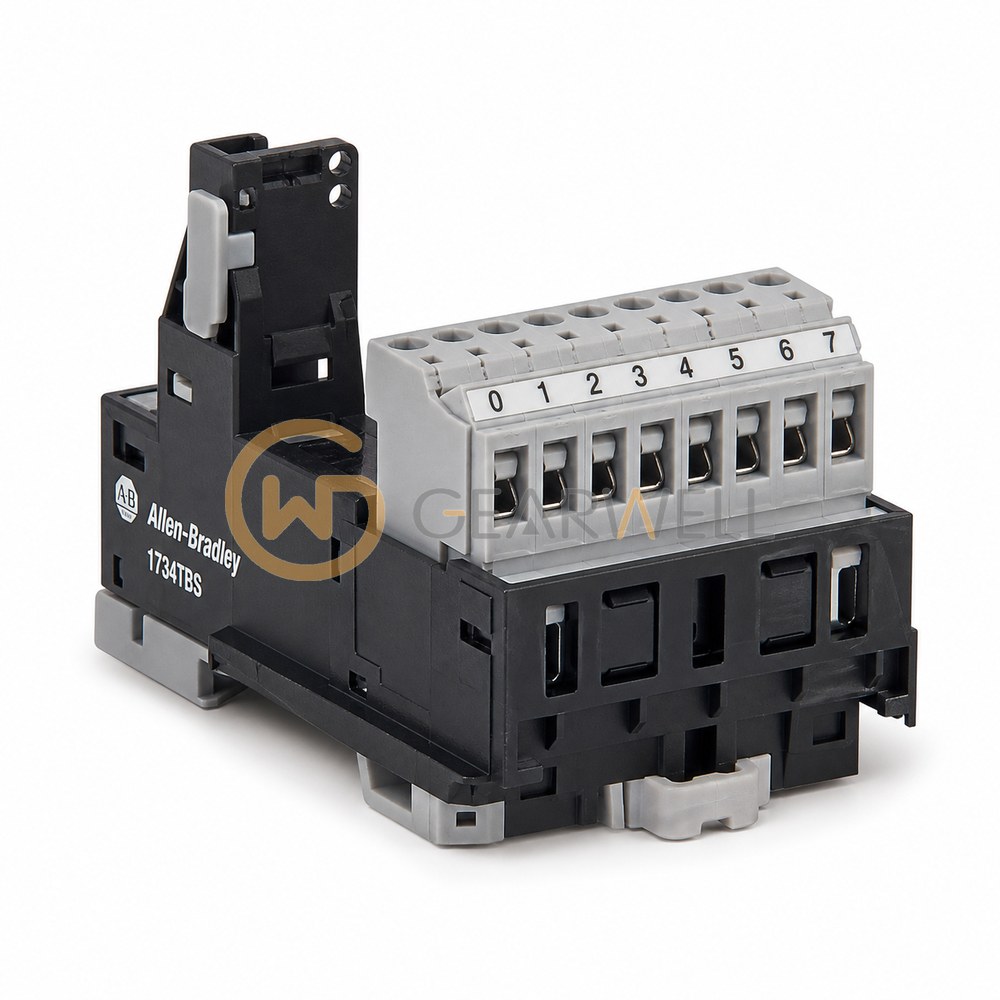

Allen-Bradley 1734-TBS POINT I/O 8-Terminal Spring-Clamp Wiring Base
- Brand
- Allen-Bradley
- Model
- 1734TBS
- GEARWELL SKU
- GWP-000003513
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 65 × 12 × 133.4 mm (H × W × D), approximate.
- Product type
- POINT I/O 8-terminal spring-clamp wiring base with removable terminal block
- Lifecycle status
- Active
- Termination type
- Spring-clamp.
- Temperature Rating
- -20…55 °C (-4…131 °F)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-TBS is a POINT I/O terminal base assembly: a DIN-rail mounting base with an 8-terminal spring-clamp removable terminal block (replacement 1734-RTBS). The field power bus is rated up to 28.8V DC or 120/240V AC at 10 A.
Technical reference
| Product name | Allen-Bradley 1734-TBS POINT I/O 8-Terminal Spring-Clamp Wiring Base |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734TBS |
| Category | PLCs & I/O |
| Dimensions | 65 × 12 × 133.4 mm (H × W × D), approximate. |
| Product type | POINT I/O 8-terminal spring-clamp wiring base with removable terminal block |
| Lifecycle status | Active |
| Termination type | Spring-clamp. |
| Temperature Rating | -20…55 °C (-4…131 °F) |
| Number Of Terminals | 8 |
| Product description | POINT I/O 8-terminal spring-clamp wiring base with removable terminal block. 1734-MB mounting base with 1734-RTBS removable terminal block. |
| Field power bus current | 10 A maximum (field power bus). |
| Field power bus voltage | 28.8 V DC; 120/240 V AC (base bus ratings). |
| Signal terminal current | 2 A (signal terminal rating). |
