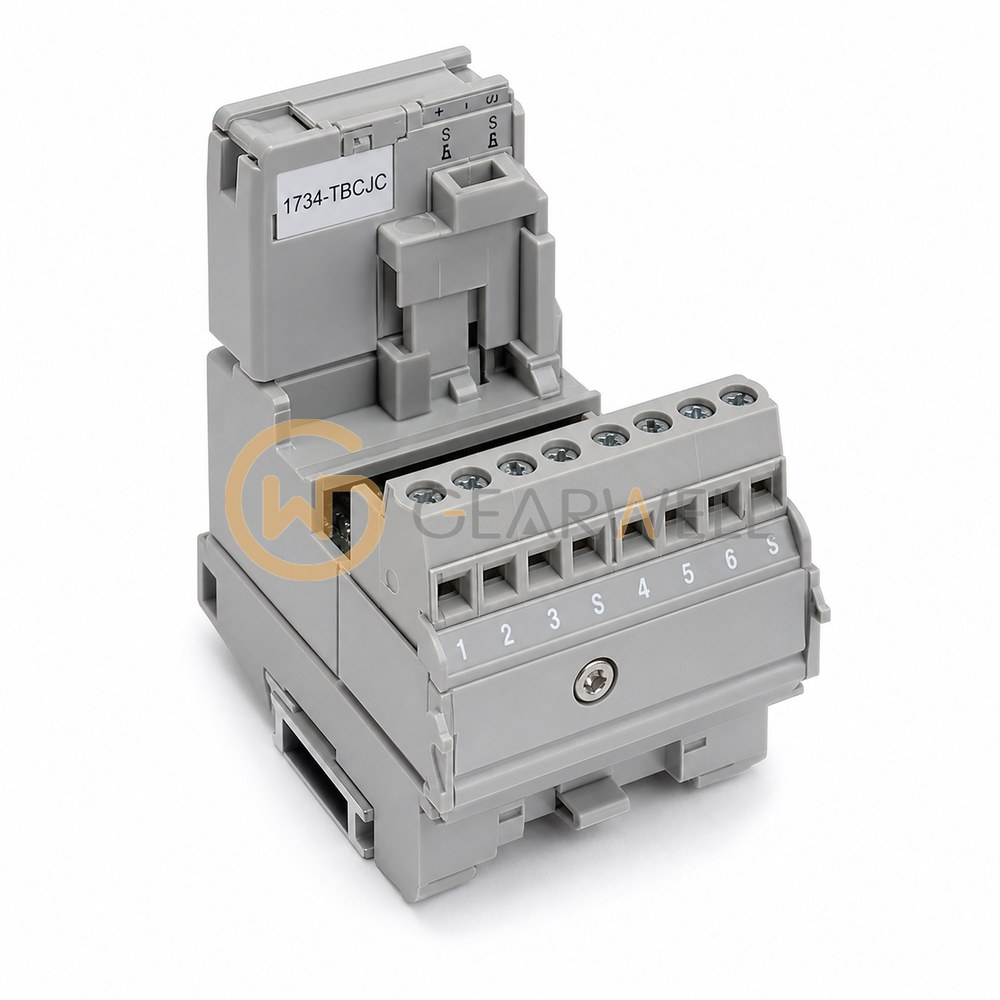

Allen-Bradley 1734-TBCJC POINT I/O Screw-Clamp CJC Thermocouple Wiring Base
- Brand
- Allen-Bradley
- Model
- 1734TBCJC
- GEARWELL SKU
- GWP-000002232
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 65 × 12 × 133.4 mm (H × W × D), approximate.
- Product type
- POINT I/O screw-clamp CJC thermocouple wiring base
- Base assembly
- 1734-MB mounting base with removable 1734-RTBCJC terminal block.
- Lifecycle status
- Active
- RTB screw torque
- 0.5…0.6 N·m.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-TBCJC is a POINT I/O mounting base with a cold junction compensation removable terminal block (replacement 1734-RTBCJC), for the 1734-IT2I thermocouple input module only. Its compensation range is 0…70 °C.
Technical reference
| Product name | Allen-Bradley 1734-TBCJC POINT I/O Screw-Clamp CJC Thermocouple Wiring Base |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734TBCJC |
| Category | PLCs & I/O |
| Dimensions | 65 × 12 × 133.4 mm (H × W × D), approximate. |
| Product type | POINT I/O screw-clamp CJC thermocouple wiring base |
| Base assembly | 1734-MB mounting base with removable 1734-RTBCJC terminal block. |
| Lifecycle status | Active |
| RTB screw torque | 0.5…0.6 N·m. |
| Termination type | Screw-clamp. |
| Compatible I/O module | 1734-IT2I thermocouple input module. |
| Temperature Rating | -20…55 °C (-4…131 °F) |
| Terminal arrangement | 4 thermocouple signal terminals plus 1 shield connection (5-position RTB). |
| Product description | POINT I/O screw-clamp cold-junction compensation wiring base for 1734-IT2I, with a removable terminal block. |
