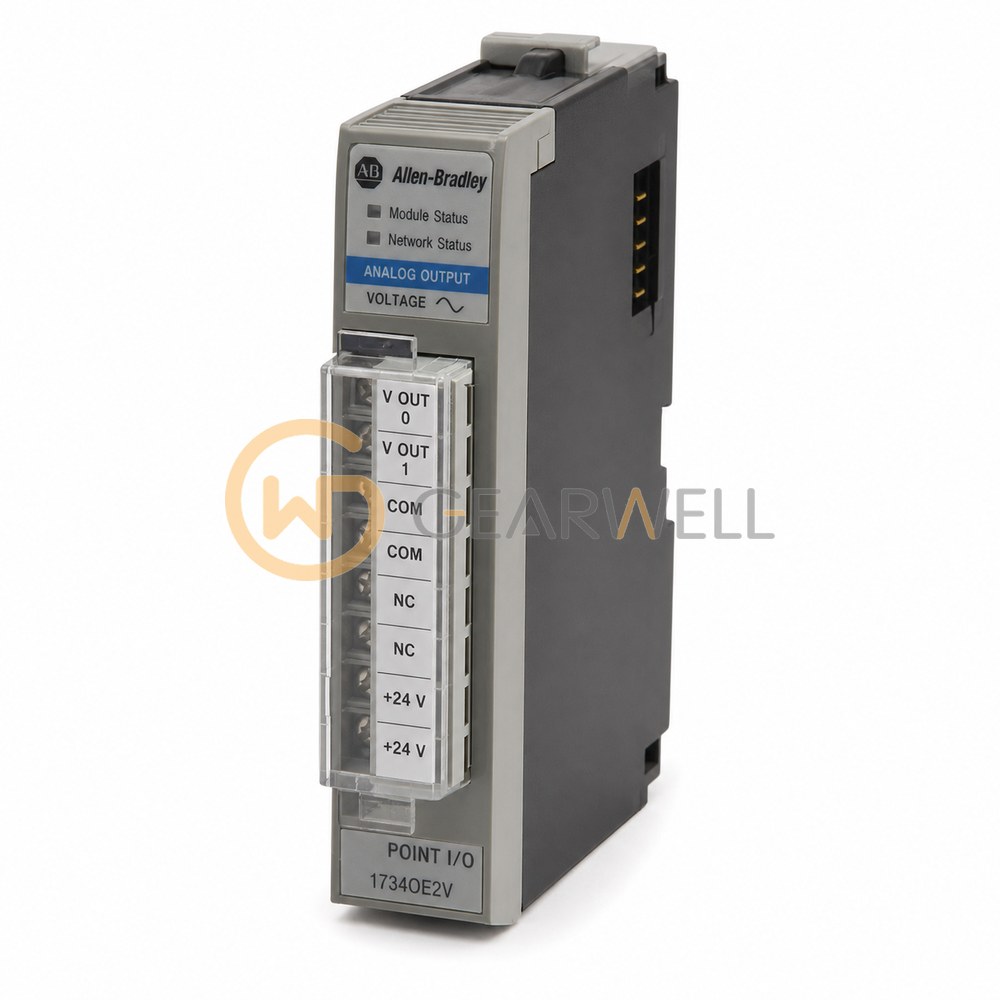

Allen-Bradley 1734-OE2V POINT I/O 2-Channel Analog Voltage Output Module
- Brand
- Allen-Bradley
- Model
- 1734OE2V
- GEARWELL SKU
- GWP-000004427
- Category
- PLCs & I/O
Key specifications
- Output channels (Series C)
- 2 single-ended, nonisolated voltage outputs.
- Output load (Series C)
- 3 mA current load on the voltage output.
- External/field supply (Series C)
- 24 V DC nominal; 10…28.8 V DC external/field input.
- Product type
- POINT I/O 2-channel voltage output module
- D/A conversion time (Series C)
- 20 µs (digital-to-analog conversion).
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1734-OE2V is a POINT I/O analog output module with 2 single-ended, non-isolated voltage outputs for 0…10V or ±10V, 14-bit (13 plus sign) resolution and 3 mA load current. It draws 75 mA from the POINTBus. Like all POINT I/O modules, it plugs into a terminal base with a removable terminal block that carries the field wiring; the terminal base is not included and is ordered separately.
Technical reference
| Product name | Allen-Bradley 1734-OE2V POINT I/O 2-Channel Analog Voltage Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1734OE2V |
| Category | PLCs & I/O |
| Output channels (Series C) | 2 single-ended, nonisolated voltage outputs. |
| Output load (Series C) | 3 mA current load on the voltage output. |
| External/field supply (Series C) | 24 V DC nominal; 10…28.8 V DC external/field input. |
| Product type | POINT I/O 2-channel voltage output module |
| D/A conversion time (Series C) | 20 µs (digital-to-analog conversion). |
| Manufacturer lifecycle status | Active |
| Absolute accuracy (Series C) | 0.1% full scale at 25 °C. |
| Output resolution (Series C) | 14 bits (13 plus sign); 1.28 mV/count in unipolar or bipolar mode. |
| Operating temperature (Series C) | -20…55 °C (-4…131 °F) |
| Product description | 2-channel analog voltage output module for POINT I/O, with single-ended, nonisolated outputs. |
| Output signal ranges (Series C) | 0…10 V or ±10 V, configurable. |
