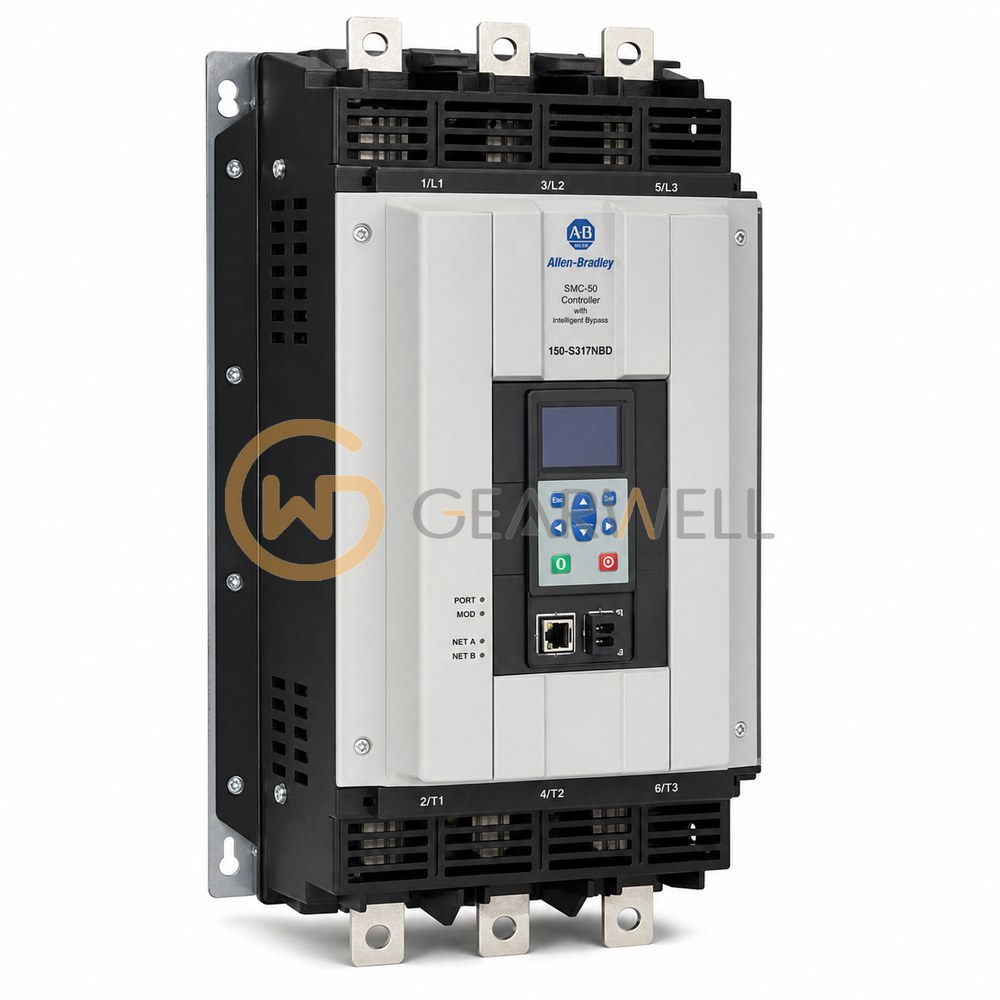

Allen-Bradley 150-S317NBD SMC-50 Soft Starter, 317 A
- Brand
- Allen-Bradley
- Model
- 150-S317NBD
- GEARWELL SKU
- GWP-000000011
- Category
- Drives and Motors
Key specifications
- Enclosure
- Open type
- Line voltage
- 200–480 V AC, 3-phase
- Rated current
- 317 A
- Line frequency
- 50/60 Hz
- Control voltage
- 100–240 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 150-S317NBD is an SMC-50 controller with internal bypass (soft starter) from Rockwell's Bulletin 150 SMC family. It is rated 317 A for line-connected motors with a full-load current of 106…317 A, with a maximum motor rating of 160 kW at 400/415V AC and 250 Hp at 460V AC. It runs on 200…480V AC, 3-phase, 50 and 60 Hz with 100…240V AC control power (two 24V DC inputs and two relay outputs standard). The SMC-50 is designed for application scalability, with normal and heavy-duty ratings, expandable I/O and sensor capability, network integration, LCD or PC software setup, and seventeen start/stop modes and three slow-speed modes.
Technical reference
| Product name | Allen-Bradley 150-S317NBD SMC-50 Soft Starter, 317 A |
|---|---|
| Brand | Allen-Bradley |
| Model | 150-S317NBD |
| Category | Drives and Motors |
| Enclosure | Open type |
| Line voltage | 200–480 V AC, 3-phase |
| Rated current | 317 A |
| Line frequency | 50/60 Hz |
| Control voltage | 100–240 V AC |
| Controller type | SMC-50 controller with bypass |
| Standard inputs | 2 × 24 V DC inputs |
| Standard outputs | 2 relay outputs |
