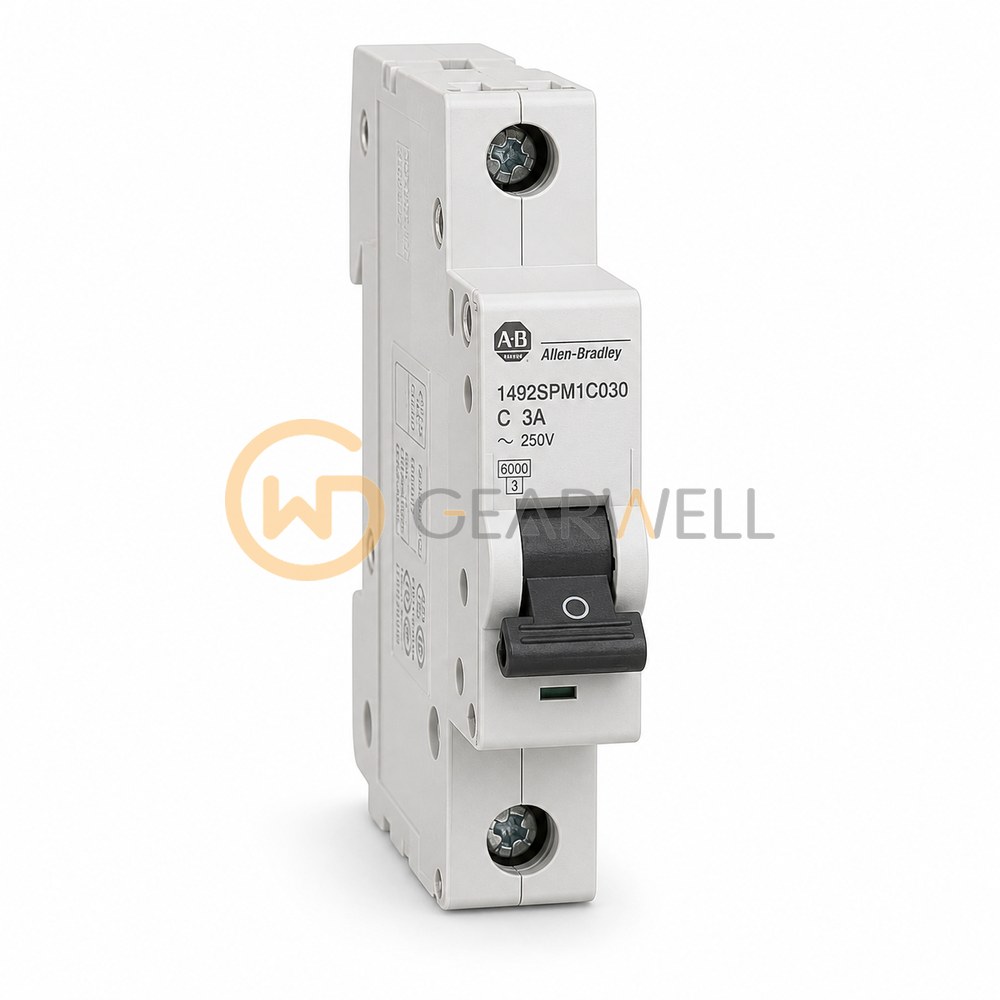

Allen-Bradley 1492SPM1C030 3 A 1-Pole Supplementary Protector
- Brand
- Allen-Bradley
- Model
- 1492SPM1C030
- GEARWELL SKU
- GWP-000000002
- Category
- Circuit Protection
Key specifications
- Trip curve
- C
- Product type
- Miniature supplementary circuit protector
- Rated current
- 3 A
- Number of poles
- 1
- Neutral configuration
- No neutral
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1492-SPM1C030 is a Bulletin 1492-SP supplementary protector, 1-pole, trip curve C (5…10 x In, for inductive loads), rated 3 A. Per UL 1077 it is rated 277V AC or 48V DC with 10 kA AC and 10 kA DC interrupting capacity; per IEC/EN 60947-2 it is rated 230V AC with 15 kA Icu. Power loss is 1.6 W per pole. It mounts on a 35 mm DIN rail, each pole is 17.5 mm wide, and it is rated for -25…+55 °C ambient.
Technical reference
| Product name | Allen-Bradley 1492SPM1C030 3 A 1-Pole Supplementary Protector |
|---|---|
| Brand | Allen-Bradley |
| Model | 1492SPM1C030 |
| Category | Circuit Protection |
| Trip curve | C |
| Product type | Miniature supplementary circuit protector |
| Rated current | 3 A |
| Number of poles | 1 |
| Neutral configuration | No neutral |
