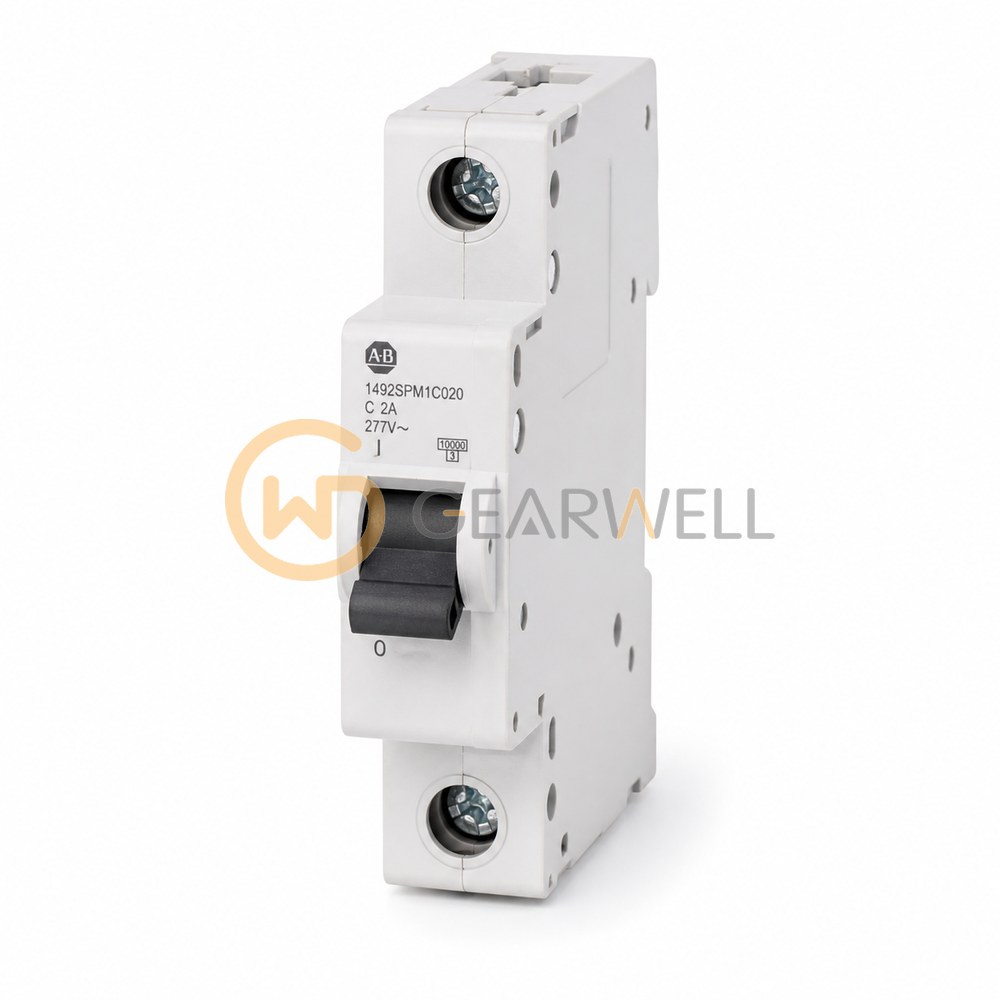

Allen-Bradley 1492SPM1C020 Industrial Electronic Component

Allen-Bradley 1492SPM1C020 2 A 1-Pole Supplementary Protector

Model
1492SPM1C020
GEARWELL SKU
GWP-000004363
Category
Circuit Protection

Key specifications

Rated current
2 A
Trip curve
C
Product type
Miniature supplementary circuit protector
Number of poles
1
Lifecycle status
Active
Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 1492-SPM1C020 is a Bulletin 1492-SP supplementary protector, 1-pole, trip curve C (5…10 x In, for inductive loads), rated 2 A. Per UL 1077 it is rated 277V AC or 48V DC with 10 kA AC and 10 kA DC interrupting capacity; per IEC/EN 60947-2 it is rated 230V AC with 15 kA Icu. Power loss is 1.8 W per pole. It mounts on a 35 mm DIN rail, each pole is 17.5 mm wide, and it is rated for -25…+55 °C ambient.

Technical reference

Product nameAllen-Bradley 1492SPM1C020 2 A 1-Pole Supplementary Protector
BrandAllen-Bradley
Model1492SPM1C020
CategoryCircuit Protection
Rated current2 A
Trip curveC
Product typeMiniature supplementary circuit protector
Number of poles1
Lifecycle statusActive
Product descriptionBulletin 1492-SPM Supplemental Circuit Breaker, 1-Pole, Trip Curve C, 2A, No Neutral
Neutral configurationNo neutral
