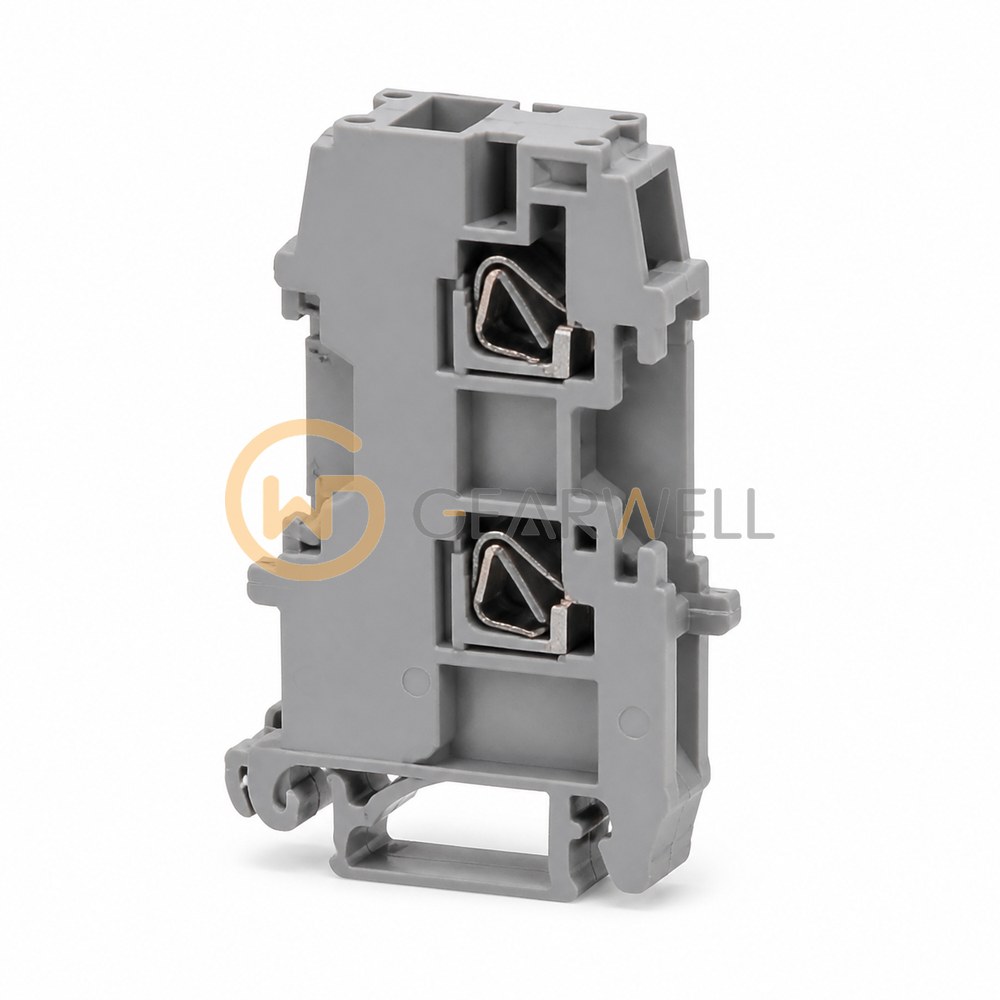

Allen-Bradley 1492-LD2C Terminal Blocks
- Brand
- Allen-Bradley
- Model
- 1492-LD2C
- GEARWELL SKU
- GWP-000001777
- Category
- Industrial Automation Parts
Key specifications
- Phase
- 1 pole
- Current
- 300 V AC/DC
- Wire Size
- UR - #28...16 AWG, CSA -
- Terminal Size
- 3.5 x 75 x 43mm (0.138 x 2.95
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1492-LD2C is a 1492 spring clamp two-circuit feed-through terminal block in gray, with the two circuits connected by a commoning bar. Wire and ratings are UL 28-16 AWG (10A at 300V AC/DC), CSA 28-16 AWG (10A at 600V AC/DC) and IEC 1.5 mm² (17.5A at 500V AC/DC).
Technical reference
| Product name | Allen-Bradley 1492-LD2C Terminal Blocks |
|---|---|
| Brand | Allen-Bradley |
| Model | 1492-LD2C |
| Category | Industrial Automation Parts |
| Phase | 1 pole |
| Current | 300 V AC/DC |
| Wire Size | UR - #28...16 AWG, CSA - |
| Terminal Size | 3.5 x 75 x 43mm (0.138 x 2.95 |
