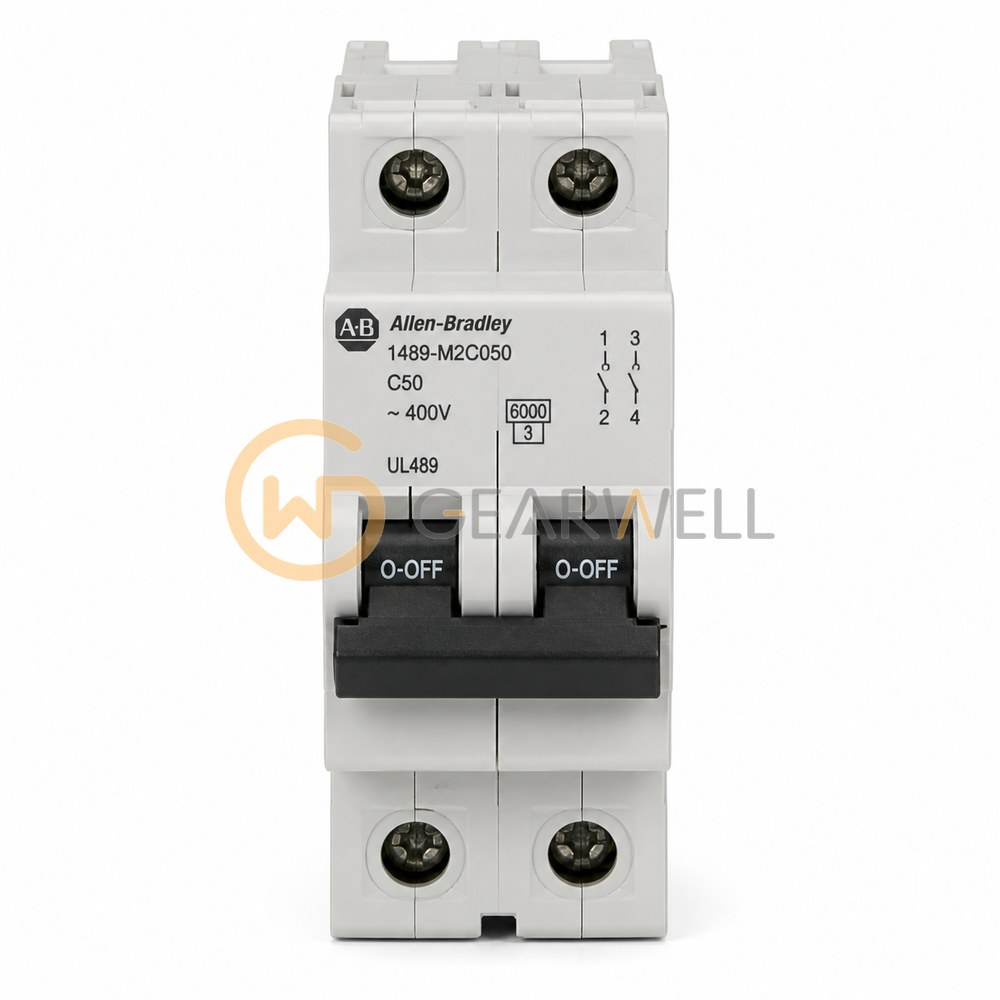

Allen-Bradley 1489-M2C050 UL489 5 A Miniature Circuit Breaker
- Brand
- Allen-Bradley
- Model
- 1489-M2C050
- GEARWELL SKU
- GWP-000001396
- Category
- Industrial Automation Parts
Key specifications
- Type
- Branch Circuit Protectors
- Sub Brand
- 1489
- Trip Type
- C
- Amperage Rating
- 5.0 A
- Number Of Poles
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1489-M2C050 is a Bulletin 1489-M thermal-magnetic circuit breaker, 2-pole, trip curve C, rated 5 A. Per UL/CSA it is rated 480Y/277V AC (96V DC with the 2 poles in series) and 10 kA interrupting capacity per UL 489. It mounts on a 35 mm DIN rail and is rated for -25…+55 °C ambient.
Technical reference
| Product name | Allen-Bradley 1489-M2C050 UL489 5 A Miniature Circuit Breaker |
|---|---|
| Brand | Allen-Bradley |
| Model | 1489-M2C050 |
| Category | Industrial Automation Parts |
| Type | Branch Circuit Protectors |
| Sub Brand | 1489 |
| Trip Type | C |
| Amperage Rating | 5.0 A |
| Number Of Poles | 2 |
