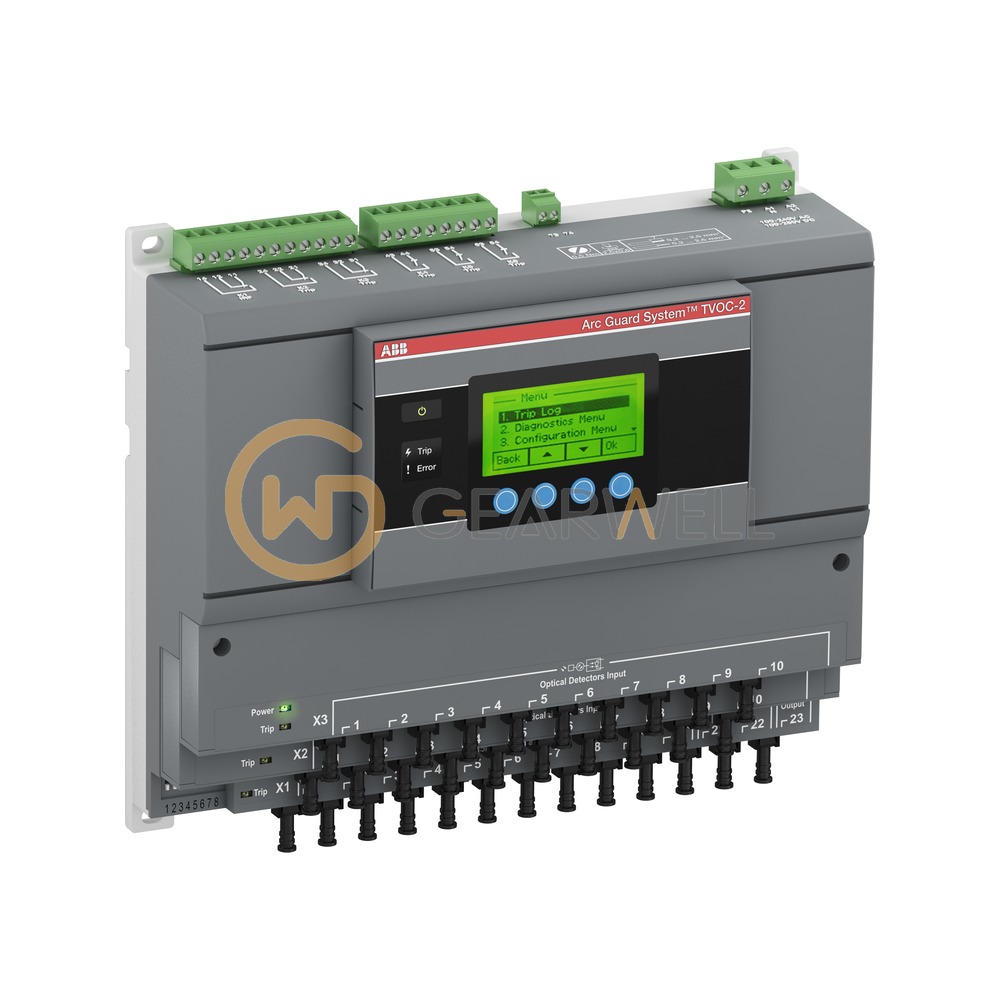

ABB TVOC-2-240 Arc Guard System TVOC-2 Arc monitor
- Brand
- ABB
- Model
- TVOC-2-240
- GEARWELL SKU
- GWP-000014705
- Category
- Circuit Protection
Key specifications
- Power loss
- 5 W
- Product net weight
- 1.2 kg
- Dimensions (W x H x D)
- 210 x 230 x 80 mm
- Rated operational voltage
- 100 ... 240 V AC/DC
- Auxiliary contacts CO (SPDT)
- 3
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB TVOC-2-240 is the TVOC-2-240 arc monitor of the ABB Arc Guard System (order code 1SFA664001R1001), including one HMI and door mounting accessories, for a rated supply voltage of 100...240 V 50/60 Hz or 100...250 V DC. It has 10 optical detector inputs (10 more on each optional extension module X2 and X3), 2 optical current signal inputs from the CSU and 3 NO solid-state IGBT breaker trip contacts rated 250 V AC / DC.
Technical reference
| Product name | ABB TVOC-2-240 Arc Guard System TVOC-2 Arc monitor |
|---|---|
| Brand | ABB |
| Model | TVOC-2-240 |
| Category | Circuit Protection |
| Power loss | 5 W |
| Product net weight | 1.2 kg |
| Dimensions (W x H x D) | 210 x 230 x 80 mm |
| Rated operational voltage | 100 ... 240 V AC/DC |
| Auxiliary contacts CO (SPDT) | 3 |
| Ambient air temperature (operation) | -25 ... +55 °C |
| Number of optical detector inputs | 10 |
