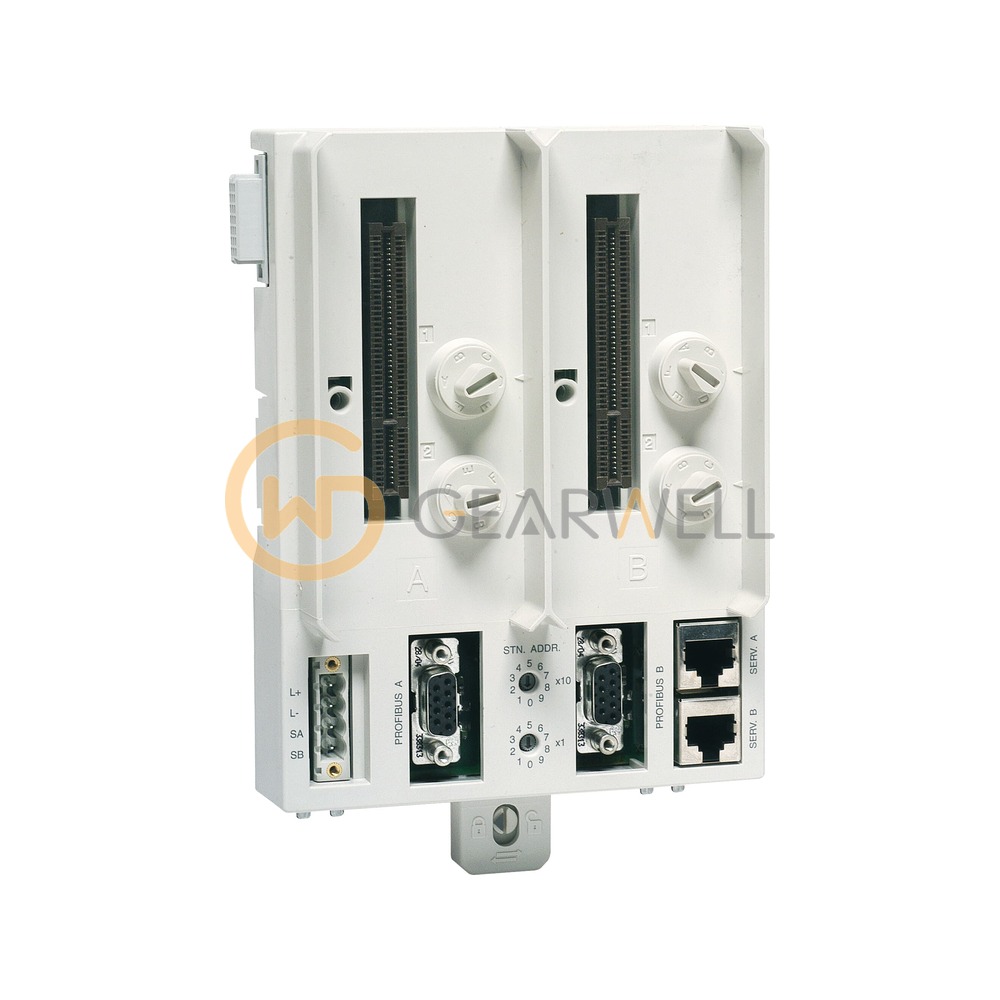

ABB TU847 Module termination unit for CI840/CI840A (redundant FCI, single I/O)
- Brand
- ABB
- Model
- TU847
- GEARWELL SKU
- GWP-000014437
- Category
- PLCs & I/O
Key specifications
- Weight
- 0.5 kg
- Connectors
- PROFIBUS DSUB9; service ports RJ45
- Power input
- 24 V DC (19.2-30 V)
- Dimensions (W x H x D)
- 124 x 186 x 47 mm
- Communication protocol
- PROFIBUS DP-V1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB TU847 is a module termination unit (MTU, article 3BSE022462R1) for a redundant pair of CI840/CI840A PROFIBUS DP-V1 communication interfaces with single I/O. It is a passive unit with connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99), plus a DSUB9 PROFIBUS connector and RJ45 service ports. It takes 24 V d.c. (19.2 - 30 V), measures 124 x 186.5 x 47 mm and weighs 500 g.
Technical reference
| Product name | ABB TU847 Module termination unit for CI840/CI840A (redundant FCI, single I/O) |
|---|---|
| Brand | ABB |
| Model | TU847 |
| Category | PLCs & I/O |
| Weight | 0.5 kg |
| Connectors | PROFIBUS DSUB9; service ports RJ45 |
| Power input | 24 V DC (19.2-30 V) |
| Dimensions (W x H x D) | 124 x 186 x 47 mm |
| Communication protocol | PROFIBUS DP-V1 |
| ModuleBus current distribution | max 5 V 1.5 A / 24 V 1.5 A |
