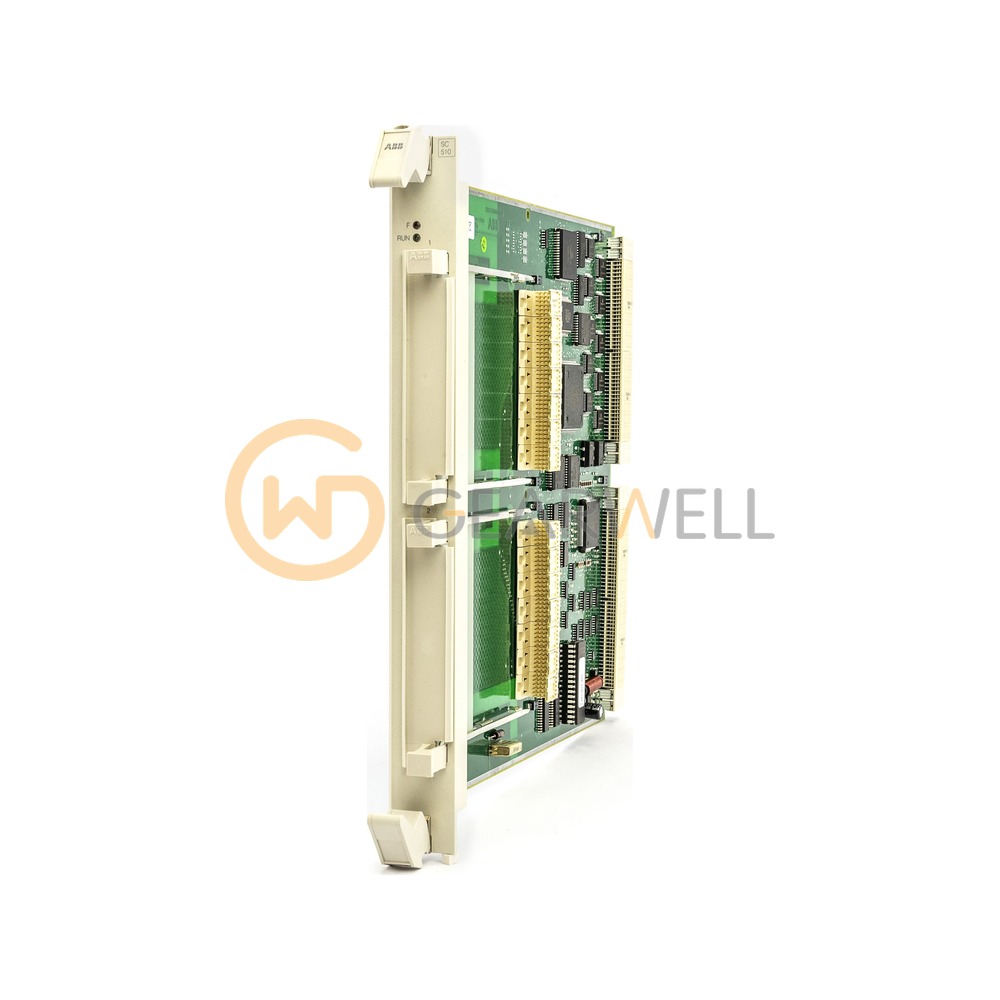

ABB SC510 Submodule carrier without CPU
- Brand
- ABB
- Model
- SC510
- GEARWELL SKU
- GWP-000014416
- Category
- PLCs & I/O
Key specifications
- Description
- Submodule Carrier without CPU
- Type designation
- SC510
- Product net width
- 486 mm
- Product net height
- 22.5 mm
- Product net weight
- 0.67 kg
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB SC510 is a submodule carrier of the Advant Controller 450, which holds communication submodules that are executed in the main CPU, as it has no slave CPU. One controller takes up to 7 SC510, with a total of 8 modules including the CPU(s). It is used, for example, for the CS513 MasterBus 300/300E interface without slave CPU (up to 2) and for the CI543 GCOM interface (up to 5).
Technical reference
| Product name | ABB SC510 Submodule carrier without CPU |
|---|---|
| Brand | ABB |
| Model | SC510 |
| Category | PLCs & I/O |
| Description | Submodule Carrier without CPU |
| Type designation | SC510 |
| Product net width | 486 mm |
| Product net height | 22.5 mm |
| Product net weight | 0.67 kg |
| Product net depth/length | 288 mm |
