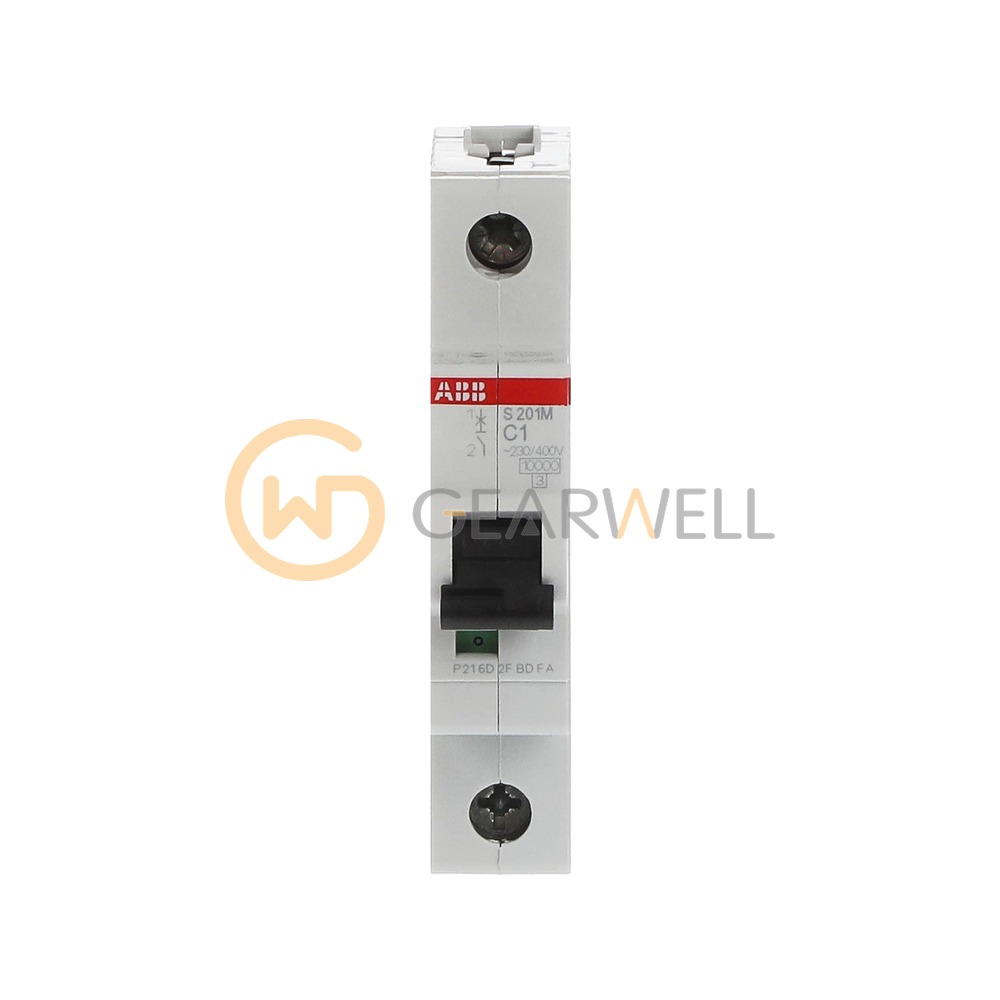

ABB S201M-C1 S200M Miniature Circuit Breaker 1P C1A
- Brand
- ABB
- Model
- S201M-C1
- GEARWELL SKU
- GWP-000011281
- Category
- Circuit Protection
Key specifications
- Width
- 17.5 (1 module) mm
- Order code
- 2CDS271001R0014
- Number of poles
- 1P
- Rated current In
- 1 A
- Degree of protection
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB S201M-C1 is a 1-pole System pro M compact S200M miniature circuit breaker with C tripping characteristic and 1 A rated current, ABB order code 2CDS271001R0014. It has a rated short-circuit capacity Icn of 10 kA to IEC/EN 60898-1 and is also listed to IEC/EN 60947-2. ABB specifies the C characteristic for protecting circuits against overload and short circuit with resistive and inductive loads with low inrush current, in residential, commercial and industrial installations. The S200 range has a red/green contact position indicator and finger-proof (IP20) twin terminals for cables up to 35 mm².
Technical reference
| Product name | ABB S201M-C1 S200M Miniature Circuit Breaker 1P C1A |
|---|---|
| Brand | ABB |
| Model | S201M-C1 |
| Category | Circuit Protection |
| Width | 17.5 (1 module) mm |
| Order code | 2CDS271001R0014 |
| Number of poles | 1P |
| Rated current In | 1 A |
| Degree of protection | IP20 |
| Energy limiting class | 3 |
| Tripping characteristic | C |
| Rated operational voltage | 230 V AC (IEC 60898-1) |
| Rated short-circuit capacity (IEC/EN 60898-1) | 10 kA |
