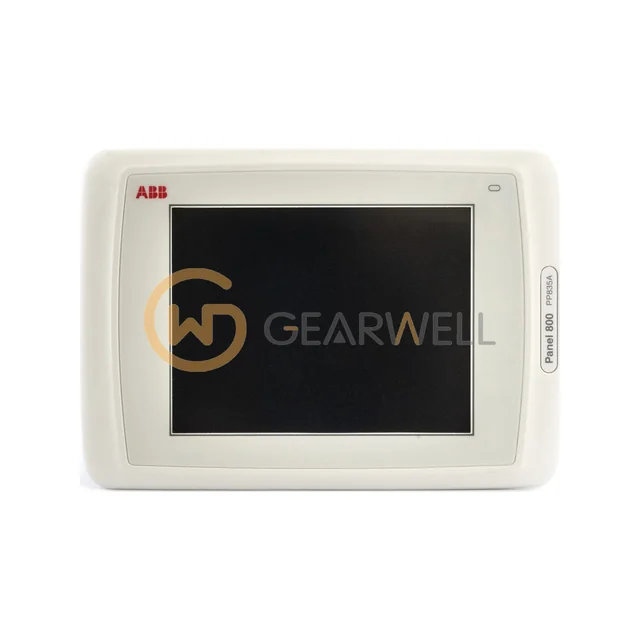

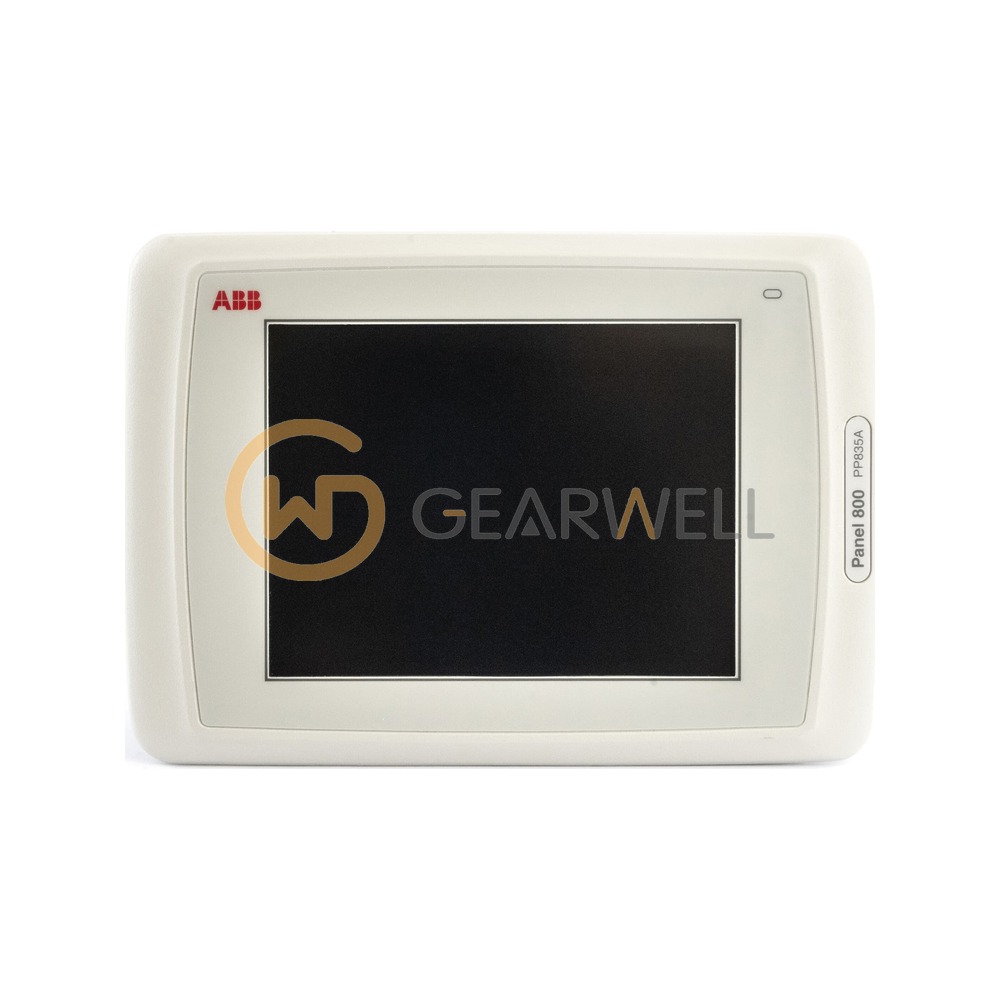

ABB PP835A Panel 800 (Version 5.1) Touch panel 6.5"
- Brand
- ABB
- Model
- PP835A
- GEARWELL SKU
- GWP-000014921
- Category
- HMIs & Industrial PCs
Key specifications
- Display
- TFT-LCD, 640 x 480 pixels, 64K colors, LED backlight
- Power supply
- +24 V DC (20-30 V DC)
- Mounting depth
- 56 mm
- Front panel seal
- IP66
- Front panel (W x H x D)
- 219 x 154 x 6 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PP835A is the PP835A touch panel of the ABB Panel 800 range, with a TFT-LCD of 640 x 480 pixels, 64K colors and LED backlight, and a rechargeable real time clock battery. It has an RS422/RS485 serial port on a 25-pin D-sub, an RS232C port on a 9-pin D-sub, a shielded RJ 45 Ethernet port, USB host type A and device type B ports, a Compact flash slot (type I and II) and 12 MB flash memory for the application. The front panel measures 219 x 154 x 6 mm and is sealed to IP 66 (rear IP 20); supply is +24V DC (20 - 30V DC), ambient temperature is 0 °C to +50 °C for vertical installation and weight is 1.2 kg.
Technical reference
| Product name | ABB PP835A Panel 800 (Version 5.1) Touch panel 6.5" |
|---|---|
| Brand | ABB |
| Model | PP835A |
| Category | HMIs & Industrial PCs |
| Display | TFT-LCD, 640 x 480 pixels, 64K colors, LED backlight |
| Power supply | +24 V DC (20-30 V DC) |
| Mounting depth | 56 mm |
| Front panel seal | IP66 |
| Front panel (W x H x D) | 219 x 154 x 6 mm |
| Real time clock battery | Rechargeable battery |
| Active display area (W x H) | 131.5 x 98.6 mm |
