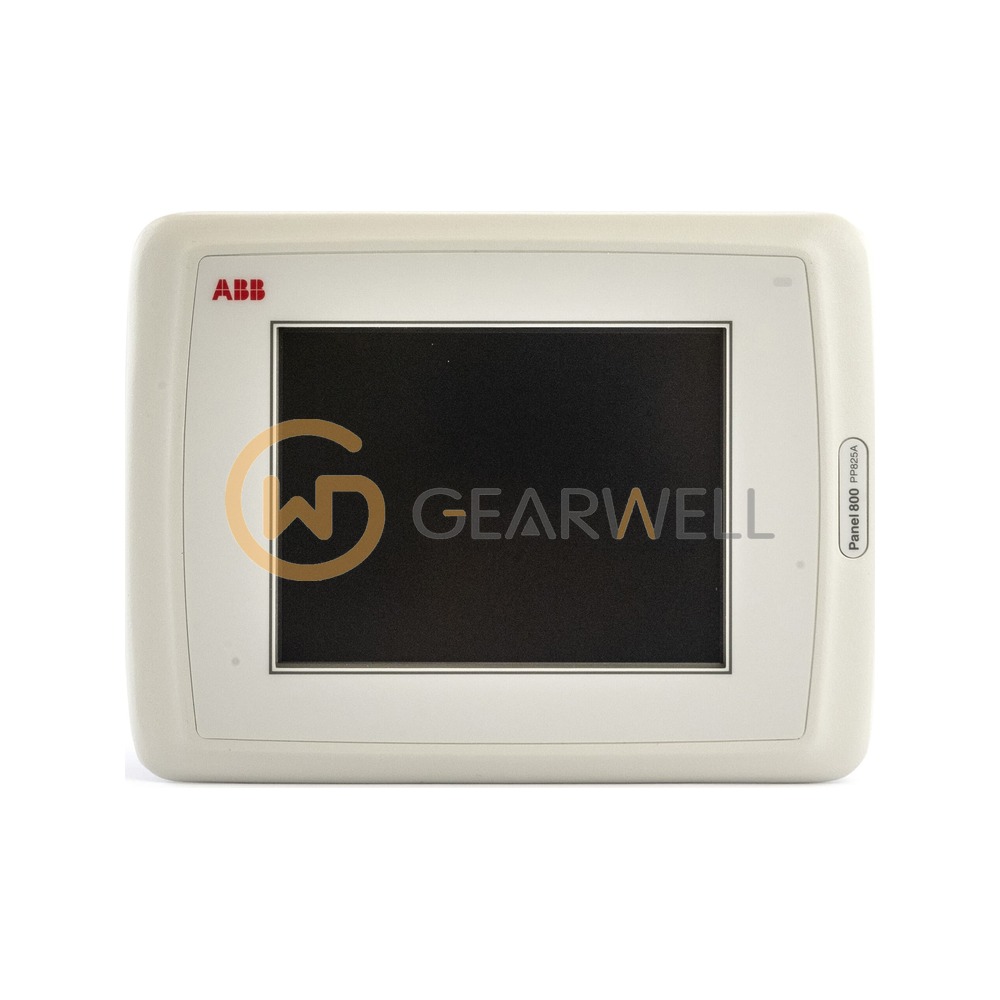

ABB PP825A Panel 800 (Version 5.1) Touch panel 5.7"
- Brand
- ABB
- Model
- PP825A
- GEARWELL SKU
- GWP-000014920
- Category
- HMIs & Industrial PCs
Key specifications
- Resolution
- 320 x 240 pixels
- Touch type
- Resistive
- Display size
- 5.7 in
- Power supply
- +24 V DC (20-30 V DC)
- Front panel seal
- IP66
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PP825A is the PP825A touch panel of the ABB Panel 800 range, with a TFT-LCD of 320 x 240 pixels, 64K colors / 16 greyscales and LED backlight. It has an RS422/RS485 serial port on a 25-pin D-sub, an RS232C port on a 9-pin D-sub, a shielded RJ 45 Ethernet port, a USB host type A port and 12 MB flash memory for the application. The front panel measures 202 x 152 x 6 mm and is sealed to IP 66 (rear IP 20); supply is +24V DC (20 - 30V DC), ambient temperature is 0 °C to +50 °C for vertical installation and weight is 0.9 kg.
Technical reference
| Product name | ABB PP825A Panel 800 (Version 5.1) Touch panel 5.7" |
|---|---|
| Brand | ABB |
| Model | PP825A |
| Category | HMIs & Industrial PCs |
| Resolution | 320 x 240 pixels |
| Touch type | Resistive |
| Display size | 5.7 in |
| Power supply | +24 V DC (20-30 V DC) |
| Front panel seal | IP66 |
| Product net weight | 1.27 kg |
| Front panel (W x H x D) | 202 x 152 x 6 mm |
| Power consumption at rated voltage | Normal 0.2 / max. 0.4 A |
