ABB PM866AK01 AC 800M Processor unit kit
- Brand
- ABB
- Model
- PM866AK01
- GEARWELL SKU
- GWP-000014690
- Category
- PLCs & I/O
Key specifications
- Memory
- 64 MB
- Replaces
- 3BSE050198R1 (PM866K01)
- Kit contents
- PM866A CPU, TP830, TB850, TB807, TB852, battery 4943013-6
- CPU clock frequency
- 133 MHz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

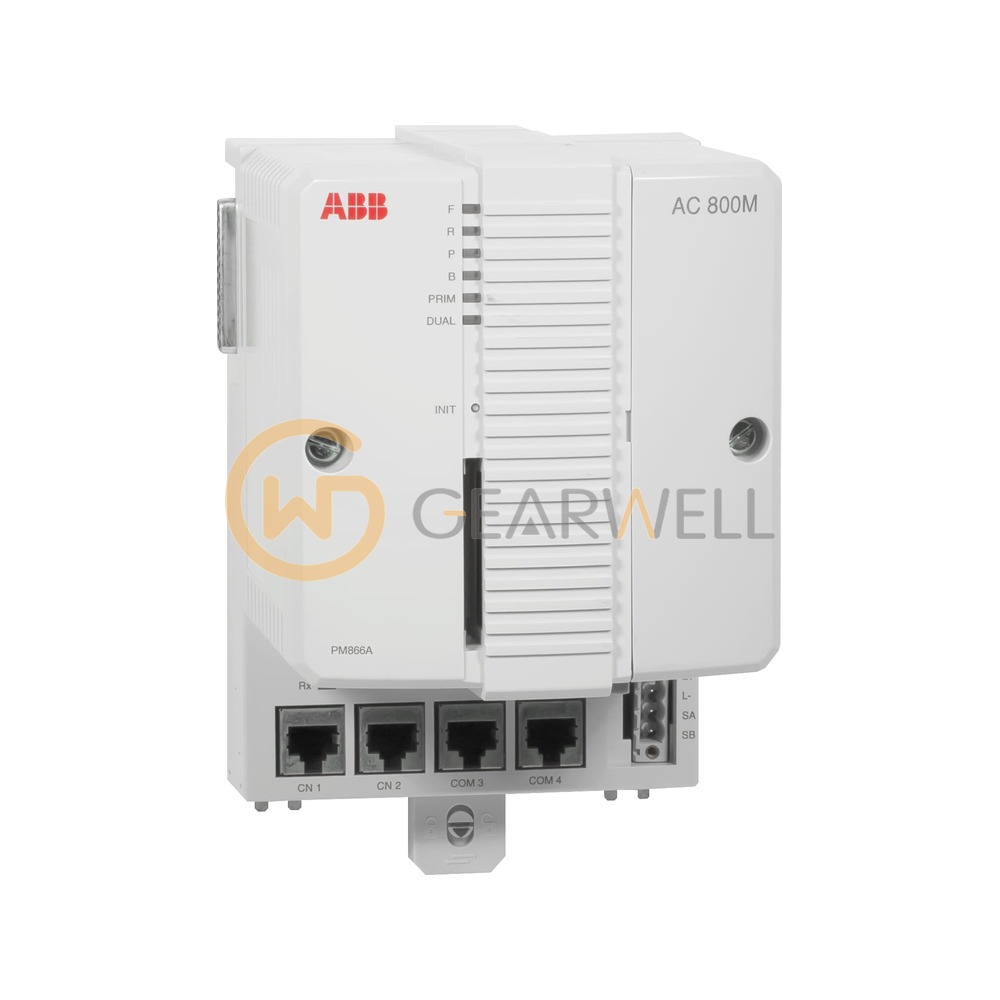

The ABB PM866AK01 is a processor unit for the AC 800M controller: one PM866A CPU (article 3BSE076939R1) with the required optional items. The CPU has an MPC866 processor at 133 MHz and 64 MB RAM, executes 1000 boolean operations in 0.09 ms and supports CPU redundancy with a switch-over time of max 10 ms. Power consumption is 210/360 mA typical/max at +24 V and the unit weighs 1200 g with its base. It runs on 24 V DC (19.2-30 V DC), is rated IP20 and +5 to +55 °C operating, and has two Ethernet channels for the control network.
Technical reference
| Product name | ABB PM866AK01 AC 800M Processor unit kit |
|---|---|
| Brand | ABB |
| Model | PM866AK01 |
| Category | PLCs & I/O |
| Memory | 64 MB |
| Replaces | 3BSE050198R1 (PM866K01) |
| Kit contents | PM866A CPU, TP830, TB850, TB807, TB852, battery 4943013-6 |
| CPU clock frequency | 133 MHz |
