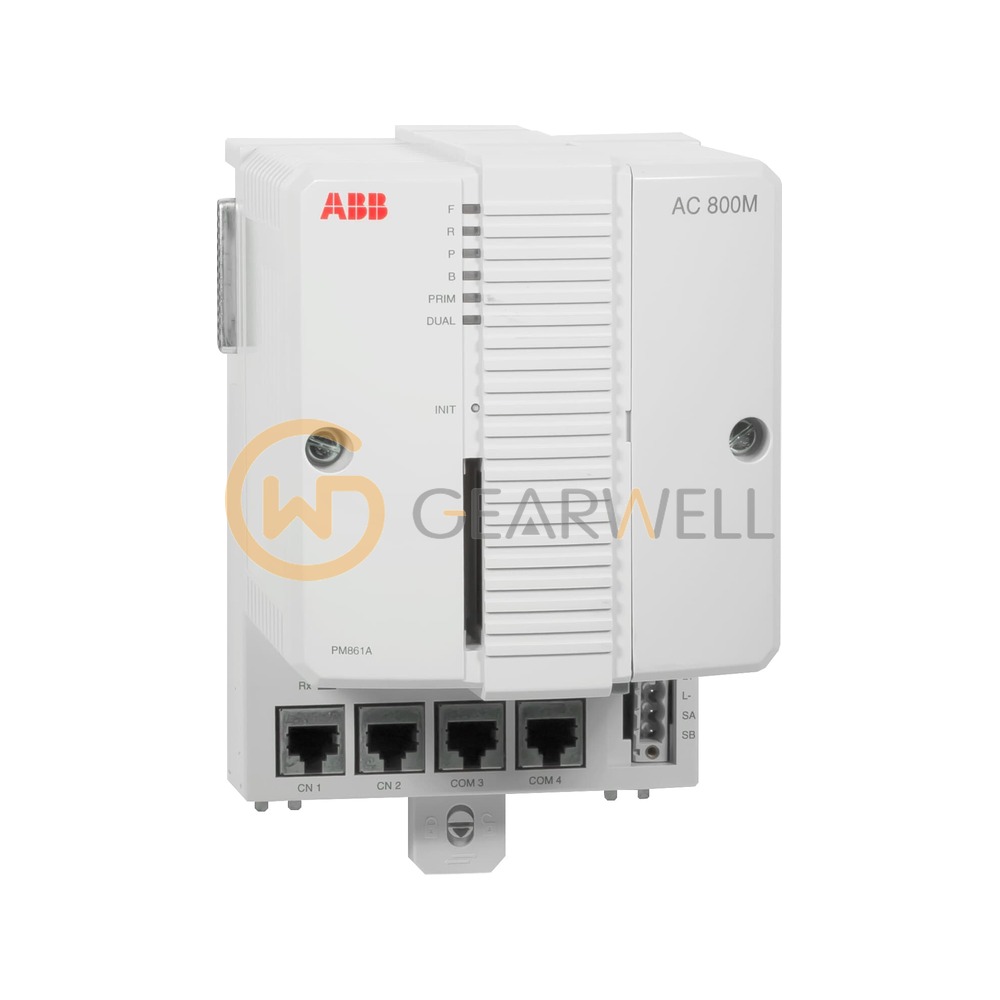

ABB PM861AK01 ABB AC 800M controller / S800 I/O Processor unit kit
- Brand
- ABB
- Model
- PM861AK01
- GEARWELL SKU
- GWP-000014430
- Category
- PLCs & I/O
Key specifications
- Package
- PM861A CPU, TP830 baseplate, TB850, TB807, TB852, backup battery
- Type designation
- PM861AK01
- Product net width
- 119 mm
- Product net height
- 186 mm
- Product net weight
- 1.2 kg
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PM861AK01 is a processor unit for the AC 800M controller: one PM861A CPU with the required optional items. The CPU has an MPC860 processor at 48 MHz and 16 MB RAM, executes 1000 boolean operations in 0.23 ms, supports CPU redundancy with a switch-over time of max 10 ms and takes up to 12 communication modules on the CEX bus. Power consumption is 250/430 mA typical/max at +24 V. It runs on 24 V DC (19.2-30 V DC), is rated IP20 and +5 to +55 °C operating, and has two Ethernet channels for the control network.
Technical reference
| Product name | ABB PM861AK01 ABB AC 800M controller / S800 I/O Processor unit kit |
|---|---|
| Brand | ABB |
| Model | PM861AK01 |
| Category | PLCs & I/O |
| Package | PM861A CPU, TP830 baseplate, TB850, TB807, TB852, backup battery |
| Type designation | PM861AK01 |
| Product net width | 119 mm |
| Product net height | 186 mm |
| Product net weight | 1.2 kg |
| Product net depth/length | 135 mm |
