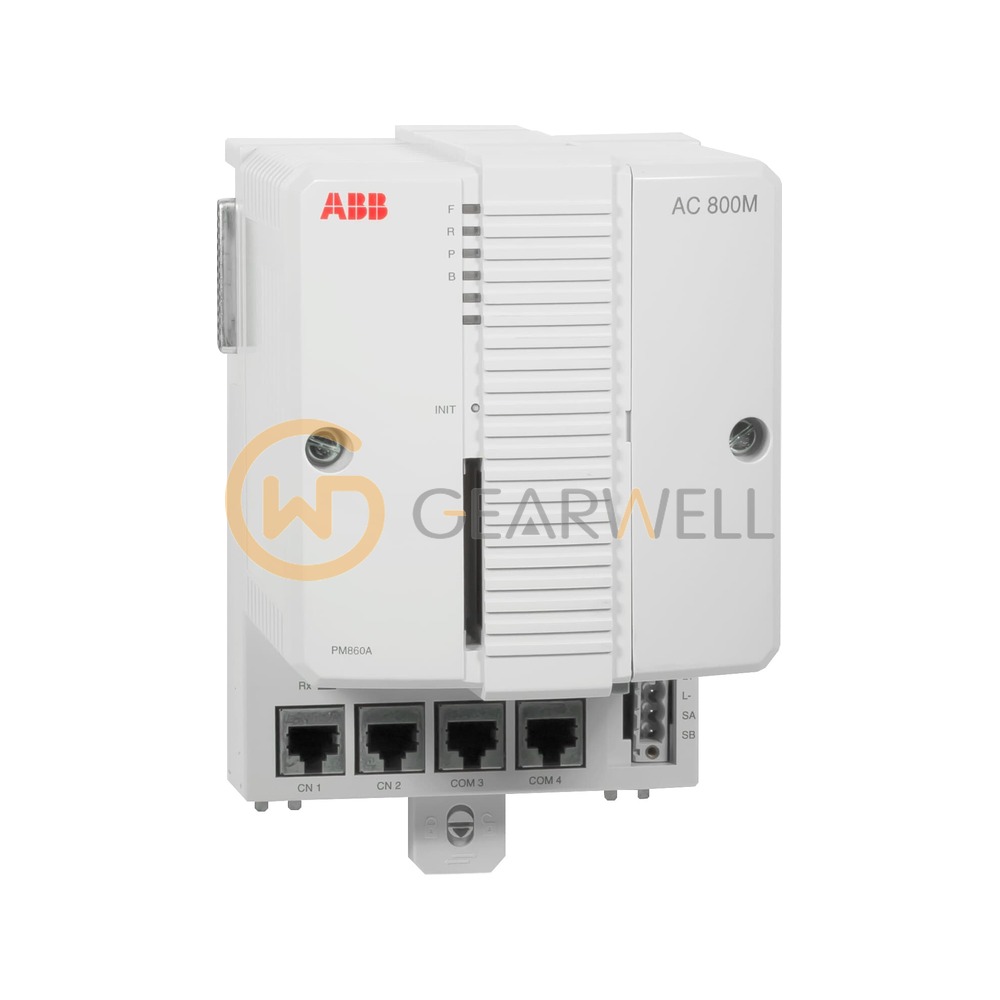

ABB PM860AK01 AC 800M Processor unit kit
- Brand
- ABB
- Model
- PM860AK01
- GEARWELL SKU
- GWP-000014689
- Category
- PLCs & I/O
Key specifications
- Memory
- 16 MB
- Weight
- 1.1 kg
- Kit contents
- PM860A CPU, TP830, TB850, TB807, battery 4943013-6
- CPU clock frequency
- 48 MHz
- Dimensions (W x H x D)
- 140 x 200 x 160 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PM860AK01 is a processor unit for the AC 800M controller: one PM860A CPU (article 3BSE066495R1) with the required optional items. The CPU has an MPC860 processor at 48 MHz, executes 1000 boolean operations in 0.23 ms, takes up to 12 communication modules on the CEX bus and does not support CPU redundancy. Power consumption is 180/300 mA typical/max at +24 V. It runs on 24 V DC (19.2-30 V DC), is rated IP20 and +5 to +55 °C operating, and has two Ethernet channels for the control network.
Technical reference
| Product name | ABB PM860AK01 AC 800M Processor unit kit |
|---|---|
| Brand | ABB |
| Model | PM860AK01 |
| Category | PLCs & I/O |
| Memory | 16 MB |
| Weight | 1.1 kg |
| Kit contents | PM860A CPU, TP830, TB850, TB807, battery 4943013-6 |
| CPU clock frequency | 48 MHz |
| Dimensions (W x H x D) | 140 x 200 x 160 mm |
