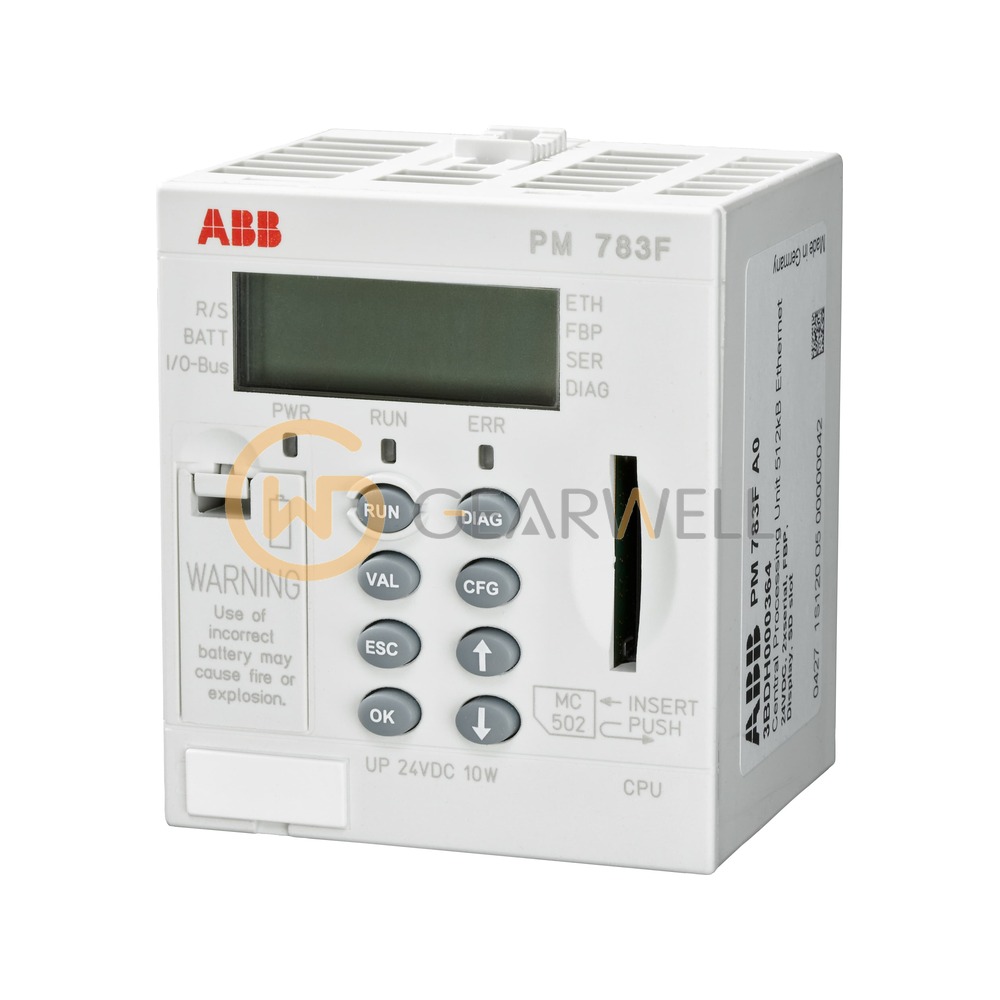

ABB PM 783F Freelance AC 700F CPU module
- Brand
- ABB
- Model
- PM 783F
- GEARWELL SKU
- GWP-000014919
- Category
- PLCs & I/O
Key specifications
- Memory
- 10 MB, of which 2 MB battery-backed
- Ethernet
- 100 Mbit/s, on-board
- Power supply
- external 24 V DC
- Serial interfaces
- 2 (Modbus / diagnostics)
- Product net weight
- 0.15 kg
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PM 783F is the Freelance AC 700F central processing unit PM 783F (article no. 3BDH000364R0005) with 2 MB battery-backed program memory, 8 MB SDRAM and 4 MB FLASH ROM, and processing times of 0.71 ms per 1000 binary instructions. It handles up to 8 direct I/O modules, 8 cyclic tasks plus 1 PLC type task, has 1 x Ethernet (RJ45) 100 Mbit/s for Modbus TCP and IEC 60870-5-104 and a configurable RS-232 / RS-485 serial interface, and needs 24 V DC (10 W max.). The TB 711F terminal base and TA521 battery are not included.
Technical reference
| Product name | ABB PM 783F Freelance AC 700F CPU module |
|---|---|
| Brand | ABB |
| Model | PM 783F |
| Category | PLCs & I/O |
| Memory | 10 MB, of which 2 MB battery-backed |
| Ethernet | 100 Mbit/s, on-board |
| Power supply | external 24 V DC |
| Serial interfaces | 2 (Modbus / diagnostics) |
| Product net weight | 0.15 kg |
| Product net width x height x depth | 67.5 x 76 x 54 mm |
| Max. directly connected S700 I/O modules | 8 |
