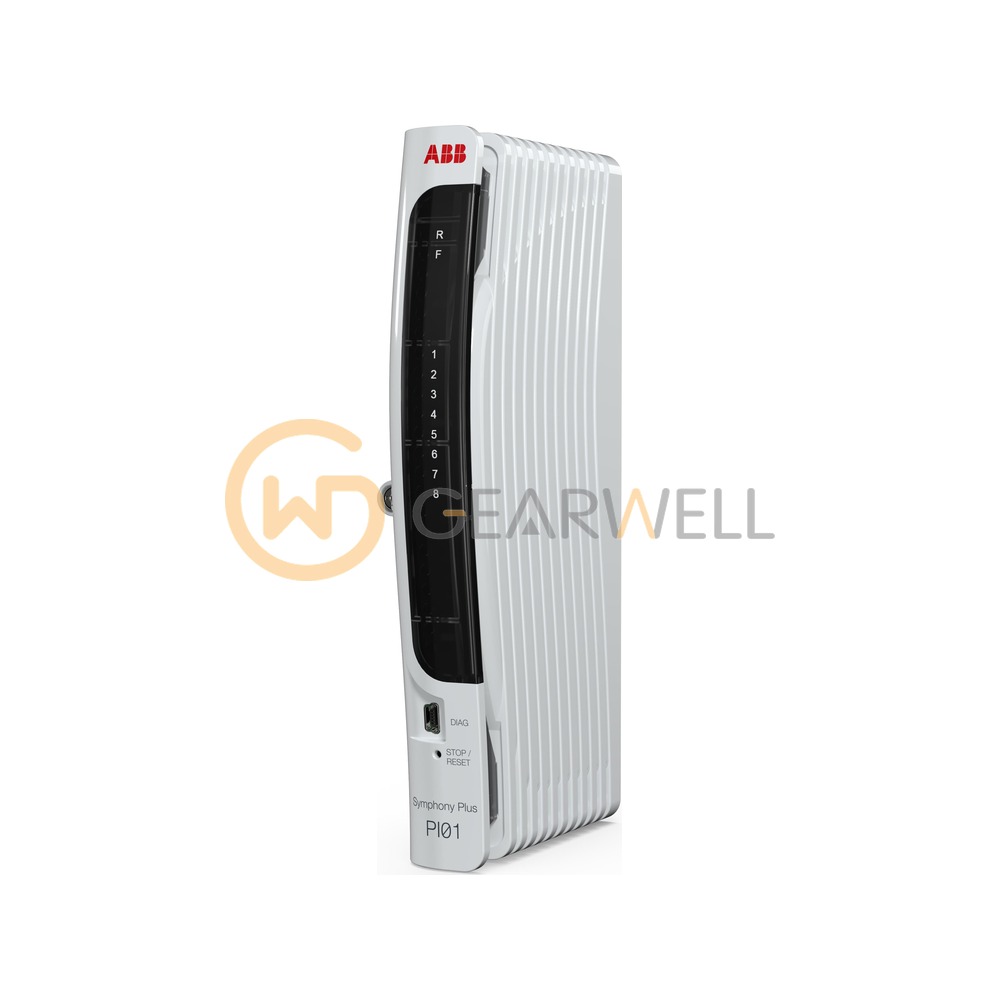

ABB PI01 Pulse/frequency input module, 8 channels
- Brand
- ABB
- Model
- PI01
- GEARWELL SKU
- GWP-000014684
- Category
- PLCs & I/O
Key specifications
- Base
- xBS01-FPH, xBS01-FPN or xBS01-EPD
- Channels
- 8
- Isolation
- Individual channels isolated
- Net weight
- 0.223 kg
- Frequency range
- 0.5 Hz - 100 kHz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PI01 is the Symphony Plus SD Series PI01 pulse input module, which processes eight pulsed field inputs. Each channel is optically isolated and accepts 24 VDC, and the module works in period, frequency, totalize or duration mode depending on the function code. It is used with HBS01-FPH, HBS01-FPN, HBS01-EPD, VBS01-FPH or VBS01-EPD bases.
Technical reference
| Product name | ABB PI01 Pulse/frequency input module, 8 channels |
|---|---|
| Brand | ABB |
| Model | PI01 |
| Category | PLCs & I/O |
| Base | xBS01-FPH, xBS01-FPN or xBS01-EPD |
| Channels | 8 |
| Isolation | Individual channels isolated |
| Net weight | 0.223 kg |
| Frequency range | 0.5 Hz - 100 kHz |
| Dimensions (H x W x D) | 118 x 34 x 190 mm |
