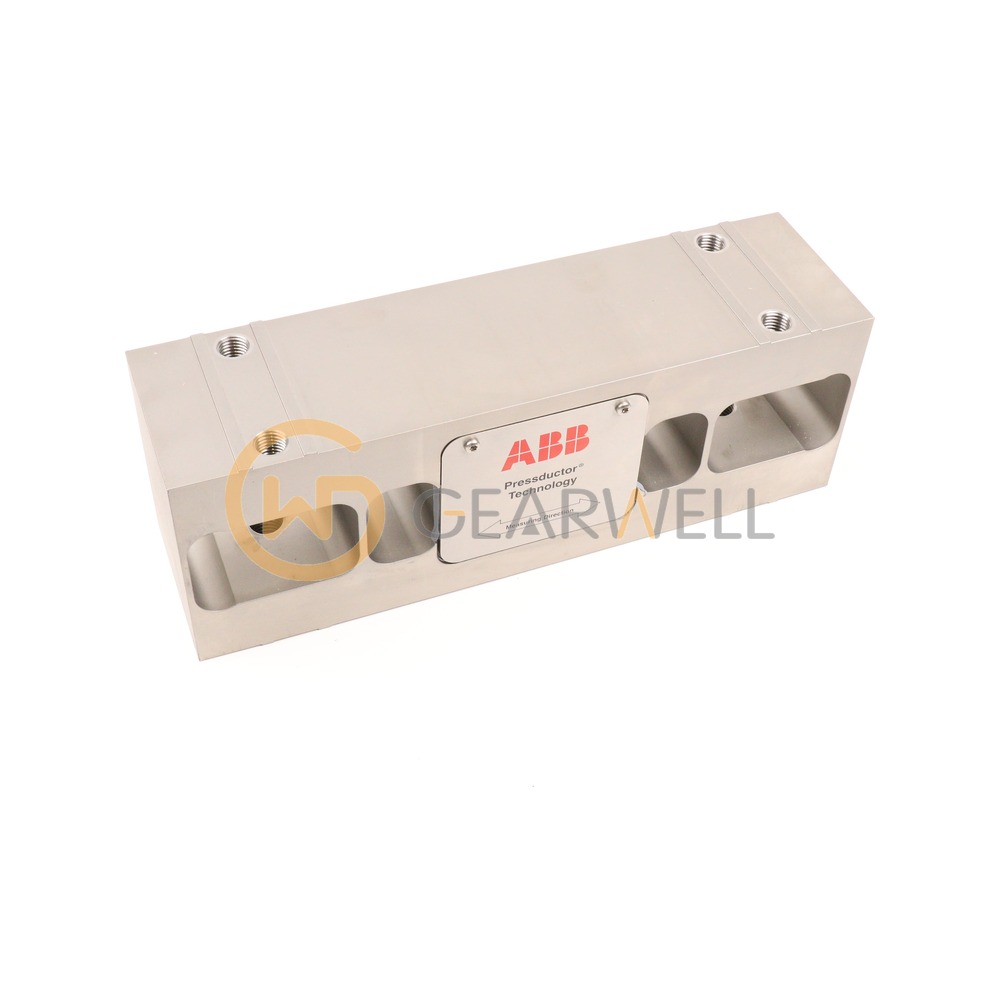

ABB PFTL 101B-2.0kN Pillow block load cell, horizontal measuring, 2.0 kN
- Brand
- ABB
- Model
- PFTL 101B-2.0kN
- GEARWELL SKU
- GWP-000014916
- Category
- Test & Measurement
Key specifications
- Weight
- 20 kg
- Material
- Stainless steel SIS 2383 / AISI 430F
- Accuracy class
- ±0.5 %
- Spring constant
- 130 kN/mm
- Dimensions (L x W x H)
- 360 x 104 x 125 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ABB PFTL 101B-2.0kN Pillow block load cell, horizontal measuring, 2.0 kN |
|---|---|
| Brand | ABB |
| Model | PFTL 101B-2.0kN |
| Category | Test & Measurement |
| Weight | 20 kg |
| Material | Stainless steel SIS 2383 / AISI 430F |
| Accuracy class | ±0.5 % |
| Spring constant | 130 kN/mm |
| Dimensions (L x W x H) | 360 x 104 x 125 mm |
| Working temperature range | -10 ... +105 °C |
| Nominal load in measuring direction | 2.0 kN |
| Max load in measurement direction without permanent change | 10 kN |
