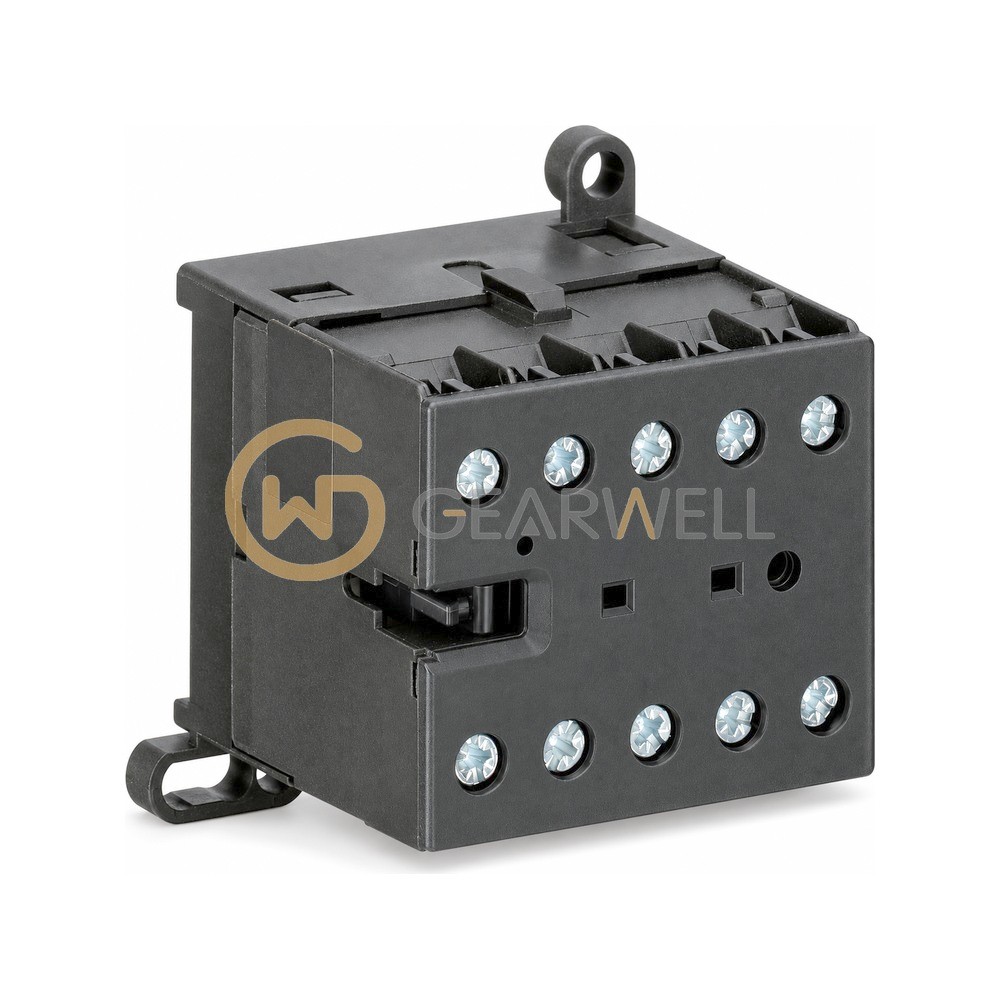

ABB K6-31Z K6 Mini Contactor Relay 3NO+1NC
- Brand
- ABB
- Model
- K6-31Z
- GEARWELL SKU
- GWP-000013257
- Category
- Contactors & Starters
Key specifications
- Contacts
- 3 NO + 1 NC (4-pole)
- Net weight
- 0.175 kg
- Coil voltage
- not given in collected code K6-31Z
- Coil voltage options
- AC24V (-01) / AC42V (-02) / AC60V (-22) / AC100V (-27) / AC220-240V (-80) / AC380-415V (-85) (specify on order)
- Dimensions (W x H x D)
- 52.5 x 57.5 x 46.5 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB K6-31Z is a K6 mini contactor relay with screw connection for AC operation (3.5 VA), with 3 NO + 1 NC auxiliary contacts rated AC15 4 A at 220-240 V, 3 A at 380-440 V and 2 A at 500 V. The order code is GJH 121 1001 R followed by the coil voltage code and 31; weight is 0.180 kg.
Technical reference
| Product name | ABB K6-31Z K6 Mini Contactor Relay 3NO+1NC |
|---|---|
| Brand | ABB |
| Model | K6-31Z |
| Category | Contactors & Starters |
| Contacts | 3 NO + 1 NC (4-pole) |
| Net weight | 0.175 kg |
| Coil voltage | not given in collected code K6-31Z |
| Coil voltage options | AC24V (-01) / AC42V (-02) / AC60V (-22) / AC100V (-27) / AC220-240V (-80) / AC380-415V (-85) (specify on order) |
| Dimensions (W x H x D) | 52.5 x 57.5 x 46.5 mm |
| Rated insulation voltage | 690 V |
| Rated operational current AC-15 (24 V) | 4 A |
| Conventional free-air thermal current | 6 A |
