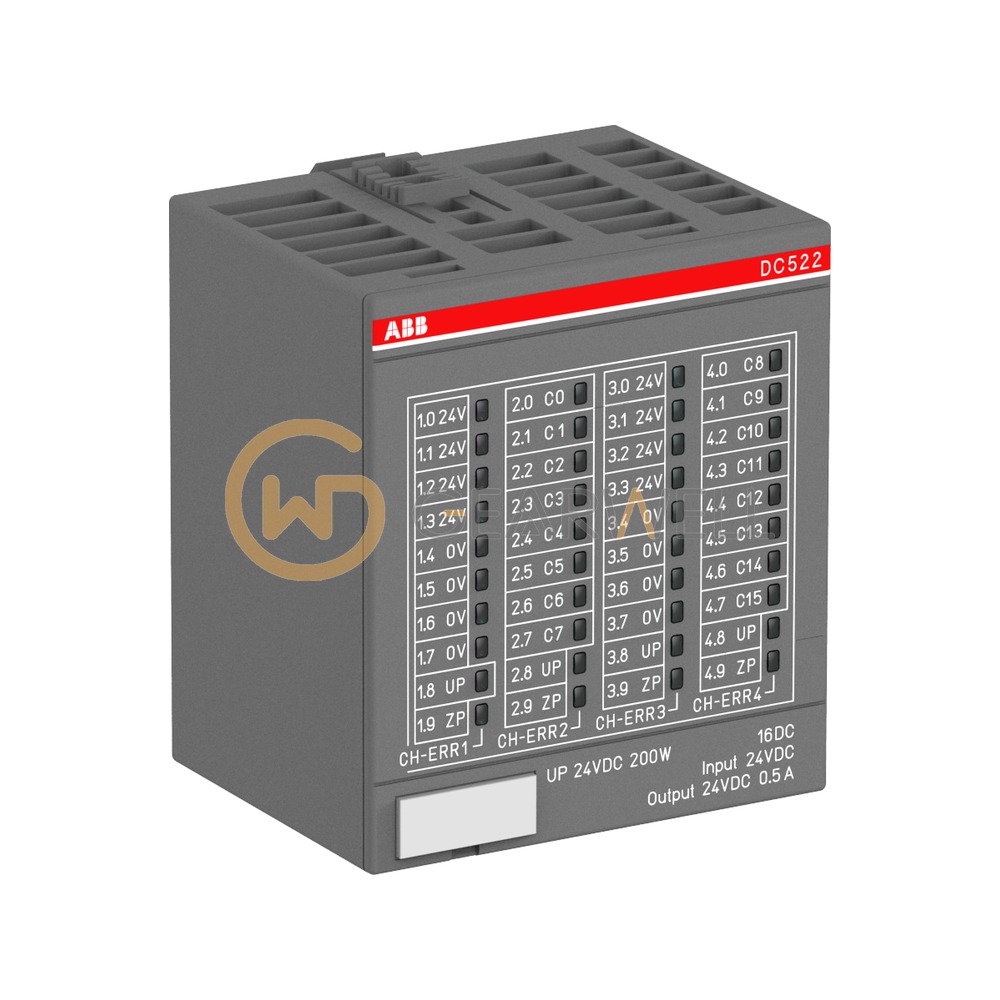

ABB DC522 1SAP240600R0001 S500 Digital I/O Module
- Brand
- ABB
- Model
- DC522
- GEARWELL SKU
- GWP-000007767
- Category
- PLCs & I/O
Key specifications
- Voltage
- 24 V DC
- Net weight
- 0.102 kg
- Order code
- 1SAP240600R0001
- Output current
- 0.5 A
- Configurable DI/DO
- 16
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB DC522 is an S500 digital module (order code 1SAP240600R0001) with 16 channels that can each be configured as a 24 V DC input or a 24 V DC, 0.5 A transistor output. It is used for central expansion of AC500 and AC500-eCo CPUs or with communication interface modules, mounts on the TU515 (screw) or TU516 (spring) terminal unit and weighs 0.200 kg.
Technical reference
| Product name | ABB DC522 1SAP240600R0001 S500 Digital I/O Module |
|---|---|
| Brand | ABB |
| Model | DC522 |
| Category | PLCs & I/O |
| Voltage | 24 V DC |
| Net weight | 0.102 kg |
| Order code | 1SAP240600R0001 |
| Output current | 0.5 A |
| Configurable DI/DO | 16 |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 67.5 x 76 x 62 mm |
