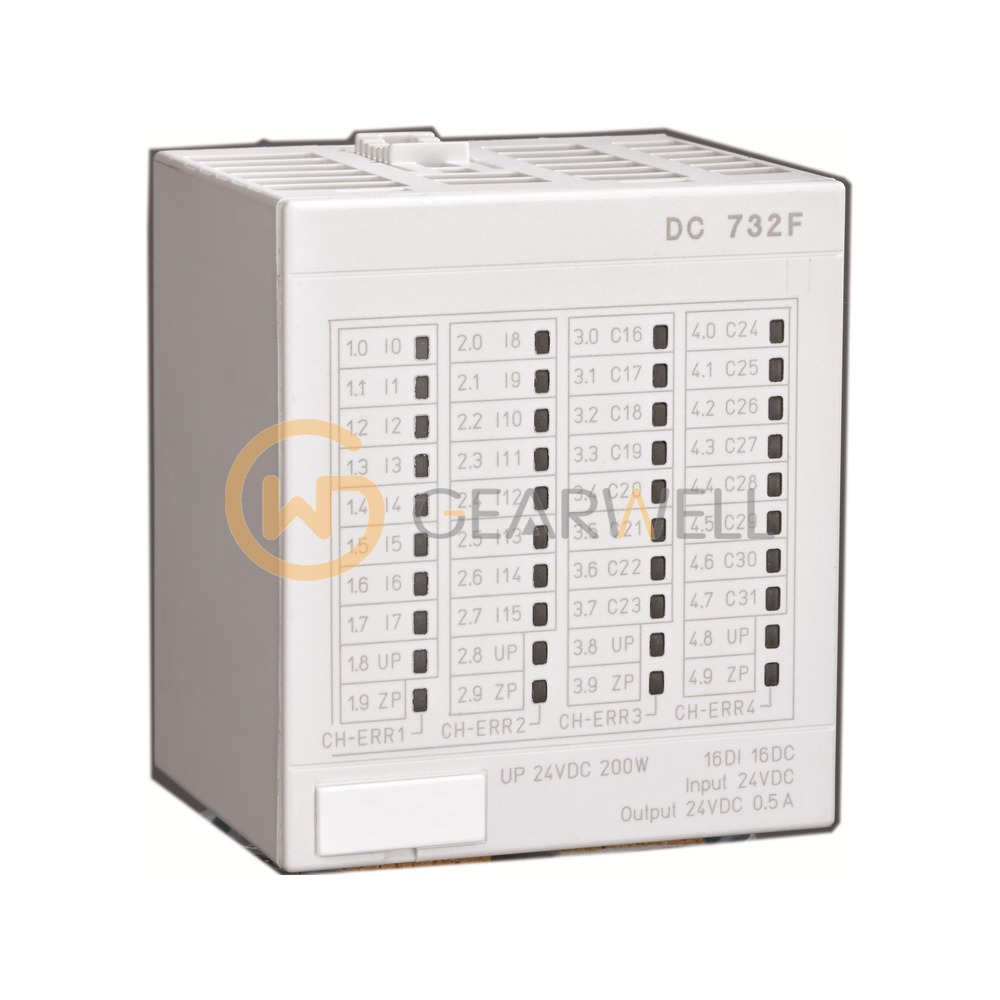

ABB DC 732F Digital input/output module 16 DI + 16 DI/DO
- Brand
- ABB
- Model
- DC 732F
- GEARWELL SKU
- GWP-000014873
- Category
- PLCs & I/O
Key specifications
- Input delay
- typ. 8 (configurable 0.1 ... 32) ms
- Digital inputs
- 16 (24 V DC)
- Process supply
- 24 V DC
- Weight (without TU)
- approx. 125 g
- Configurable DI/DO
- 16 (24 V DC / 0.5 A)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB DC 732F is the Freelance S700 DC 732F digital input / output module (article no. 3BDH000375R0001) with 32 channels: 16 digital inputs and 16 channels configurable as input or output, 24 VDC / 0.5 A. It is used as PROFIBUS remote I/O or as direct I/O for AC 700F and AC 900F, and takes its 24 VDC process voltage through the ZP and UP terminals of the TU 715F terminal unit (not included).
Technical reference
| Product name | ABB DC 732F Digital input/output module 16 DI + 16 DI/DO |
|---|---|
| Brand | ABB |
| Model | DC 732F |
| Category | PLCs & I/O |
| Input delay | typ. 8 (configurable 0.1 ... 32) ms |
| Digital inputs | 16 (24 V DC) |
| Process supply | 24 V DC |
| Weight (without TU) | approx. 125 g |
| Configurable DI/DO | 16 (24 V DC / 0.5 A) |
| Max. power dissipation | 6 (outputs unloaded) W |
| Dimensions (W x H x D, without TU) | 67.5 x 76 x 54 mm |
