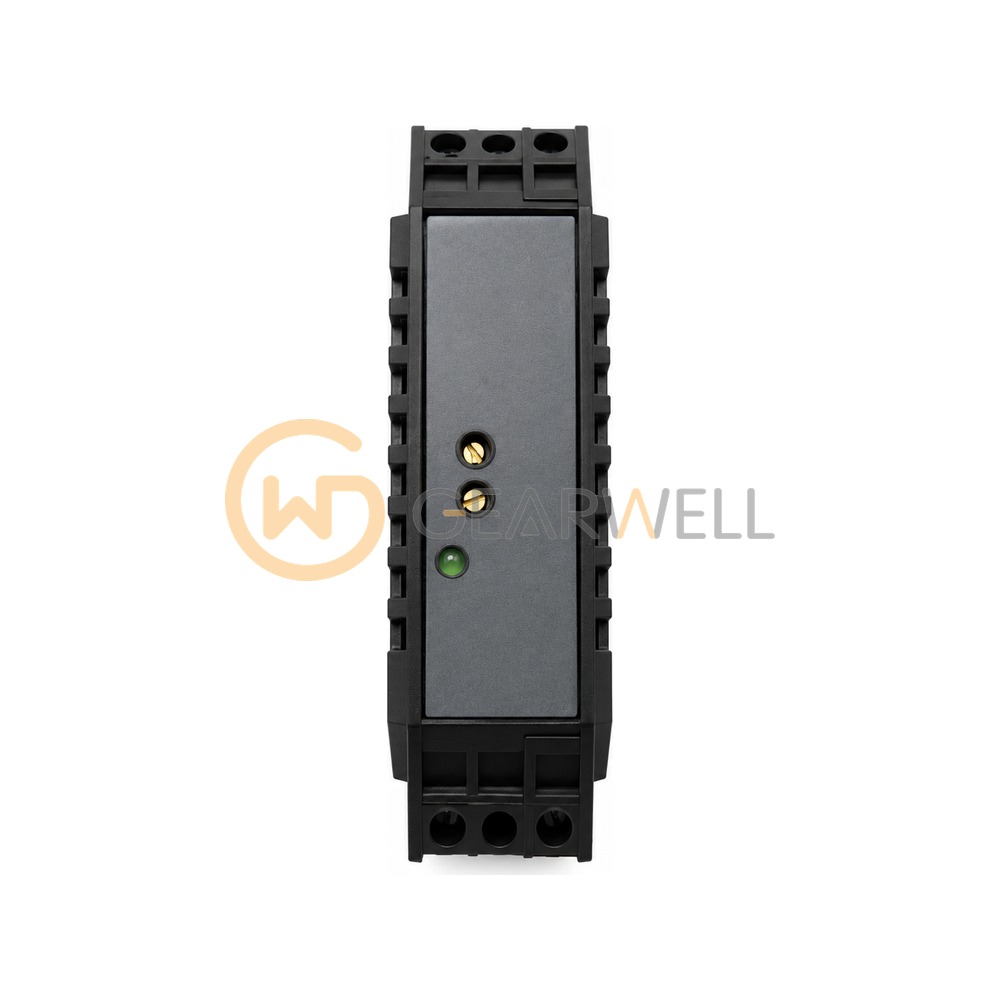

ABB CC-E/STD CC-E signal converters Universal analog signal converter
- Brand
- ABB
- Model
- CC-E/STD
- GEARWELL SKU
- GWP-000014669
- Category
- Relays & Controllers
Key specifications
- Isolation
- 3-way
- Adjustment
- Gain/offset potentiometers
- Input ranges
- 0-5 V, 0-10 V, 0-20 mA, 4-20 mA
- Output ranges
- 0-5 V, 0-10 V, 0-20 mA, 4-20 mA
- Supply voltage
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CC-E/STD is the universal analog signal converter of the ABB CC-E range, with 3-way electrical isolation between input, output and supply. The input and output ranges (0-5 V, 0-10 V, 0-20 mA, 4-20 mA) are set with DIP switches on the side, and gain and offset can each be adjusted by ±5 % on the front. ABB lists it as 1SVR011700R0000 for 24 V DC supply and 1SVR011705R2100 for 110-240 V AC. Accuracy is ± 0.5 % of full-scale; it snaps onto a DIN rail and is IP20.
Technical reference
| Product name | ABB CC-E/STD CC-E signal converters Universal analog signal converter |
|---|---|
| Brand | ABB |
| Model | CC-E/STD |
| Category | Relays & Controllers |
| Isolation | 3-way |
| Adjustment | Gain/offset potentiometers |
| Input ranges | 0-5 V, 0-10 V, 0-20 mA, 4-20 mA |
| Output ranges | 0-5 V, 0-10 V, 0-20 mA, 4-20 mA |
| Supply voltage | 24 V DC |
