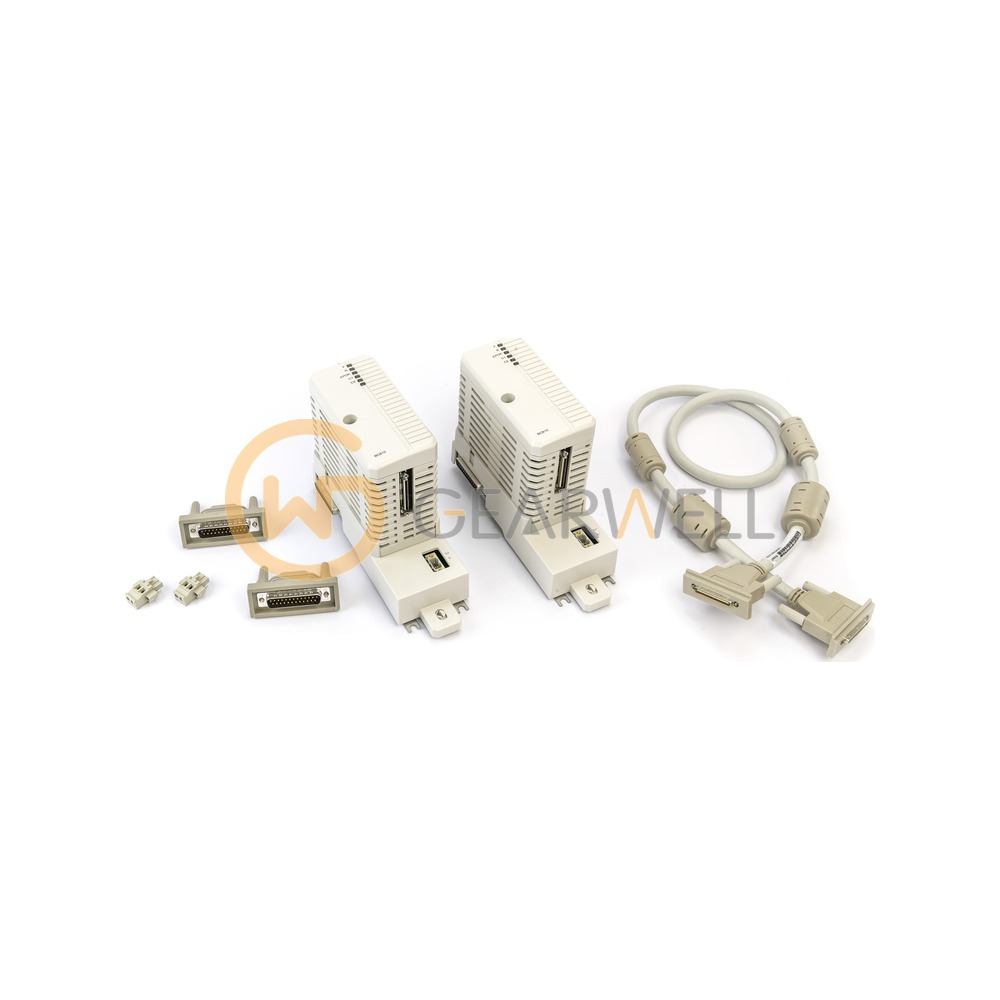

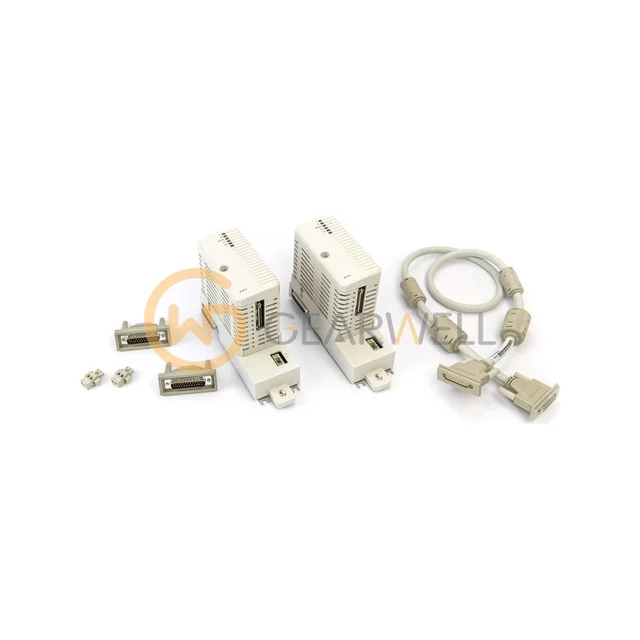

ABB BC810K02 AC 800M CEX-bus interconnection unit kit (2 units)
- Brand
- ABB
- Model
- BC810K02
- GEARWELL SKU
- GWP-000014441
- Category
- Industrial Communication
Key specifications
- Kit content
- 2 x BC810, 2 x TP857, 1 x TK851 (1.0 m), 2 x TB850
- Power supply
- 24 V DC (19.2-30 V DC)
- Weight (package)
- 1.5 kg
- Power dissipation
- 1.2 typical W
- Current consumption
- 50 typical (70 max) mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB BC810K02 is a package of the BC810 CEX-bus interconnection unit (article 3BSE031155R1) for redundant AC 800M controllers. The BC810 supports redundancy and High Integrity controllers and is hot swappable; it runs on 24 V nominal (19.2 V DC to 30 V DC), draws 50 mA typical (70 mA max) and dissipates 1.2 W. It is rated IP20 and +5 to +55 °C operating, and the BC810K02 package weighs 1.5 kg.
Technical reference
| Product name | ABB BC810K02 AC 800M CEX-bus interconnection unit kit (2 units) |
|---|---|
| Brand | ABB |
| Model | BC810K02 |
| Category | Industrial Communication |
| Kit content | 2 x BC810, 2 x TP857, 1 x TK851 (1.0 m), 2 x TB850 |
| Power supply | 24 V DC (19.2-30 V DC) |
| Weight (package) | 1.5 kg |
| Power dissipation | 1.2 typical W |
| Current consumption | 50 typical (70 max) mA |
