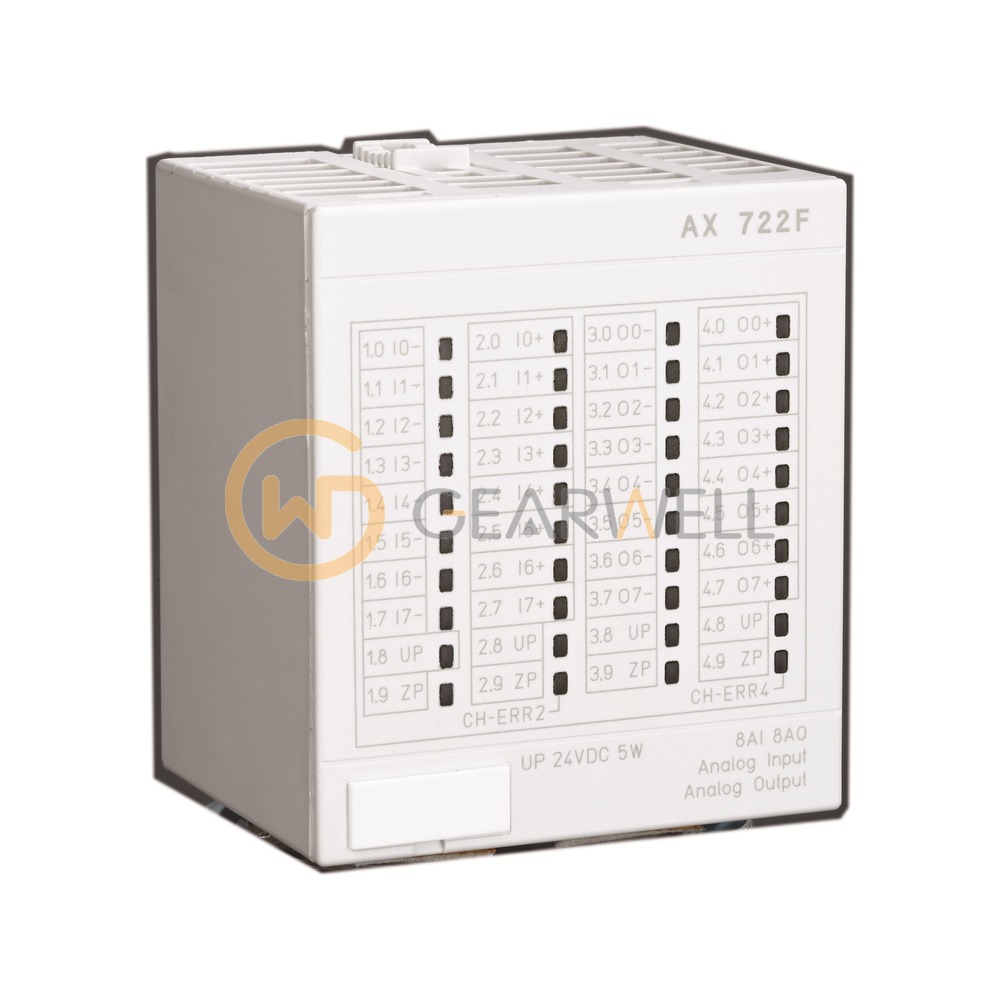

ABB AX 722F Freelance (S700 I/O) Analog input/output module
- Brand
- ABB
- Model
- AX 722F
- GEARWELL SKU
- GWP-000014780
- Category
- PLCs & I/O
Key specifications
- Supply
- 24 V DC
- Resolution
- 12 bit + sign
- Analog inputs
- 8 (+-10 V, 0/4-20 mA, RTD)
- Analog outputs
- 4 (0..+10 V, +-10 V, 0/4-20 mA) + 4 (+-10 V)
- Terminal units
- TU 715F / TU 716F
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB AX 722F is the Freelance S700 AX 722F analog input / output module (article no. 3BDH000377R0001) with 16 channels: eight configurable as inputs for voltage, current or Pt100 temperature, four as voltage (-10 V to +10 V) or current (0 … 20 mA or 4 … 20 mA) outputs and four as voltage outputs, at 12 bit + sign. It is used as PROFIBUS remote I/O or as direct I/O for AC 700F and AC 900F, mounts on the TU 715F or TU 716F terminal unit and needs software version 2013 SP1 RU04 or higher.
Technical reference
| Product name | ABB AX 722F Freelance (S700 I/O) Analog input/output module |
|---|---|
| Brand | ABB |
| Model | AX 722F |
| Category | PLCs & I/O |
| Supply | 24 V DC |
| Resolution | 12 bit + sign |
| Analog inputs | 8 (+-10 V, 0/4-20 mA, RTD) |
| Analog outputs | 4 (0..+10 V, +-10 V, 0/4-20 mA) + 4 (+-10 V) |
| Terminal units | TU 715F / TU 716F |
| Product net weight | 0.13 kg |
| Dimensions (W x D x H) | 67.5 x 54 x 76 mm |
