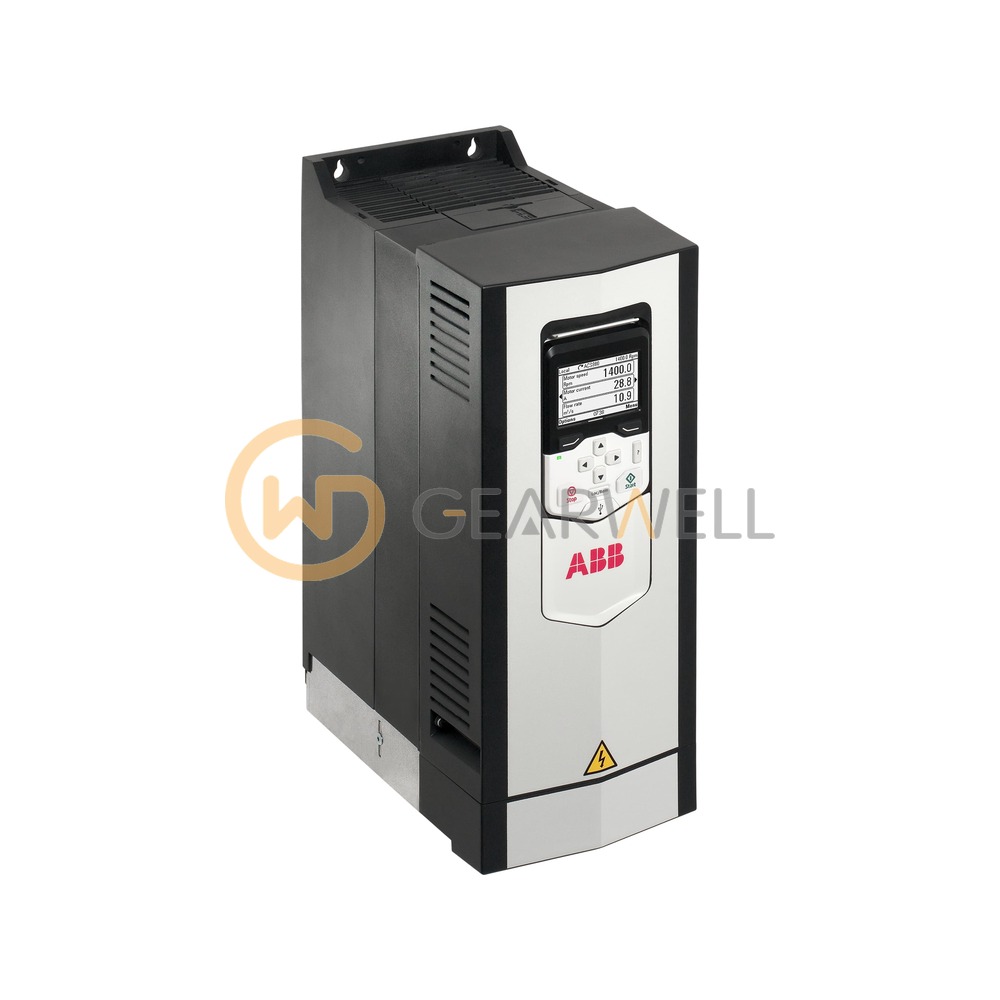

ABB ACS880-01-021A-5 ACS880 Wall-mounted AC Drive
- Brand
- ABB
- Model
- ACS880-01-021A-5
- GEARWELL SKU
- GWP-000007749
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R2
- Net weight
- 8 kg
- Product ID
- 3ABD00037810-D
- Degree of protection
- IP21
- Dimensions (W x H x D)
- 155 x 409 x 249 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS880-01-021A-5 is an ACS880-01 wall-mounted single drive for 380–500 V three-phase supplies, frame R2, rated 11 kW nominal power and 7.5 kW in heavy-duty use at 500 V. ABB builds the ACS880-01 with a harmonic filtering choke and a brake chopper as standard and IP21 as the standard enclosure for wall mounting; IP55, EMC filters, communication adapters and functional safety modules are available as options.
Technical reference
| Product name | ABB ACS880-01-021A-5 ACS880 Wall-mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS880-01-021A-5 |
| Category | Variable Frequency Drives |
| Frame size | R2 |
| Net weight | 8 kg |
| Product ID | 3ABD00037810-D |
| Degree of protection | IP21 |
| Dimensions (W x H x D) | 155 x 409 x 249 mm |
| Output power (normal use) | 11 kW |
| Output current (normal use) | 21 A |
