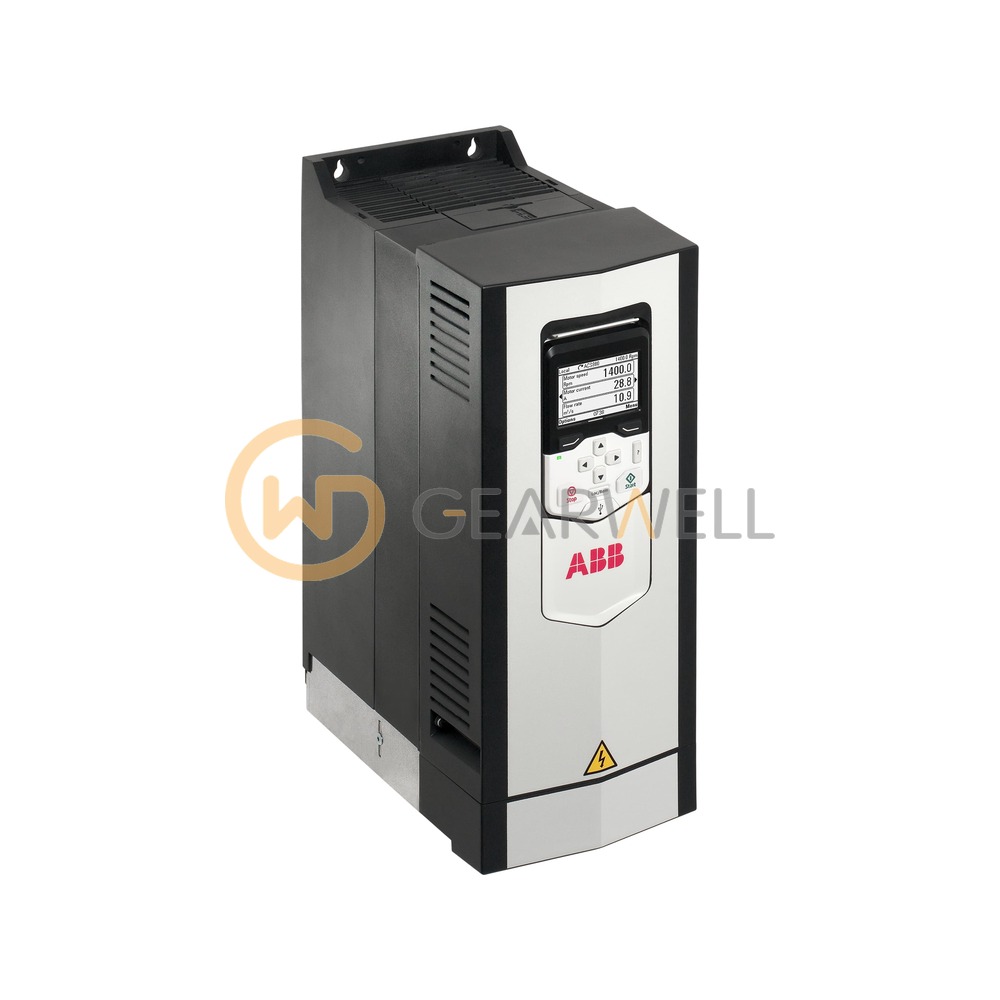

ABB ACS880-01-014A-5 ACS880 Wall-mounted Drive
- Brand
- ABB
- Model
- ACS880-01-014A-5
- GEARWELL SKU
- GWP-000011483
- Category
- Variable Frequency Drives
Key specifications
- Supply
- 3-phase, 380 ... 500 V
- Frame size
- R2
- Net weight
- 8.4 kg
- ABB product ID
- 3AUA0000090434
- Degree of protection
- IP21
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS880-01-014A-5 is an ACS880-01 wall-mounted single drive for 380–500 V three-phase supplies, frame R2, rated 7.5 kW nominal power and 5.5 kW in heavy-duty use at 500 V. ABB builds the ACS880-01 with a harmonic filtering choke and a brake chopper as standard and IP21 as the standard enclosure for wall mounting; IP55, EMC filters, communication adapters and functional safety modules are available as options.
Technical reference
| Product name | ABB ACS880-01-014A-5 ACS880 Wall-mounted Drive |
|---|---|
| Brand | ABB |
| Model | ACS880-01-014A-5 |
| Category | Variable Frequency Drives |
| Supply | 3-phase, 380 ... 500 V |
| Frame size | R2 |
| Net weight | 8.4 kg |
| ABB product ID | 3AUA0000090434 |
| Degree of protection | IP21 |
| Dimensions (W x H x D) | 155 x 409 x 249 mm |
| Output power (normal use) | 7.5 kW |
| Output current (normal use) | 14 A |
| Output current (heavy-duty use) | 11 A |
