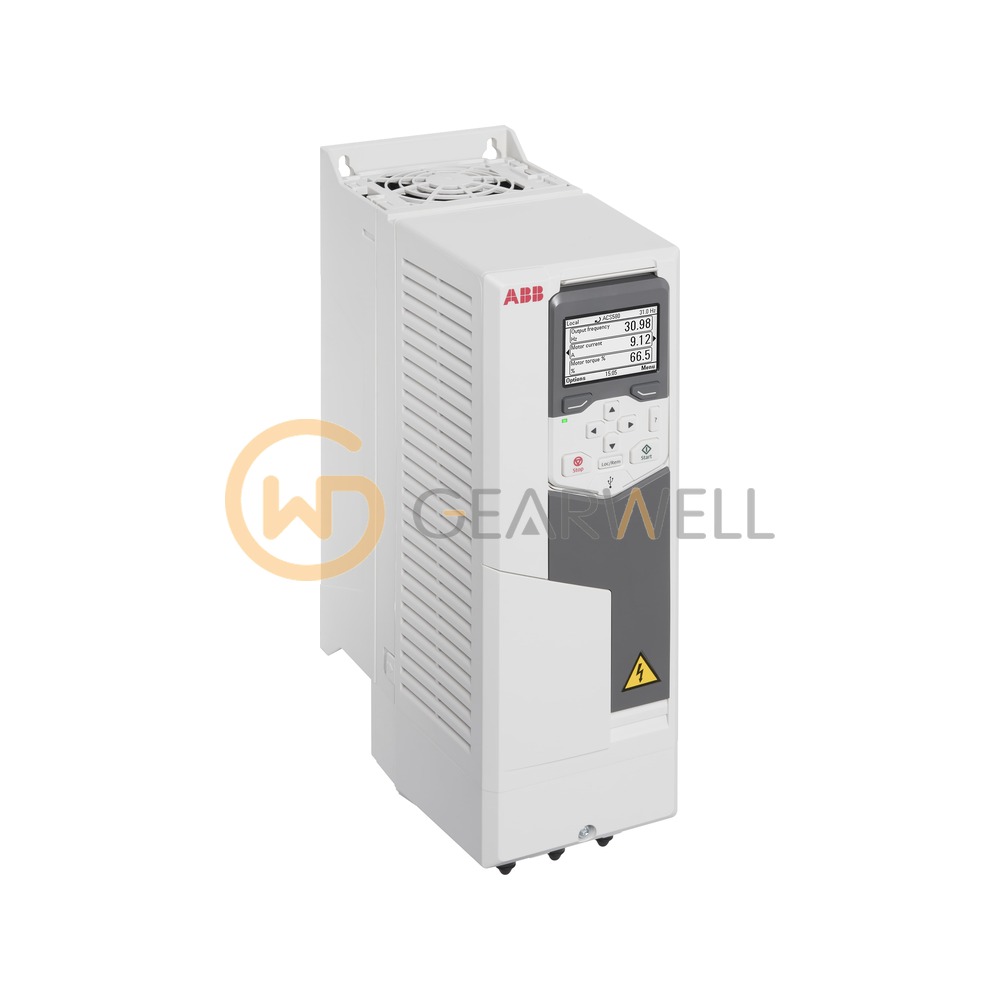

ABB ACS580-01-09A5-4 ACS580 Wall-mounted AC Drive
- Brand
- ABB
- Model
- ACS580-01-09A5-4
- GEARWELL SKU
- GWP-000007736
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R1
- Net weight
- 4.6 kg
- Product ID
- 3AXD50000038952
- Degree of protection
- IP21
- Output power (normal use)
- 4 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS580-01-09A5-4 is an ACS580-01 wall-mounted general purpose drive for 380–480 V three-phase supplies, frame R1, rated 4 kW nominal power and 3 kW in heavy-duty use at 400 V (5 hp light-duty and 3 hp heavy-duty at 480 V). ABB designs the ACS580-01 as an all-in-one drive with the EMC filter, harmonic mitigation and an assistant control panel inside, plus built-in Modbus RTU and Safe Torque Off; IP21 is standard and IP55 is option +B056.
Technical reference
| Product name | ABB ACS580-01-09A5-4 ACS580 Wall-mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS580-01-09A5-4 |
| Category | Variable Frequency Drives |
| Frame size | R1 |
| Net weight | 4.6 kg |
| Product ID | 3AXD50000038952 |
| Degree of protection | IP21 |
| Output power (normal use) | 4 kW |
| Output current (normal use) | 9.4 A |
