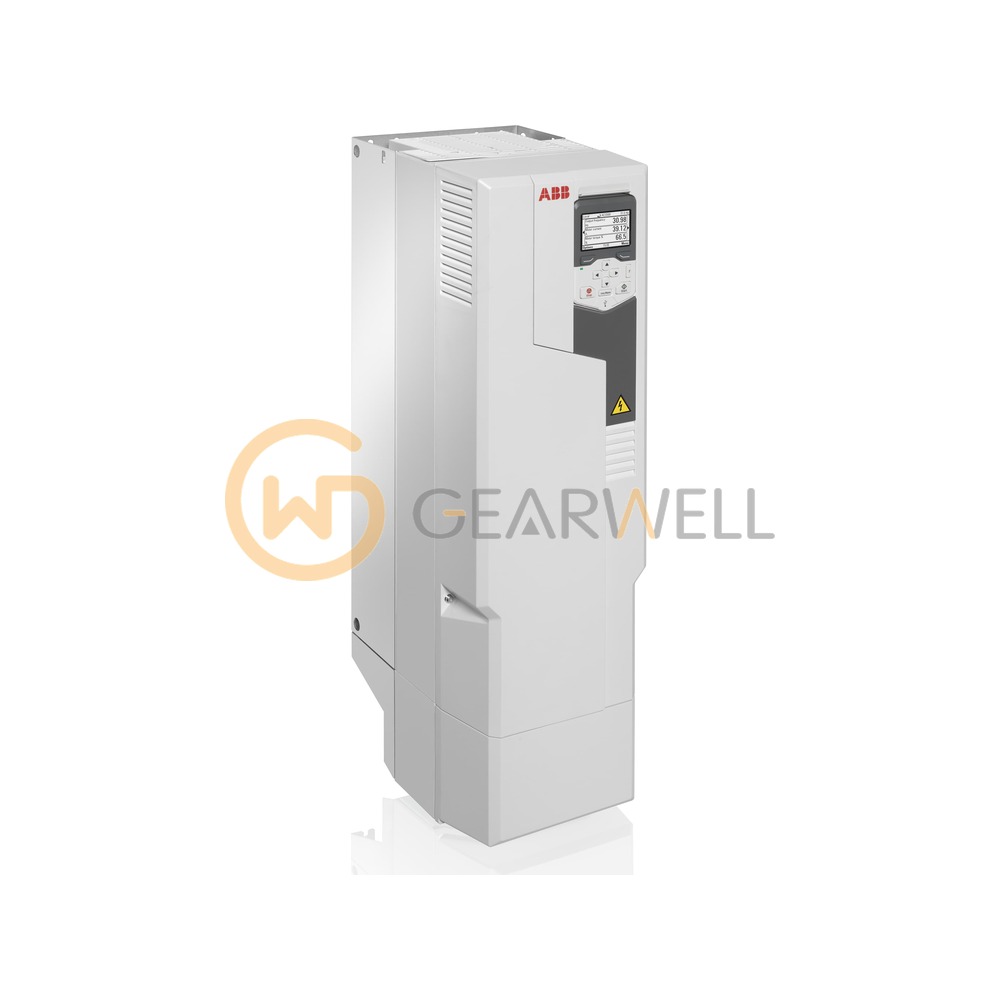

ABB ACS580-01-088A-4 ACS580 Wall-mounted AC Drive
- Brand
- ABB
- Model
- ACS580-01-088A-4
- GEARWELL SKU
- GWP-000007741
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R5
- Net weight
- 30 kg
- Product ID
- 3ABD00045435-D
- Degree of protection
- IP21
- Dimensions (W x H x D)
- 203 x 732 x 295 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS580-01-088A-4 is an ACS580-01 wall-mounted general purpose drive for 380–480 V three-phase supplies, frame R5, rated 45 kW nominal power and 37 kW in heavy-duty use at 400 V. ABB's ACS580-01 hardware manual lists this frame R5 type; the current catalog lists ACS580-01-089A-4 (frame R4 v2) with the same 400 V power ratings. ABB designs the ACS580-01 as an all-in-one drive with the EMC filter, harmonic mitigation and an assistant control panel inside, plus built-in Modbus RTU and Safe Torque Off; IP21 is standard and IP55 is option +B056.
Technical reference
| Product name | ABB ACS580-01-088A-4 ACS580 Wall-mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS580-01-088A-4 |
| Category | Variable Frequency Drives |
| Frame size | R5 |
| Net weight | 30 kg |
| Product ID | 3ABD00045435-D |
| Degree of protection | IP21 |
| Dimensions (W x H x D) | 203 x 732 x 295 mm |
| Output power (normal use) | 45 kW |
| Output current (normal use) | 88 A |
