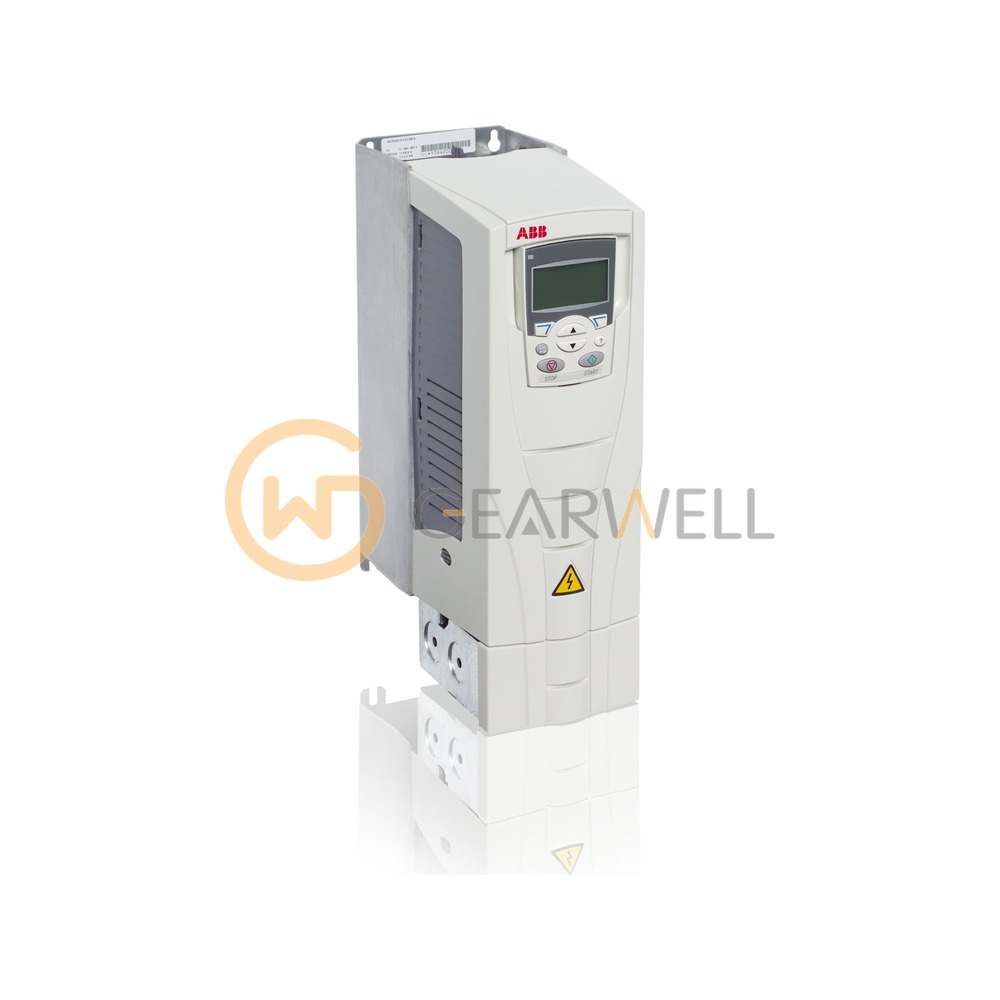

ABB ACS550-U1-012A-4 ACS550 General Purpose AC Drive
- Brand
- ABB
- Model
- ACS550-U1-012A-4
- GEARWELL SKU
- GWP-000010832
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R1
- ABB product ID
- 3AUA0000002187
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS550-U1-012A-4 is an ACS550 AC drive for 380–480 V three-phase supplies, rated 7.5 hp in normal use and 5 hp in heavy-duty use, with 11.9 A continuous output current in normal use and 8.8 A in heavy-duty use, in frame R1. The U1 in the type code means setup and parts for US installation and NEMA compliance. The standard enclosure is IP21 / UL Type 1, with IP54 / UL Type 12 available as option +B055, and control panels and fieldbus adapters are added as plus codes. A brake chopper is built in as standard in frames R1 and R2, which includes this drive.
Technical reference
| Product name | ABB ACS550-U1-012A-4 ACS550 General Purpose AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS550-U1-012A-4 |
| Category | Variable Frequency Drives |
| Frame size | R1 |
| ABB product ID | 3AUA0000002187 |
