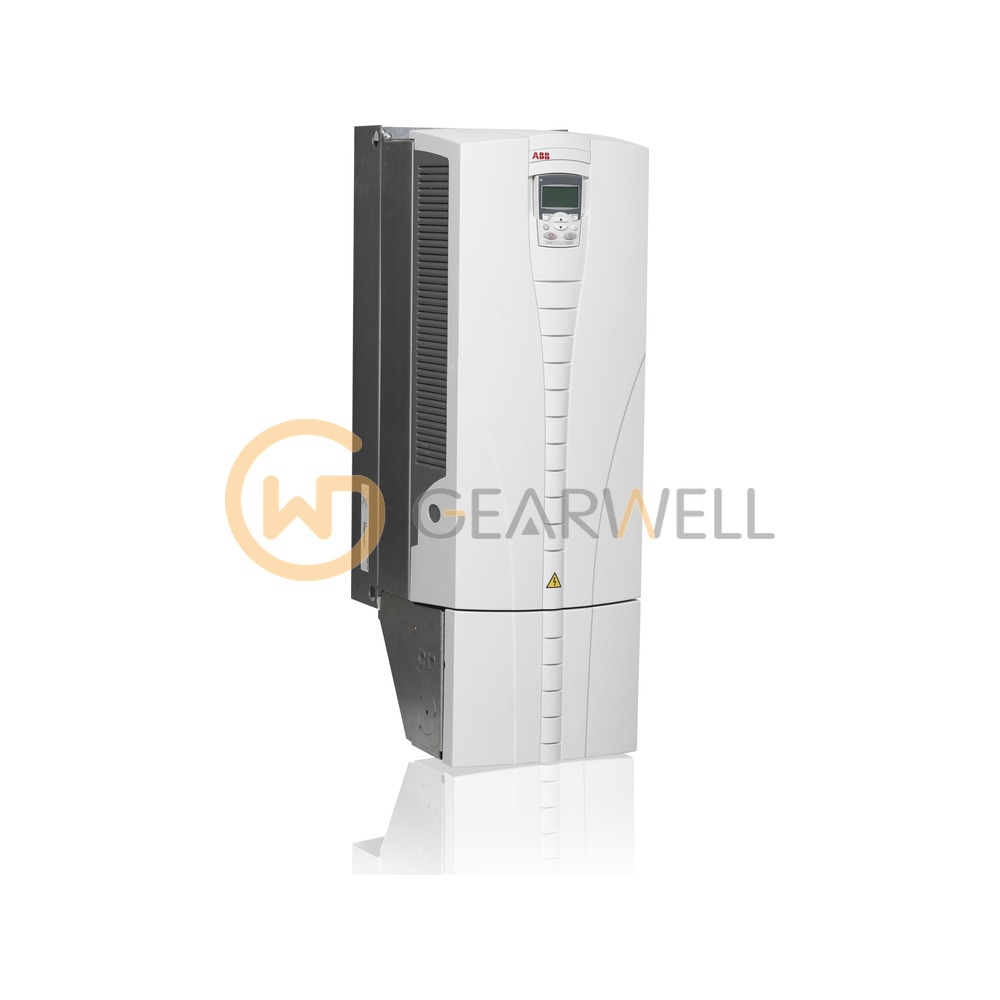

ABB ACS550-01-195A-4 ACS550 Wall-mounted AC Drive
- Brand
- ABB
- Model
- ACS550-01-195A-4
- GEARWELL SKU
- GWP-000007731
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R6
- Net weight
- 76 kg
- Product ID
- 3ABD68294479
- Degree of protection
- IP21
- Output power (normal use)
- 110 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS550-01-195A-4 is an ACS550 AC drive for 380–480 V three-phase supplies, rated 110 kW in normal use and 90 kW in heavy-duty use, with 205 A continuous output current in normal use and 162 A in heavy-duty use, in frame R6. The 01 in the type code means setup and parts for IEC installation and compliance. The standard enclosure is IP21 / UL Type 1, with IP54 / UL Type 12 available as option +B055, and control panels and fieldbus adapters are added as plus codes.
Technical reference
| Product name | ABB ACS550-01-195A-4 ACS550 Wall-mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS550-01-195A-4 |
| Category | Variable Frequency Drives |
| Frame size | R6 |
| Net weight | 76 kg |
| Product ID | 3ABD68294479 |
| Degree of protection | IP21 |
| Output power (normal use) | 110 kW |
