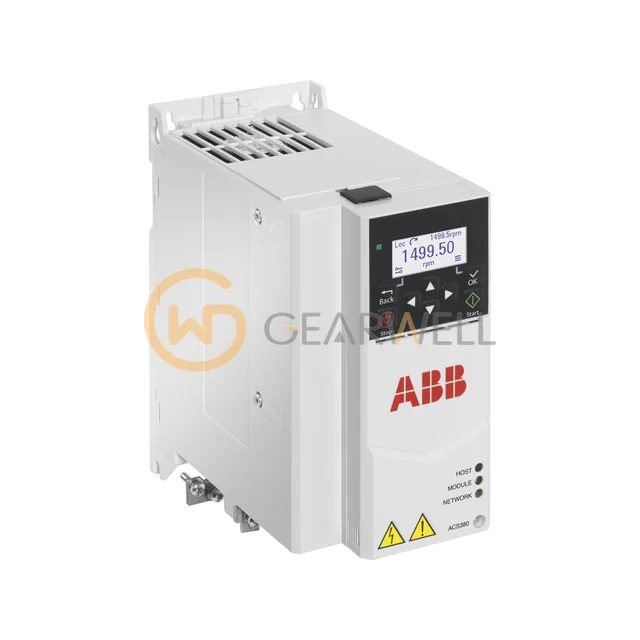

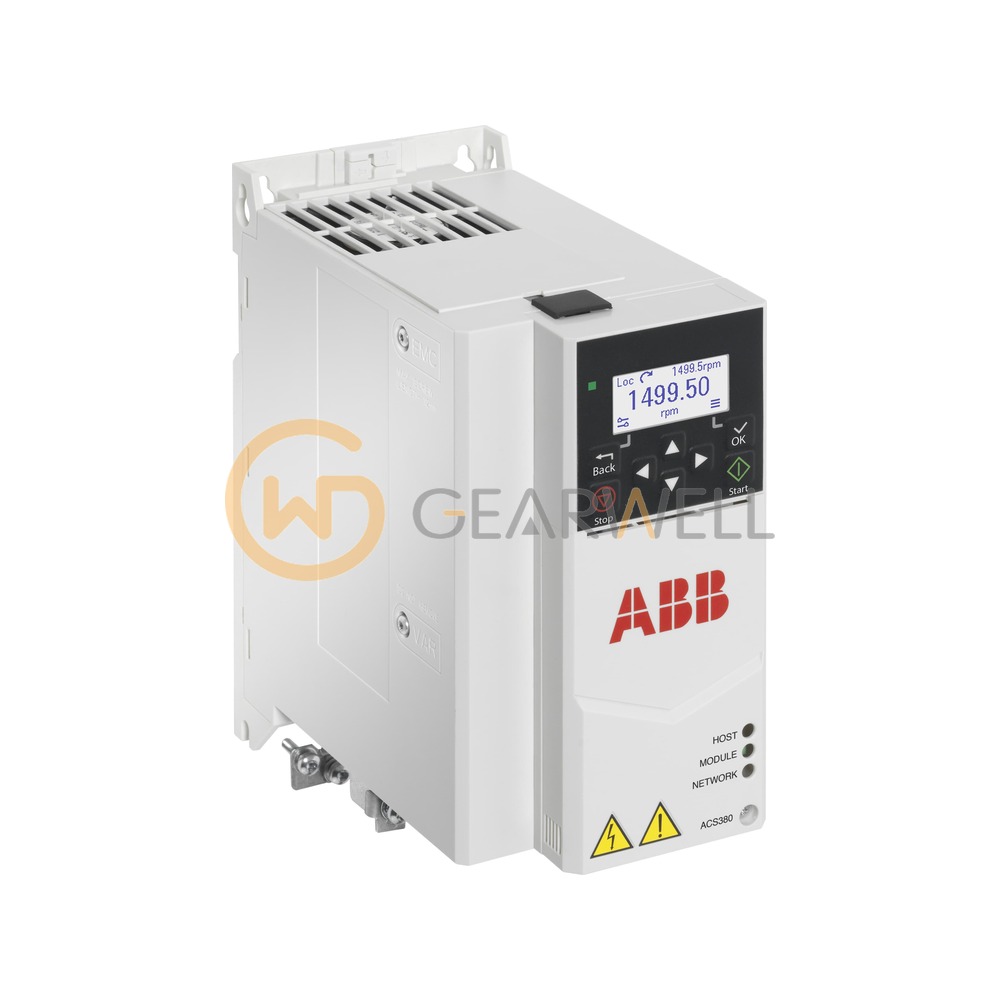

ABB ACS380-040S-09A8-1 ACS380 Machinery Drive Module
- Brand
- ABB
- Model
- ACS380-040S-09A8-1
- GEARWELL SKU
- GWP-000011475
- Category
- Variable Frequency Drives
Key specifications
- I/O
- AI 2, AO 1, DI/DO 5 / 2
- Supply
- 1-phase, 200 ... 240 V
- Frame size
- R2
- Net weight
- 2.0 kg
- ABB product ID
- 3AXD50000031877
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS380-040S-09A8-1 is an ACS380 machinery drive for single-phase 200–240 V supplies, rated 2.2 kW in nominal and light-duty use and 1.5 kW in heavy-duty use, with 9.8 A nominal output current, in frame R2. In the type code, 04 is the module construction for cabinet installation (IP20), 0 is the low EMC filtering level (no internal EMC filter on this voltage) and S is the standard variant with the BMIO-01 I/O and Modbus module. ABB designs the ACS380 to control induction motors, permanent magnet synchronous motors and ABB SynRM motors, and the basic module includes Safe torque off, a brake chopper and coated boards.
Technical reference
| Product name | ABB ACS380-040S-09A8-1 ACS380 Machinery Drive Module |
|---|---|
| Brand | ABB |
| Model | ACS380-040S-09A8-1 |
| Category | Variable Frequency Drives |
| I/O | AI 2, AO 1, DI/DO 5 / 2 |
| Supply | 1-phase, 200 ... 240 V |
| Frame size | R2 |
| Net weight | 2.0 kg |
| ABB product ID | 3AXD50000031877 |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 95 x 223 x 176 mm |
| Output power (normal use) | 2.2 kW |
| Output current (normal use) | 9.8 A |
| Output current (heavy-duty use) | 7.8 A |
