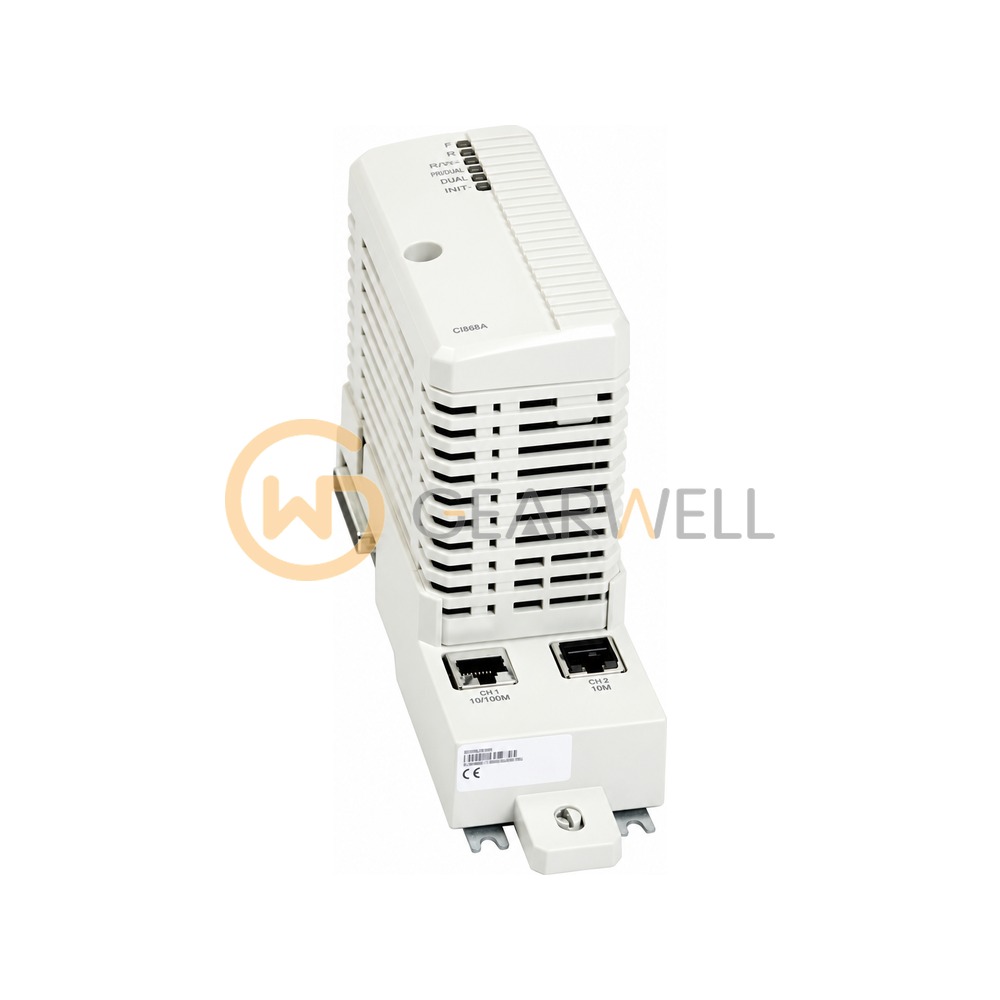

ABB 3BSE092691R1 CI868AK01 IEC 61850 Communication Interface
- Brand
- ABB
- Model
- 3BSE092691R1
- GEARWELL SKU
- GWP-000010656
- Category
- Industrial Communication
Key specifications
- Net weight
- 0.7 kg
- Package contents
- CI868A communication interface, TP867 baseplate
- Type designation
- CI868AK01
- Catalog description
- CI868AK01 IEC 61850 Interface
- Dimensions (D x H x W)
- 127.5 x 186 x 59 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 3BSE092691R1 is the CI868A IEC 61850 communication interface for the AC 800M controller CEX bus. It is a master interface with one channel at 10/100 Mbit/s, supports hot swap, can be used together with a High Integrity controller, and up to 4 can be fitted on the CEX bus. Current consumption is typ 160 mA at 24 V and it is rated IP20.
Technical reference
| Product name | ABB 3BSE092691R1 CI868AK01 IEC 61850 Communication Interface |
|---|---|
| Brand | ABB |
| Model | 3BSE092691R1 |
| Category | Industrial Communication |
| Net weight | 0.7 kg |
| Package contents | CI868A communication interface, TP867 baseplate |
| Type designation | CI868AK01 |
| Catalog description | CI868AK01 IEC 61850 Interface |
| Dimensions (D x H x W) | 127.5 x 186 x 59 mm |
