ABB 3BSE088385R1 PM857K01 AC 800M HI Processor Unit
- Brand
- ABB
- Model
- 3BSE088385R1
- GEARWELL SKU
- GWP-000007581
- Category
- PLCs & I/O
Key specifications
- Net weight
- 1.2 kg
- Type designation
- PM857K01
- Safety certification
- SIL3
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

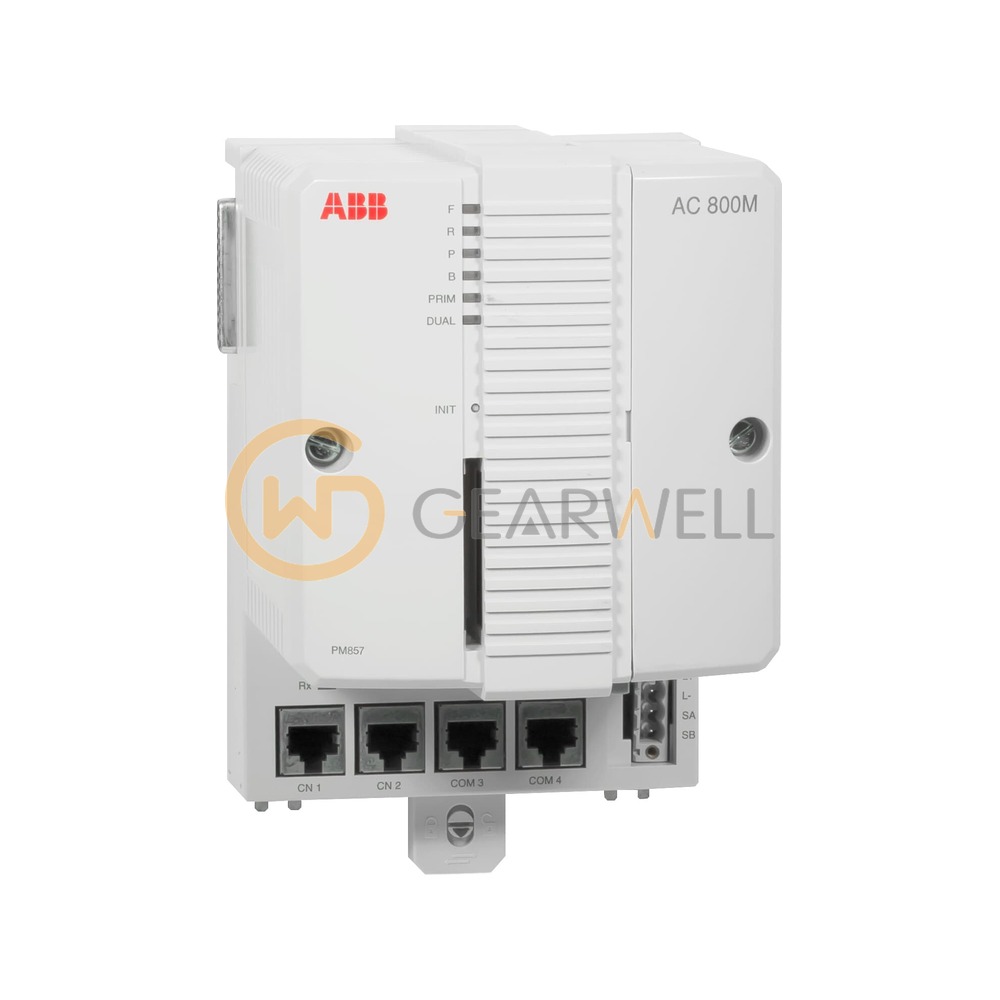

The ABB 3BSE088385R1 is the PM857K01 processor unit for the AC 800M High Integrity controller: one PM857 CPU with the required optional items. The CPU has an MPC866 processor at 96 Mhz and 32 MB RAM, carries IEC 61508 SIL3 TÜV approval, supports CPU redundancy and executes 1000 boolean operations in 0.17 ms. Power consumption is 210/360 mA typical/max at +24 V. It runs on 24 V DC (19.2-30 V DC), is rated IP20 and +5 to +55 °C operating, and has two Ethernet channels for the control network.
Technical reference
| Product name | ABB 3BSE088385R1 PM857K01 AC 800M HI Processor Unit |
|---|---|
| Brand | ABB |
| Model | 3BSE088385R1 |
| Category | PLCs & I/O |
| Net weight | 1.2 kg |
| Type designation | PM857K01 |
| Safety certification | SIL3 |
