ABB 3BSC610065R1 SD832 Power Supply 24 V DC 5 A
- Brand
- ABB
- Model
- 3BSC610065R1
- GEARWELL SKU
- GWP-000010655
- Category
- Power Supplies
Key specifications
- Output
- 24 V DC, 5 A
- Mounting
- DIN rail
- Net weight
- 0.56 kg
- Input voltage
- 100-120 / 200-240 V AC, auto-select
- Type designation
- SD832
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

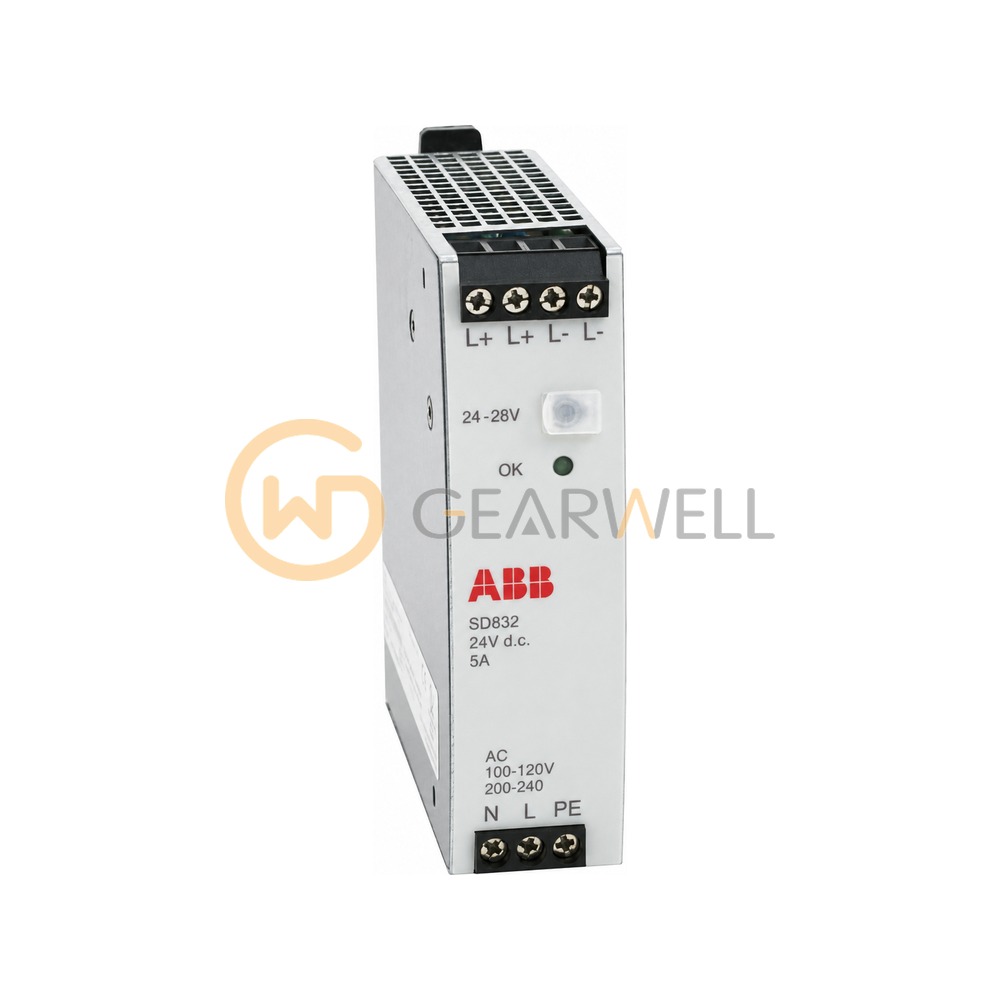

The ABB 3BSC610065R1 is the SD832 DIN-rail power supply for AC 800M and S800 I/O. It takes a.c. 100-120 or 200-240 V input and gives a regulated, low-noise d.c. 24 V output at 5 A, with over-current and over-voltage protection, a soft start and an output-OK LED. It is Class I equipment for over-voltage category III mains, accepted for SELV and PELV applications, and rated IP20.
Technical reference
| Product name | ABB 3BSC610065R1 SD832 Power Supply 24 V DC 5 A |
|---|---|
| Brand | ABB |
| Model | 3BSC610065R1 |
| Category | Power Supplies |
| Output | 24 V DC, 5 A |
| Mounting | DIN rail |
| Net weight | 0.56 kg |
| Input voltage | 100-120 / 200-240 V AC, auto-select |
| Type designation | SD832 |
| Dimensions (D x H x W) | 117 x 124 x 32 mm |
